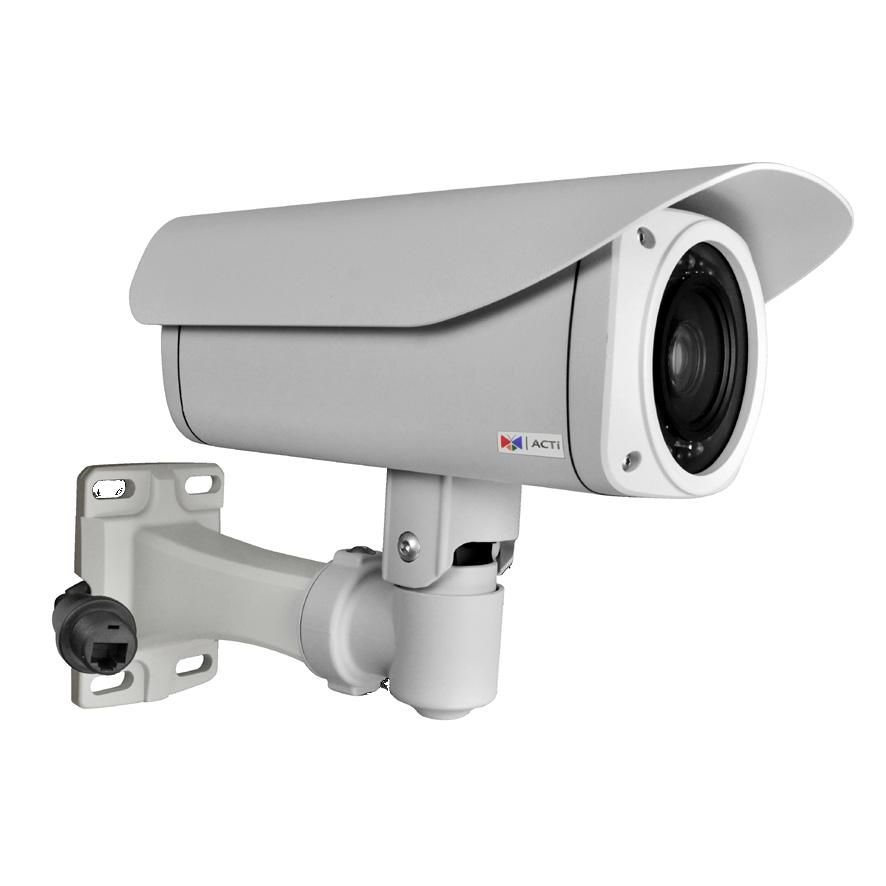

ACTi B49 3 Megapixel Outdoor Day/Night IP Bullet Camera, 10x Zoom Lens
Model No
B49
$792.45
Product Highlights
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 10x Zoom Lens with f4.9 - 49mm / F1.8 - 3.0, DC Iris, Auto Focus
- Superior WDR (110 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The B49 from ACTi is a 3MP Full HD Outdoor Day/Night IP Bullet Camera designed for superior surveillance performance. It offers high-resolution imaging with a 10x zoom lens, adaptive infrared capabilities for night vision, and robust weatherproof and vandal-proof features, making it an excellent choice for securing both indoor and outdoor environments.
ACTi B49 Camera Features
- Resolution: 3 Megapixel with 1080p for crystal clear images.
- Adaptive Night Vision: Day & Night functionality with Adaptive IR LED for enhanced visibility in low light conditions.
- Versatile Zoom: 10x Zoom Lens with f4.9 - 49mm / F1.8 - 3.0, featuring DC Iris and Auto Focus to capture detailed images from various distances.
- Wide Dynamic Range: Superior WDR (110 dB) ensures balanced exposure in challenging lighting environments.
- High Frame Rate: 30 fps at 1920 x 1080 for smooth video playback and recording.
- Durability: Weatherproof (IP67) and Vandal Proof Metal Casing (IK10) guarantee longevity and reliability in adverse conditions.
ACTi B49 Detailed Specifications
| Camera Type | 3 Megapixel Outdoor Day/Night IP Bullet Camera |
| Resolution | 1080p (1920 x 1080) |
| Lens | 10x Zoom Lens (f4.9 - 49mm / F1.8 - 3.0) |
| Night Vision | Adaptive IR LED |
| Frame Rate | 30 fps |
| Weather Resistance | IP67 |
| Vandal Resistance | IK10 (Vandal Proof Metal Casing) |
| Wide Dynamic Range | 110 dB |
SKU  | B49 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 10X |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 122.40 mm x 223.70 mm x 317.03 mm (4.82" x 8.81" x 12.48") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| Image Pixels-Effective | 2048 (H) x 1536 (V) (3.15 MP) |
| IR LEDs | 27 LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux at F1.8 (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | PoE: 6.72 W (heater off and IR LED on), 12vDC: 5.52 W (heater off and IR LED on) |
| Privacy Zone | Up to 17 preset points including home position with up to 4 configurable regions for each Zoom position |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P |
| S/N Ratio | 52 dB |
| Weatherproof | IP67 |
| Automatic White Balance | automatic, hold and manual |
| IR Distance | 43.7 meter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
