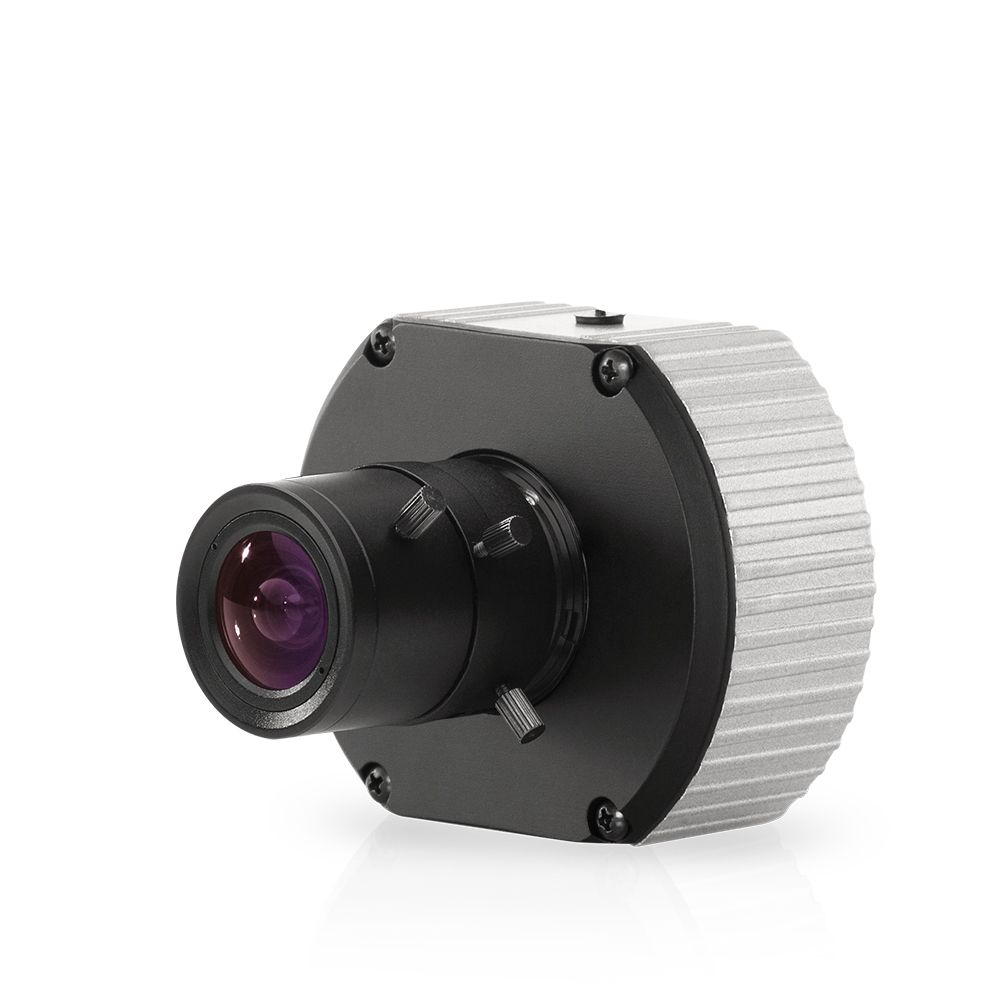

Arecont Vision AV5115DNv1 5 Megapixel Network Indoor Box Camera
SKU
AV5115DNv1
Model No
AV5115DNv1
$476.00
Product Highlights
- Superior Low Light Performance: 1/2.5†CMOS Sensor
- Dual Encoder H.264 (MPEG Part 10) and MJPEG
- Fastest MegaPixel Image Rates 14fps
- PSIA Compliance
- Extended Motion Detection Grid and Privacy Mask
Speak to an expert
Introducing the Arecont Vision AV5115DNv1 5 Megapixel Network Indoor Box Camera, designed for high-definition surveillance with superior low-light performance. This compact camera features 14 frames per second recording capability, dual encoding options, and versatile power solutions, making it perfect for a wide range of indoor applications.
Arecont Vision AV5115DNv1 Camera Features
- Superior Low Light Performance: Optimized 1/2.5” CMOS sensor enhances visibility in low light conditions.
- Dual Encoder: Offers both H.264 (MPEG Part 10) and MJPEG formats for flexibility in video quality and compression.
- Fast Frame Rate: Achieves 14fps with 5 Megapixel resolution, ensuring smooth video playback.
- PSIA Compliance: Ensures compatibility with various video management systems for easy integration.
- Enhanced Motion Detection: Features extended grid and privacy mask options to enhance security monitoring.
- Multi-Streaming: Allows simultaneous video streams with bit rate control for optimized performance.
- Forensic Zooming: Enables users to zoom in on important details without sacrificing image quality.
- Cost Efficiency: Designed to address the budget-conscious H.264 market without compromising on quality.
- Compact Design: Small footprint makes it easy to fit into any indoor environment.
- Power Options: Supports PoE and auxiliary power (12-48 VDC / 24 VAC) for versatile installation.
- Binning Mode: Increases low-light performance by combining pixels for enhanced sensitivity.
Detailed Specifications for Arecont Vision AV5115DNv1
| Camera Type | 5 Megapixel Network Indoor Box Camera |
| Resolution | 2592 x 1944 |
| Frame Rate | 14 fps |
| Sensor Type | 1/2.5” CMOS |
| Video Compression | H.264, MJPEG |
| Power Supply | 12VDC/24VAC/PoE |
| Dimensions | Compact Size |
| Special Features | Forensic Zooming, Multi-Streaming |
| Compliance | PSIA |
SKU  | AV5115DNv1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12-48vDC, 24vAC, PoE |
| Dimensions (W x H) | 3" W (76mm) x 2.5" H (63.5mm) x 1.25" D (31.7mm) |
| Image Device | 1/2.5" CMOS |
| Minimum Scene Illumination | 0 Lux, IR sensitive |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) |
| Power Consumption | 5.59 Watts maximum |
| Privacy Zone | 1024-Zone |
| Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP |
| S/N Ratio | 45 dB |
| Video Output | RJ-45 |
| Rotation Angle | 180° |
| Motion Detection Tracking | 1024-Zone |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
