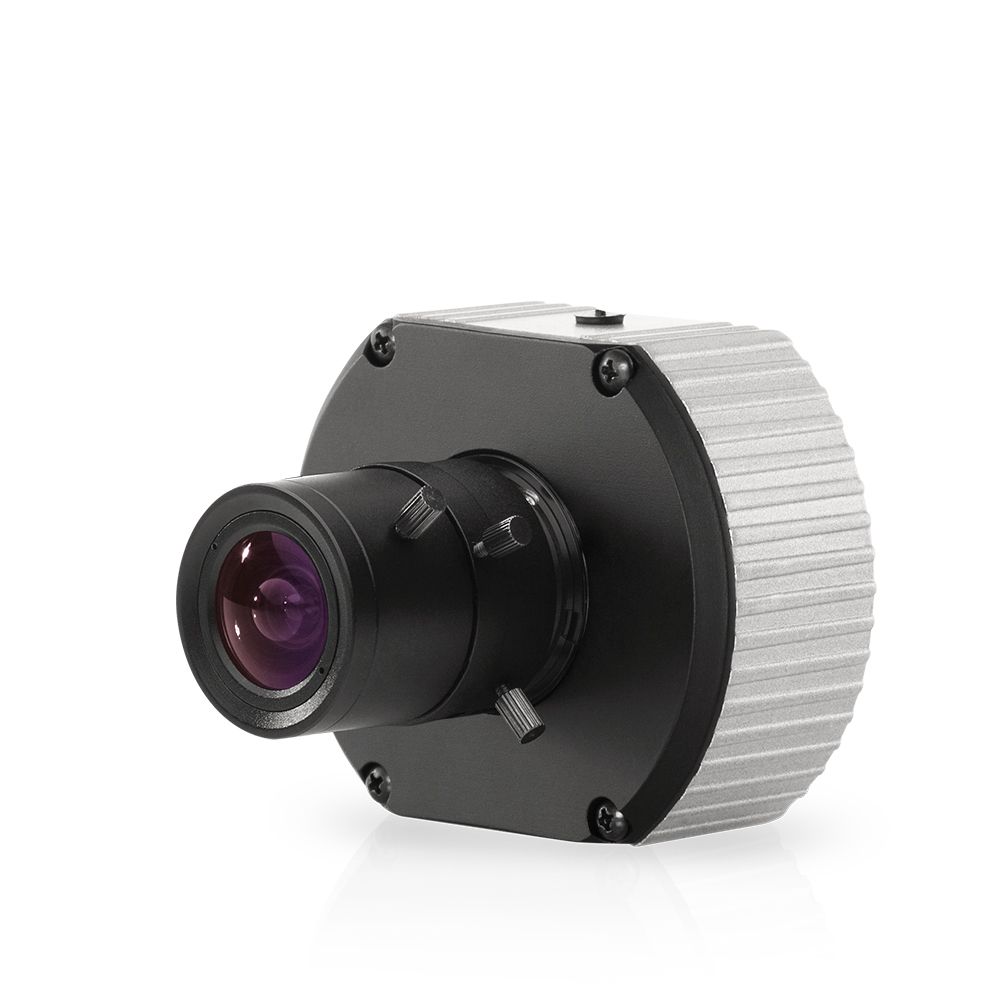

Arecont Vision AV3115DNv1 3 Megapixel Network Indoor Box Camera

SKU
AV3115DNv1
Model No
AV3115DNv1
$406.80
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Dual Encoder H.264 (MPEG Part 10) and MJPEG
  • Fastest MegaPixel Image Rates 21 fps
  • PSIA Compliance
  • Forensic Zooming
  • Cost Efficiency

Discover the Arecont Vision AV3115DNv1 3 Megapixel Network Indoor Box Camera, a cutting-edge surveillance solution designed to deliver outstanding performance and flexibility for a variety of security needs. With its advanced dual encoding capabilities and high resolution, this camera ensures exceptional video quality while maintaining cost efficiency.

Arecont Vision AV3115DNv1 Camera Features

  • Dual Encoder: Provides H.264 (MPEG Part 10) and MJPEG formats, allowing for versatile streaming options tailored to different bandwidth requirements.
  • Fastest MegaPixel Image Rates: Achieves 21 fps at full resolution, ensuring smooth video playback and accurate movement detection.
  • PSIA Compliance: Ensures compatibility with a range of security systems, facilitating seamless integration and interoperability.
  • Extended Motion Detection Grid: Features advanced motion detection capabilities and privacy masking for enhanced surveillance precision.
  • Multi-Streaming: Offers multiple streams, bit rate control, and flexible cropping to optimize bandwidth usage and focus on key areas.
  • Forensic Zooming: Allows users to zoom in on crucial details in high-resolution imagery without losing quality, critical for investigations.
  • Cost Efficiency: Designed to address the needs of budget-conscious surveillance applications without compromising on quality.
  • Compact Package: Easy to install and integrate in various environments, maximizing installation flexibility.
  • Power over Ethernet (PoE): Supports PoE and auxiliary power options (12-48 VDC / 24 VAC), simplifying installation and reducing infrastructure costs.
  • Binned Mode: Enhances low light performance, ensuring clear image capture in challenging lighting conditions.
  • Affordable for H.264 Market: Specifically targeted to meet the demands of cost-sensitive deployments while offering top-tier performance.

Arecont Vision AV3115DNv1 Detailed Specifications

Camera TypeNetwork Indoor Box Camera
Megapixels3 Megapixel
Resolution2048x1536
Frame Rate21 fps
Image FormatH.264/MJPEG
Night ModeMotorized IR Cut Filter
PowerPoE & Auxiliary Power: 12-48 VDC / 24 VAC
DimensionsCompact
Special FeaturesBinned Mode, Forensic Zooming, Extended Motion Detection Grid
SKU  AV3115DNv1
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    3 Megapixel
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12-48vDC, 24vAC, PoE
Dimensions (W x H)  3" W (76mm) x 2.5" H (63.5mm) x 1.25" D (31.7mm)
Image Device    1/2.5" CMOS
Minimum Scene Illumination  0 Lux, IR sensitive
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -5°C (23°F) to +50°C (122°F)
Power Consumption  5.59 Watts maximum
Privacy Zone    1024-Zone
Protocols  RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP
S/N Ratio  45 dB
Video Output    RJ-45
Rotation Angle180°
Motion Detection Tracking    1024-Zone
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
ONVIF  Yes
