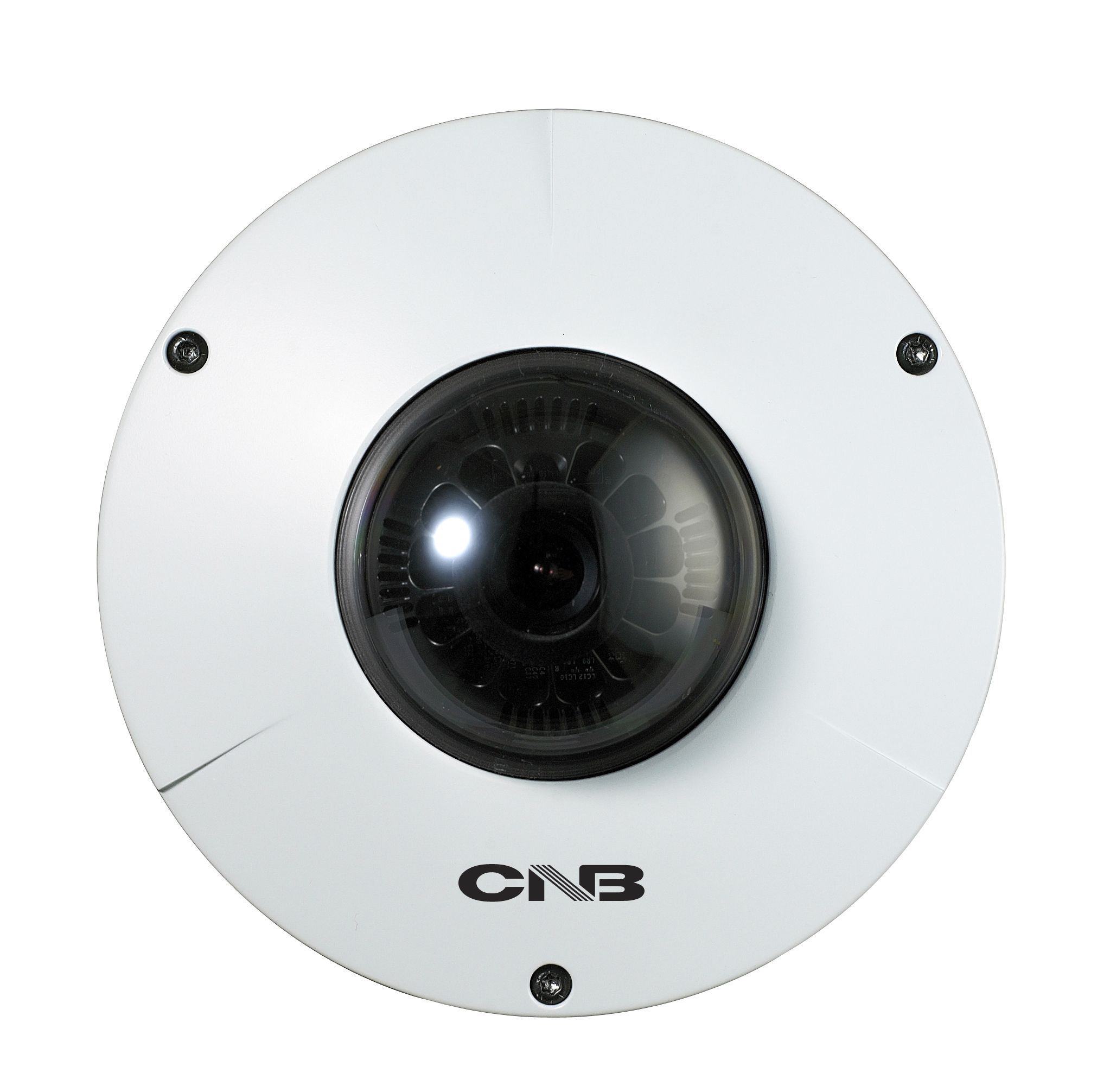

CNB AV21-0CH HD-TVI 2MP Pancake Camera
SKU
AV21-0CH
Model No
AV21-0CH
$74.24
Product Highlights
- HD ”-TVI 2M Pancake Camera
- 1/3” Progressive scan CMOS Sensor
- HD-TVI (2M 1920 × 1080P)
- DNR (Digital Noise Reduction)
- Dark Hunter ( × 32)
Speak to an expert
The CNB AV21-0CH HD-TVI 2MP Pancake Camera delivers exceptional video quality and advanced features for enhanced surveillance capabilities. Its compact design integrates seamlessly into any environment while providing high-definition imaging and reliable performance with IP66 weather resistance.
CNB AV21-0CH Camera Features
- HD-TVI 2M Pancake Camera: Offers crisp 1920x1080P resolution for clear video monitoring.
- 1/3” Progressive Scan CMOS Sensor: Ensures high-quality imaging with accurate color reproduction even in varying light conditions.
- DNR (Digital Noise Reduction): Reduces image noise for improved clarity in low-light environments.
- Dark Hunter (×32): Enhances sensitivity in low-light scenarios, ensuring visibility in dark conditions.
- Digital Zoom (×12): Allows for close-up monitoring without losing image quality.
- BLC (Backlight Compensation): Improves image performance when capturing scenes with strong backlight.
- MIRROR (Horizontal): Facilitates flexible camera placement by flipping the image as needed.
- DEFOG: Improves visibility in foggy conditions, enhancing overall scene clarity.
- IP66 Weatherproof Housing: Ensures durability and protection against harsh environmental conditions, making it ideal for outdoor use.
CNB AV21-0CH Detailed Camera Specifications
| Camera Type | HD-TVI Pancake Camera |
| Resolution | 1920x1080P (2MP) |
| Sensor Type | 1/3” Progressive Scan CMOS |
| DNR | Yes |
| Dark Hunter | ×32 |
| Digital Zoom | ×12 |
| Backlight Compensation | Yes |
| MIRROR Function | Horizontal |
| DEFOG Function | Yes |
| Weatherproof Rating | IP66 |
SKU  | AV21-0CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | CNB |
Camera Signal  | HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | Non Infrared |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/30(25) ~ 1/30,000 |
| Image Device | 1/3 inch Progressive scan CMOS Sensor |
| Image Pixels-Effective | 1944 (H) x 1092(V) |
| Minimum Scene Illumination | Dark Hunter: 0.0005 Lux |
| Operating Humidity | 30% ~ 80% RH |
| Operating Temperature | -10℃ ~ 50℃ |
| Power Consumption | 210mA, 2.5W (Max) |
| Scanning System | Progressive Image Processing |
| Weatherproof | IP66 |
| Zoom Ratio | ×12 |
| Synchronization | Internal Sync |
| Automatic White Balance | ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
