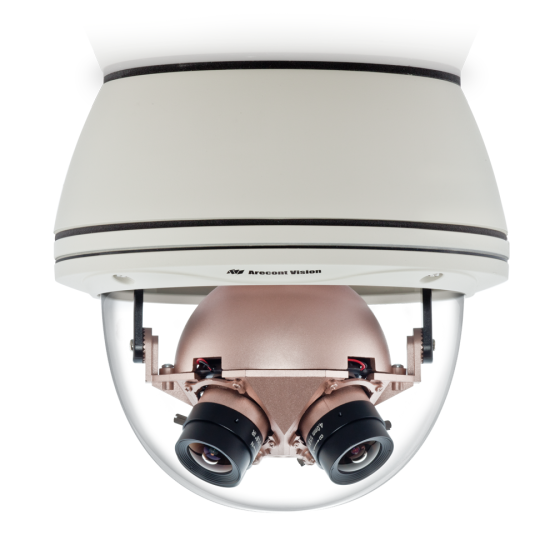

Arecont Vision AV20365DN-HB 20 Megapixel 360° Panoramic IP Camera
SKU
AV20365DN-HB
Model No
AV20365DN-HB
$1,734.88
Product Highlights
- Industry's First 20MP Panoramic Megapixel Camera
- Dual Encoder H.264/MJPEG
- Indoor/Outdoor IP66, Vandal Resistant and IK-10 Rated Dome
- Reduced Overall System Cost
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
Speak to an expert
Arecont Vision AV20365DN-HB 20 Megapixel Day/Night H.264/MJPEG 360 degree Camera, 10240x1920, 4 x 3.5mm MP Lens, Surface/hard-ceiling mount, Indoor/Outdoor, IP66. The AV20365 SurroundVideo® series network camera is a dual encoder (H.264 & MJPEG), 20 Megapixel resolution, IP addressable 360 degree panoramic IP camera. The AV20365 SurroundVideo® camera line provides an all-in-one solution with integrated four high sensitivity 5 megapixel sensors, 3.5mm lens, vandal resistant dome enclosure with rated IP66 for water and dust protection, and optional heater/blower. Using MegaVideo® technology, these cameras offer bandwidth and storage efficiency of up to 10X on average over traditional megapixel counterparts.
Arecont Vision AV20365DN-HB Camera Features
- Industry's First 20MP Panoramic Megapixel Camera: Provides exceptional image quality and detail for comprehensive surveillance coverage.
- Dual Encoder H.264/MJPEG: Offers flexibility in video compression formats, ensuring compatibility with various systems and optimal performance.
- Indoor/Outdoor IP66, Vandal Resistant and IK-10 Rated Dome: Ensures durability in harsh environments, protecting against vandalism and the elements.
- Reduced Overall System Cost: Maximizes budget efficiency due to advanced technology reducing the need for additional cameras.
- Easily adjustable 2-axis camera gimbal: Allows for quick and precise positioning, enhancing installation convenience and coverage.
- +/- 10° Mechanical Tilt Adjustment: Facilitates fine-tuning of each sensor's angle for optimized viewing.
- Bit Rate Control, Privacy Mask, and Multi-Streaming: Provides control over video quality and privacy features, catering to diverse surveillance needs.
- Forensic Zooming: Enhances the ability to extract fine details from video, crucial for security investigations.
- PoE and Auxiliary Power: Supports flexible power options with both Power over Ethernet and additional power supply capabilities.
- Complete Mounting Options: Offers a variety of mounting solutions to suit different installation scenarios.
Arecont Vision AV20365DN-HB Detailed Specifications
| Camera Type | 360° Panoramic IP Camera |
| Resolution | 20 Megapixels (10240x1920) |
| Lenses | 4 x 3.5mm MP Lens |
| Encoder Type | Dual Codec: H.264 & MJPEG |
| Mounting Type | Surface/Hard-Ceiling Mount |
| Environmental Rating | IP66 (Water and Dust Resistant) |
| Operational Modes | Indoor/Outdoor Use |
| Power Supply | 12–48V DC / 24V AC (PoE capable) |
| Dimensions | Compacted for subtle installations |
| Weight | Lightweight design for easy handling |
SKU  | AV20365DN-HB |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 20 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12-48vDC, 24vAC, PoE |
| Dimensions (W x H) | 6.9" (175mm) x 6.55" H (166mm) |
| Image Device | 1/2.5" CMOS |
| Minimum Scene Illumination | 0 Lux, IR sensitive |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Power Consumption | 9 Watts DC Power |
| Privacy Zone | 1024 detection zones |
| Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP |
| S/N Ratio | 44.1 dB |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Motion Detection Tracking | 1024 detection zones |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
