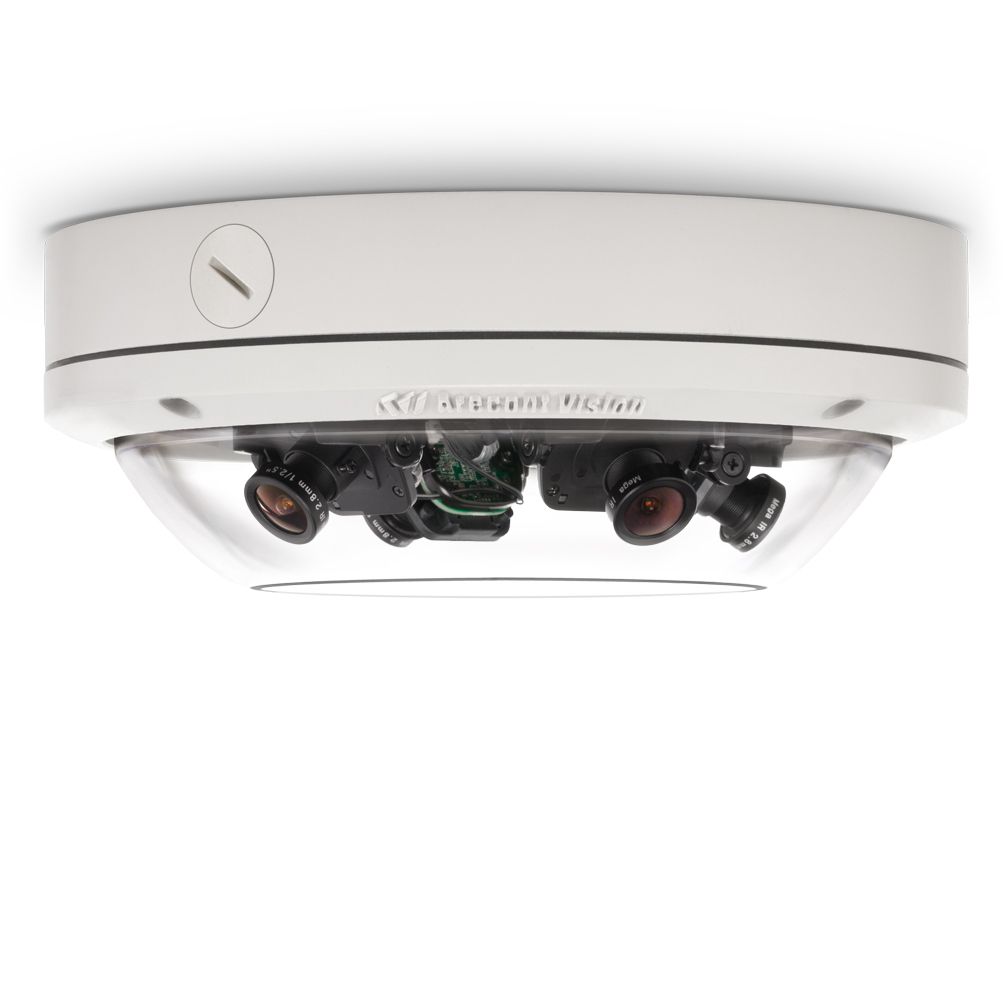

Delivering revolutionary flexibility, Arecont Vision SurroundVideo® Omni multi-sensor multi-megapixel cameras provide ample resolution to zoom-in for details in live and recorded video. Arecont Vision integrates up to four imagers, each with a choice of IR corrected lens, into an IP66 rated / IK-10 impact resistant dome housing. A unique track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270-degree view at the corner of a building. SurroundVideo Omni cameras are available in total resolutions of 12-megapixels (MP) WDR or 20MP, all with fast frame rates. 2.8mm, 4mm, 6mm, 8mm, 12mm and 16mm lens options are available. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Wide Dynamic Range (WDR) up to 100dB at full resolution is available in the 12MP model.
Arecont Vision AV20175DN-NL Camera Features
12MP WDR and 20MP Configurations: Provides high-resolution imagery for detailed surveillance.
Up to 4 Individual Camera Gimbals: Allows customization of camera angles for comprehensive coverage.
Multiple Lens Options: Versatility of 2.8mm to 16mm lenses within one camera housing allows flexibility for various installation needs.
True WDR up to 100dB: Enhances visibility in both shaded and bright areas simultaneously.
True Day/Night Functionality: Mechanical IR cut filter ensures clear images in varying light conditions.
Binning Mode: Optimizes low light performance for clearer images without excessive noise.
Forensic Zooming: Allows users to zoom in live or after recording while maintaining high-quality footage.
Fast Frame Rates: Ensures smooth video streaming for real-time monitoring.
Privacy Masking & Motion Detection: Enhances security features to protect privacy and monitor movement.
Dual Encoder H.264/MJPEG: Offers efficient compression for quality video storage.
PoE and Auxiliary Power: Flexible power options simplify installations.
Ultra Discrete, Low-Profile Housing: Blends seamlessly into various environments.
Outdoor Rated IP66 and IK-10 Housing: Ensures durability against harsh weather and physical impact.
Complete Mounting Options: Simplifies installation requirements for various settings.
Reduced Overall System Cost: Streamlines system setup for cost-efficient security solutions.
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant
Manufacturer
Arecont Vision
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
Non Infrared
Resolution
20 Megapixel
Lens Type
Not Included
Mount Type
Ceiling, Wall
Compression Method
H.264, MPEG-4, M-JPEG
Durability
Vandal Resistant, Weather Resistant
Voltage
12-48vDC, 24vAC, PoE
Dimensions (W x H)
Ø 7.7" (196mm) x 3.1" H (78.5mm)
Image Device
1/2.5" CMOS
Minimum Scene Illumination
Color: 0.3 Lux, Color Binning: 0.15 Lux, Day/Night: 0 Lux, IR sensitive
