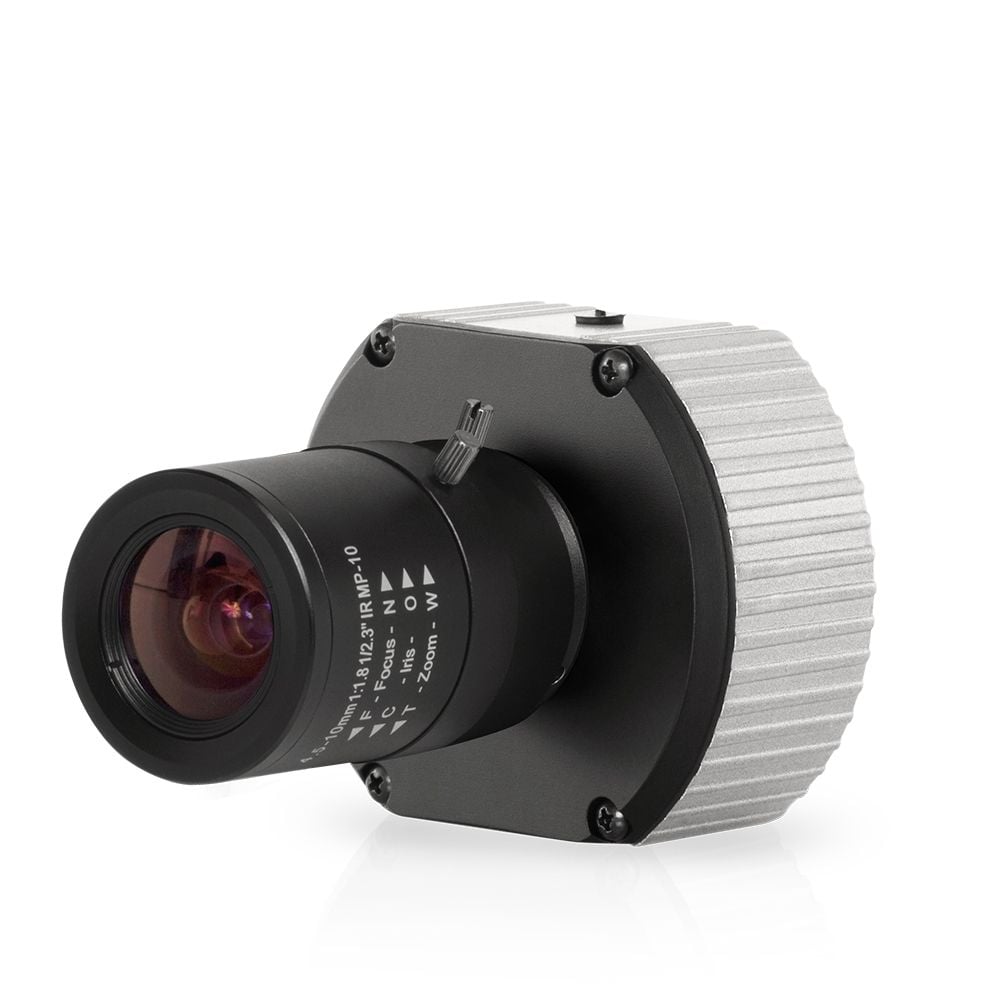

Arecont Vision AV10115v1 10 Megapixel Network Indoor Box Camera

SKU
AV10115v1
Model No
AV10115v1
$741.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Unparalleled High Definition Resolution - 3648 x 2752
  • Dual Encoder H.264 (MPEG Part 10) and MJPEG
  • Fast MegaPixel Image Rates 7fps @ 10MP & 32fps @ 1080p
  • PSIA Compliance
  • Privacy Mask

Introducing the Arecont Vision AV10115v1, a 10 Megapixel Network Indoor Box Camera offering outstanding resolution and performance. With dual mode capabilities and advanced H.264/MJPEG encoding, this compact camera is designed for unparalleled image quality and flexibility in various surveillance applications.

Arecont Vision AV10115v1 Camera Features

  • Unparalleled High Definition Resolution: Achieve stunning clarity with a resolution of 3648 x 2752 for detailed imaging.
  • Dual Encoder Technology: Supports both H.264 and MJPEG formats for versatile streaming and recording options.
  • Fast MegaPixel Image Rates: Capture sharp images at 7fps in 10MP mode and 32fps in 1080p mode, ensuring smooth video playback.
  • PSIA Compliance: Easily integrates with existing security systems for enhanced compatibility.
  • Privacy Mask: Protect sensitive areas by obscuring designated zones in the camera’s field of view.
  • Extended Motion Detection Grid: Allows for customizable detection areas, improving security response times.
  • Flexible Cropping: Adjust the field of view effortlessly, perfect for tailored surveillance needs.
  • Bit Rate Control: Optimize bandwidth usage without sacrificing image quality.
  • Multi-Streaming Capability: Stream multiple video feeds simultaneously for comprehensive coverage.
  • Forensic Zooming: Zoom in on recorded footage without losing detail, crucial for investigations.
  • Cost Efficiency: Reduces long-term surveillance costs through its advanced features and efficiency.
  • PoE & Auxiliary Power: Supports power over Ethernet and various power inputs for installation flexibility.
  • Compact Size: Designed for easy integration into various settings without consuming much space.
  • Binned Mode: Enhances performance in low-light conditions, ensuring clear images even in challenging environments.
  • Dual Mode Operation: Choose between 10MP or 1080p Full HD modes for the best fit for your needs.

Arecont Vision AV10115v1 Detailed Specifications

FeatureDetails
Resolution3648 x 2752 / 1920 x 1080
Frame Rate7 fps @ 10MP / 32 fps @ 1080p
Video CompressionDual Mode H.264 / MJPEG
Power Supply12-48 VDC / 24 VAC (PoE)
DimensionsCompact size for easy installation
Status IndicatorIntegrated LED for power indication
EnvironmentIndoor use
SKU  AV10115v1
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    10 Megapixel
Lens Type    Not Included
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12-48vDC, 24vAC, PoE
Dimensions (W x H)  3" W (76mm) x 2.5" H (63.5mm) x 1.25" D (31.7mm)
Image Device    1/2.3" CMOS
Minimum Scene Illumination  0.21 Lux @ F1.4
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -5°C (23°F) to +50°C (122°F)
Power Consumption  5.4 Watts maximum
Privacy Zone    1024-Zone
Protocols  RTSP, RTP/TCP, RTP/UDP (Unicast/Multicast), HTTP, DHCP, TFTP
S/N Ratio  40dB
Video Output    RJ-45
Rotation Angle180°
Motion Detection Tracking    1024-Zone
Auto Gain Control    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
ONVIF  Yes
