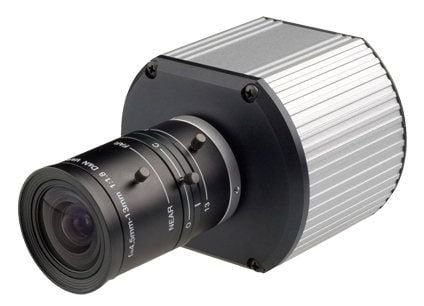

Arecont Vision AV10005DN 10 Megapixel Network Indoor Box Camera

SKU
AV10005DN
Model No
AV10005DN
$368.05
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Unparalleled High Definition Resolution - 3648 x 2752
  • Dual Encoder H.264 (MPEG Part 10) and MJPEG
  • Fast MegaPixel Image Rates 6fps @ 10MP & 30fps @ 1080p
  • PSIA Compliance
  • Privacy Mask

The Arecont Vision AV10005DN is a cutting-edge 10 Megapixel Network Indoor Box Camera that delivers exceptional image quality and versatility for surveillance needs. With its dual mode H.264/MJPEG encoding and advanced features, it ensures superior performance in various lighting conditions, making it ideal for security applications.

Arecont Vision AV10005DN Camera Features

  • Unparalleled High Definition Resolution: Experience stunning clarity with 3648 x 2752 resolution for detailed surveillance footage.
  • Dual Encoder H.264 and MJPEG: Enjoy flexibility in video compression formats for optimal performance based on your needs.
  • Fast MegaPixel Image Rates: Capture high-speed images at 6fps @ 10MP and 30fps @ 1080p for smooth video playback.
  • PSIA Compliance: Integrates seamlessly with various video management software for enhanced compatibility.
  • Privacy Mask: Protect sensitive areas by obscuring specific parts of the video feed.
  • Extended Motion Detection Grid: Optimize motion detection capabilities across a larger area for improved security monitoring.
  • Flexible Cropping: Adjust the visible area easily to focus on key subjects without compromising quality.
  • Bit Rate Control: Manage bandwidth usage effectively, ensuring storage resources are utilized efficiently.
  • Multi-Streaming: Simultaneously stream different resolutions for varied viewing purposes without losing quality.
  • Forensic Zooming: Enhance detail on recorded images, allowing for clearer identification in critical situations.
  • Cost Efficiency: Reduces the need for multiple cameras while providing a comprehensive solution.
  • PoE & Auxiliary Power: Supports 12-48 VDC and 24 VAC, making installation more versatile.
  • Binned Mode: Increases low-light performance for better clarity during nighttime surveillance.
  • Dual Mode: Choose between 10MP or 1080p Full HD mode to suit your surveillance requirements.

Arecont Vision AV10005DN Detailed Specifications

Image Sensor10 Megapixel CMOS
Resolution3648 x 2752 / 1920 x 1080
Video CompressionH.264, MJPEG
Frame Rate6fps @ 10MP, 30fps @ 1080p
Audio SupportYes
Input Voltage12-48 VDC / 24 VAC
Power over EthernetYes
Low Light PerformanceEnhanced with Binned Mode
Digital PTZYes
DimensionsStandard Box Dimensions
SKU  AV10005DN
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    10 Megapixel
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12-48vDC, 24vAC, PoE
Dimensions (W x H)  3”W (76 mm) x 2.5”H (63.5 mm) x 2.25”D (57mm)
Image Device    1/2.3” CMOS
Minimum Scene Illumination  0 Lux, IR sensitive
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    0°C (32 °F) to +50°C (122 °F)
Power Consumption  5 Watts maximum
Protocols  TFTP, HTTP, RTSP, RTP over TCP, RTP over UDP
S/N Ratio  40 dB
Video Output    RJ-45
Rotation Angle180?
Motion Detection Tracking    64 detection zones
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
