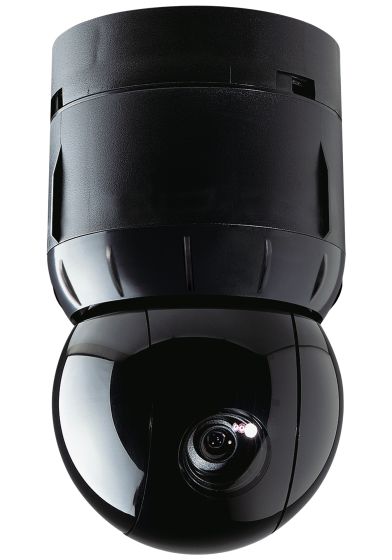

American Dynamics ADSDU8E22N 470 TVL SDU8E Color Camera Dome Module, 22X, NTSC, Black
SKU
ADSDU8E22N
Model No
ADSDU8E22N
$1,761.76
Product Highlights
- Supports additional number of third party protocols
- Continuous autofocus provides the clearest images during full range of motion
- Advanced on-screen display with titles provides the detail you need
- Supports SensorNet, RS-422, AD-UTC, Manchester and select manufacturers' Protocols
- Supports NTCIP protocol, designed specifically for the transportation market
Speak to an expert
The SpeedDome Ultra 8E 22x series delivers excellent color images in scenes as dim as .02 lux. Zoom ability consists of 22x optical and 11x digital zoom for 242x total zoom. Like the 35x series, the 22x offers advanced programmable features including DSS, automatic home position, dome usage statistics, increased number of privacy zones, advanced on-screen text, and freeze frame on presets to conserve digital recorder hard drive space. Helpful onscreen text and indicators show the direction the dome is currently pointing, as well as the direction in which it is moving.
Features
- Motion detection provides the ability to trigger multiple user-specified actions with motion tracking capabilities
- Improved privacy zones and patterns
- Supports additional number of third party protocols
- Continuous autofocus provides the clearest images during full range of motion
- Advanced on-screen display with titles provides the detail you need
- Supports SensorNet, RS-422, AD-UTC, Manchester and select manufacturers’ Protocols
- Supports NTCIP protocol, designed specifically for the transportation market
SKU  | ADSDU8E22N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Coaxitron, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking |
| Manufacturer | American Dynamics |
Camera Signal  | Analog |
| Resolution | 470 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Motorized Zoom |
| Lens Size | 22X |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling |
| Voltage | 18-30vAC |
| Electronic Shutter | 1/2 - 1/30,000 (1/1.5 - 1/30,000) |
| Image Device | 1/4-inch CCD array |
| Image Pixels-Effective | 768 x 494 (752 x 582) |
| Minimum Scene Illumination | 0.3 lux (Color) 0.02 lux (Color with 1/4 sec open shutter) |
| Operating Humidity | 0 to 95% RH (noncondensing) |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| OSD Menu | English, French, German, Italian, Spanish, Portuguese |
| Power Consumption | 11 watts |
| Privacy Zone | 16/16/8 |
| Protocols | SensorNet, Manchester, AD-UTC, NTCIP, and RS-422 |
| S/N Ratio | >50 dB (typical) |
| Scanning Horizontal | 15.734 (15.625) |
| Scanning System | 2:1 interlaced |
| Scanning Vertical | 59.9 (50) |
| Signal System | NTSC |
| Video Output | 1.0 Vp-p, 75 composite |
| Zoom Ratio | 22X |
| Synchronization | Line-Locked with Remote V-phase adjustment or Internal with Built-in sync generator |
| Automatic White Balance | Through the Lens (TTL) Automatic; Tracing White Balance (ATW) |
| Automatic White Balance | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
| Digital Zoom | Yes |
