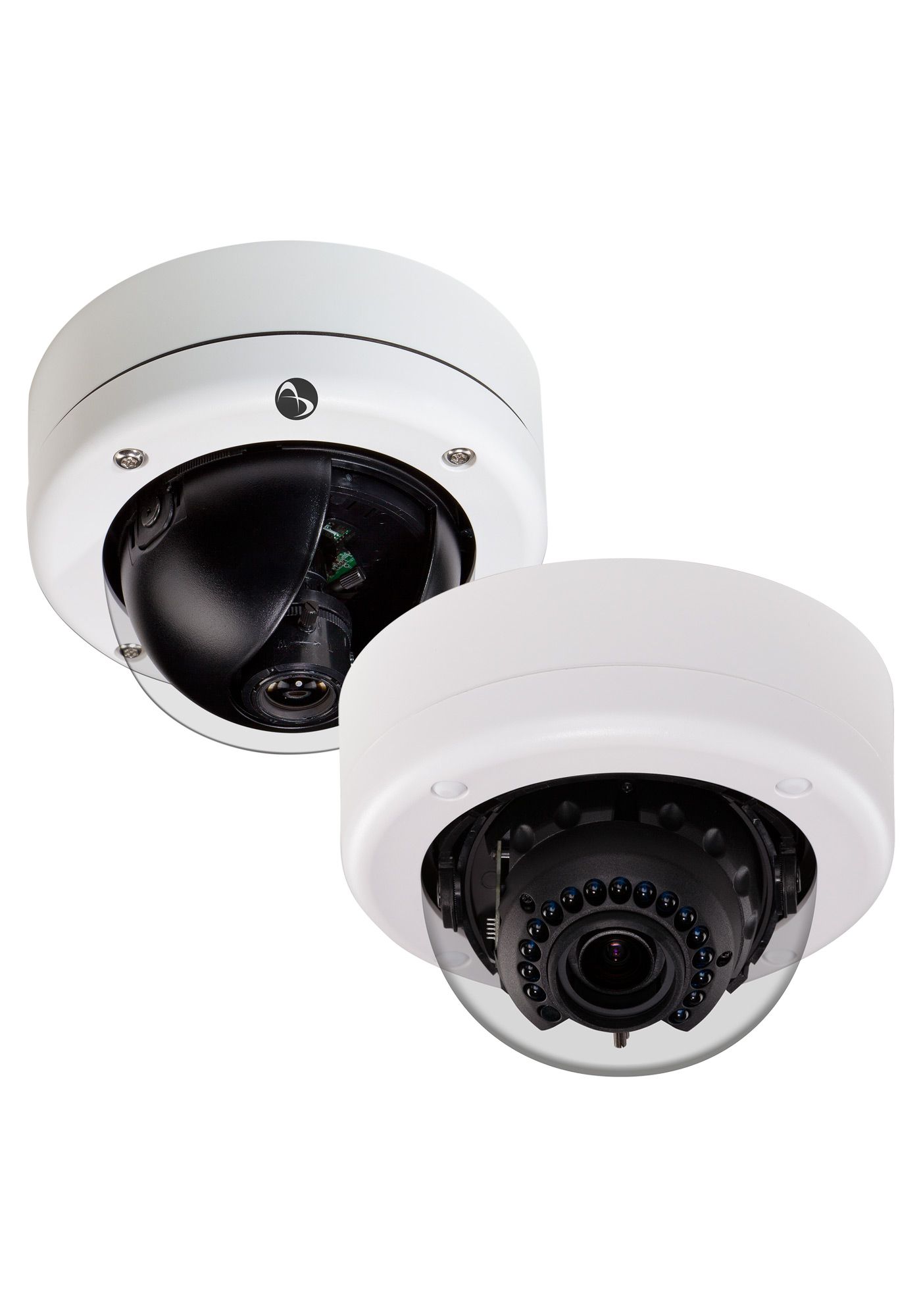

American Dynamics ADCA5DWIT3N 700TVL, Indoor Dome, 9-22mm VF Lens, NTSC
SKU
ADCA5DWIT3N
Model No
ADCA5DWIT3N
$207.92
Product Highlights
- 1/3" Sony® Effio CCD image sensor for true color reproduction
- 700TVL resolution
- 9-22mm varifocal auto iris lens
- True Day/Night (TDN) mode
- 3-axis gimbal for easy positioning
Speak to an expert
Discover the American Dynamics ADCA5DWIT3N 500 Series Mini-Dome, an indoor surveillance camera that excels in performance, ease of installation, and adaptability. Featuring a True Day/Night mode and an impressive 700 TVL resolution, this camera ensures accurate color reproduction in various lighting conditions. Utilizing advanced Sony® Effio technology, it delivers high-definition video for clear images. Its vandal-resistant design and IP66 rating guarantee durability and protection from harsh environments, making it a reliable choice for security needs.
American Dynamics ADCA5DWIT3N Camera Features
- 1/3" Sony® Effio CCD Image Sensor: Provides true color reproduction for natural, high-definition video quality.
- 700TVL Resolution: Ensures clear images, making it ideal for detailed surveillance needs.
- 9-22mm Varifocal Auto Iris Lens: Offers flexible focal length adjustments for optimal viewing angles.
- True Day/Night (TDN) Mode: Enables effective monitoring in varying light conditions, including low-light environments.
- 3-Axis Gimbal: Allows for easy repositioning to capture the best viewing angle.
- Quick-Install Adapter: Facilitates effortless ceiling or wall installation, saving time and effort.
- Service Jack: Provides a second video output for quick camera setup and maintenance.
- On-Screen Display: Simplifies the setup process, making adjustments intuitive and straightforward.
- Eight Programmable Privacy Zones: Allows users to mask specific areas for enhanced privacy control.
- 12VDC/24VAC Power Supply: Compatible power options for versatile installation environments.
Detailed Camera Specifications for American Dynamics ADCA5DWIT3N
| Image Sensor | 1/3" Sony® Effio CCD |
| Resolution | 700 TVL |
| Lens Type | 9-22mm Varifocal Auto Iris |
| Day/Night Functionality | True Day/Night (TDN) |
| Installation Type | Indoor Mini-Dome with Quick-Install Adapter |
| Gimbal Type | 3-Axis |
| Privacy Zones | Eight Programmable |
| Power Supply | 12VDC/24VAC |
| Protection Rating | IP66 |
| Low-Light Functionality | Operates in less than 0.5 lux with IR illumination |
SKU  | ADCA5DWIT3N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking |
| Manufacturer | American Dynamics |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 9-22mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/60-1/10000 (NTSC) |
| Image Device | 1/3? Sony® CCD image sensor |
| Minimum Scene Illumination | Day mode: 0.3 lux , Night mode: 0.03 lux @ F1.2 |
| Operating Humidity | 90% (non-condensing) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions (W x H) | 120.2 x 98.7 mm (4.7 x 3.9 in) |
| Power Consumption | 2.8W; 5.2W (max.) when True Day/Night on |
| Privacy Zone | Eight programmable |
| S/N Ratio | >50 dB (100 IRE, F1.2) |
| Signal System | NTSC |
| Video Output | Composite |
| Synchronization | Internal |
| Digital Noise Reduction | 2D, 3D motion adaptive (0-255) |
| Mirror | Horizontal and vertical |
| Backlight Compensation | Full range |
| Automatic White Balance | Auto, Manual, Push, Push Lock, User 1, 2, Anti CR, 2700K-9700K |
| Auto Gain Control | Auto/Manual |
| Motion Detection | 4 area (1 alarm out) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
