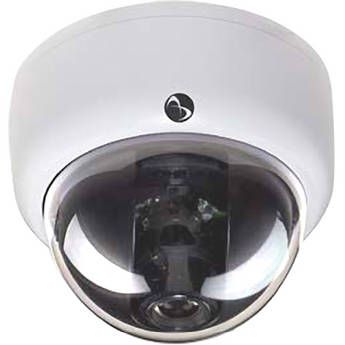

American Dynamics ADCA5DBIC3P Discover 500, 700TVL, Indoor Dome, Black, 9-22mm VF Lens, PAL
SKU
ADCA5DBIC3P
Model No
ADCA5DBIC3P
$349.95
Product Highlights
- 1/3" Sony® Effio CCD image sensor for true color reproduction
- 700 TVL resolution
- 9-22mm: F1.2 varifocal auto iris lens
- True Day/Night (TDN) mode
- 12VDC/24VAC
Speak to an expert
Discover the exceptional features of the American Dynamics ADCA5DBIC3P Discover 500 Indoor Dome Camera. This sleek black camera delivers superior image clarity with a resolution of 700 TVL, thanks to its advanced Sony® Effio technology. With easy installation and a versatile 9-22mm varifocal lens, this indoor mini-dome provides outstanding performance and flexibility while ensuring great color reproduction under diverse lighting conditions.
American Dynamics ADCA5DBIC3P Camera Features
- Image Sensor: 1/3" Sony® Effio CCD image sensor for true color reproduction, ensuring accurate color fidelity.
- Resolution: 700 TVL resolution captures crisp and clear images for detailed surveillance.
- Lens: 9-22mm F1.2 varifocal auto iris lens allows for versatile focal range adjustment, adapting to varied environments.
- True Day/Night: True Day/Night (TDN) mode enables superior performance in both day and night conditions.
- Positioning: 3-axis gimbal for easy positioning, providing flexibility in camera angle adjustments.
- Installation: Quick-install adapter designed for easy installation, simplifying wall and ceiling mounting.
- Secondary Output: Service jack with second video output facilitates camera setup without removing the camera.
- On-Screen Display: Intuitive on-screen display for easy setup and configuration of camera settings.
- Privacy Zones: Eight programmable privacy zones allow for customized surveillance and privacy protection.
- Power Supply: Operates on 12VDC/24VAC, providing flexibility in power options.
American Dynamics ADCA5DBIC3P Detailed Camera Specifications
| Image Sensor | 1/3" Sony® Effio CCD |
| Resolution | 700 TVL |
| Lens Type | 9-22mm F1.2 varifocal auto iris |
| Day/Night Mode | True Day/Night (TDN) |
| Positioning System | 3-axis gimbal |
| Installation Type | Indoor use with quick-install adapter |
| Service Jack | Yes, with second video output |
| On-Screen Display | Yes |
| Privacy Zones | Eight programmable zones |
| Power Options | 12VDC/24VAC |
SKU  | ADCA5DBIC3P |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Privacy Masking |
| Manufacturer | American Dynamics |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 9-22mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/50-1/10000 |
| Image Device | 1/3" Sony® CCD image sensor |
| Image Pixels-Effective | 976 x 582 |
| Minimum Scene Illumination | Day mode: 0.3 lux, Night mode: 0.03 lux @ F1.2 |
| Operating Humidity | 90% (non-condensing) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions (W x H) | 120.2 x 98.7 mm (4.7 x 3.9 in) |
| Power Consumption | 2.8W; 5.2W (max.) when True Day/Night on |
| Privacy Zone | Eight programmable |
| S/N Ratio | >50 dB (100 IRE, F1.2) |
| Signal System | PAL |
| Video Output | Composite |
| Synchronization | Internal |
| Digital Noise Reduction | 2D, 3D motion adaptive (0-255) |
| Mirror | Horizontal and vertical |
| Backlight Compensation | Full range |
| Automatic White Balance | Auto, Manual, Push, Push Lock, User 1, 2, Anti CR, 2700K-9700K |
| Auto Gain Control | Auto/Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
