American Dynamics ADCA3XP230 Discover 300, 600TVL, Box, SDN, 230VAC
SKU
ADCA3XP230
Model No
ADCA3XP230
$95.50
Product Highlights
- Eight privacy zones to conceal private areas
- Digital noise reduction corrects imperfections on an image
- Auto White Balance finds best settings for the clearest images
- Day/Night switching for low light conditions
- 230V (PAL)
Speak to an expert

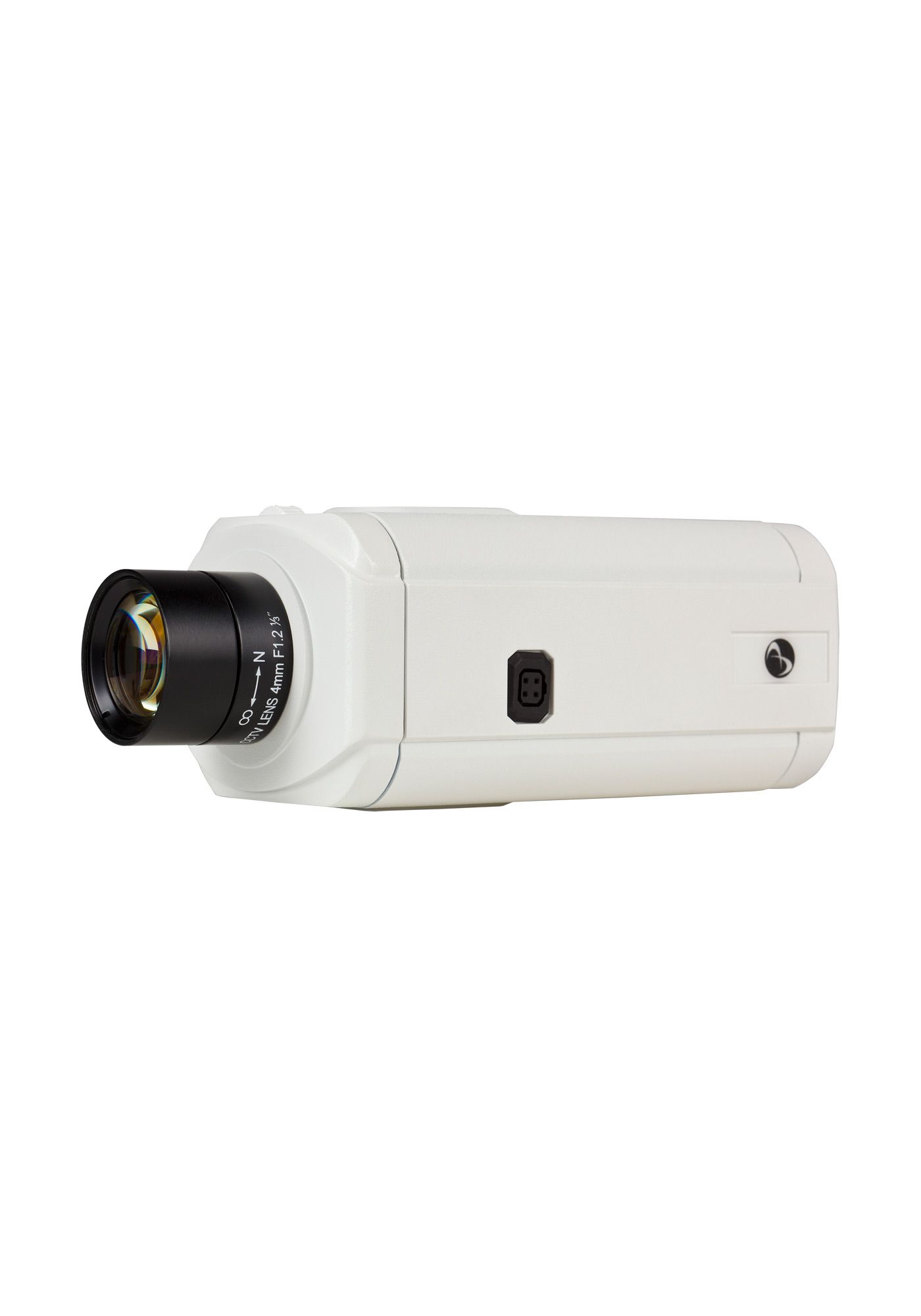

The American Dynamics ADCA3XP230 Discover 300 Series Box Camera offers high-resolution images with exceptional color accuracy, providing an affordable solution for various surveillance needs. Engineered for optimal performance in diverse environments, this camera features advanced technology like Digital Signal Processing (DSP) and low light sensitivity, making it suitable for both indoor and outdoor applications. With user-friendly settings and customizable privacy zones, the Discover 300 is designed to deliver clarity and security.
American Dynamics ADCA3XP230 Camera Features
- Eight privacy zones: Allows the camera to conceal sensitive areas, enhancing security and privacy in monitored locations.
- Digital noise reduction: Minimizes image imperfections, ensuring clear and sharp visuals regardless of lighting conditions.
- Auto White Balance: Automatically adjusts to achieve optimal color accuracy, resulting in clearer images.
- Day/Night switching: Provides superior low light performance, allowing visibility in scenes as dim as 0.5 lux.
- 230V (PAL): Compatible with standard power sources for hassle-free installation and operation.
Detailed Camera Specifications
| Resolution | 600 TVL |
| Sensor Type | 1/3" Format Interline CCD |
| Low Light Sensitivity | 0.5 lux |
| Backlight Compensation | Yes (BLC) |
| Automatic Gain Control | Yes (AGC) |
| Auto Iris Lens | Yes |
| Installation Environment | Indoor and outdoor (with enclosure) |
SKU  | ADCA3XP230 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | American Dynamics |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 230vAC |
| Electronic Shutter | MES 1/60 (NTSC)/ MES 1/50 PAL, FLK, 1/250-1/100000, Auto (NTSC) |
| Image Device | 1/3" Format Interline CCD sensor |
| Image Pixels-Effective | 752 x 582 |
| Minimum Scene Illumination | 0.32 lux (50IRE, F=1.2, AGC max.) |
| Operating Humidity | 90% non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions (W x H) | 63 x 57 x 120.20 mm (2.48 x 2.24 x 4.73 in) |
| OSD Menu | On, Off |
| Power Consumption | 2.6W (max.) |
| Privacy Zone | Eight programmable |
| S/N Ratio | 48 dB (100 IRE) |
| Scanning System | 2:1 Interlace |
| Signal System | PAL |
| Video Output | BNC |
| Synchronization | Internal |
| Digital Noise Reduction | On, Off |
| Mirror | On, Off |
| Backlight Compensation | 2 Zone On, Off, HLC |
| Automatic White Balance | Auto, ATW1 (2700K-9700K), ATW2 (2000K-20000K) AWC, Manual |
| Auto Gain Control | Low, Middle, High, Off |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
