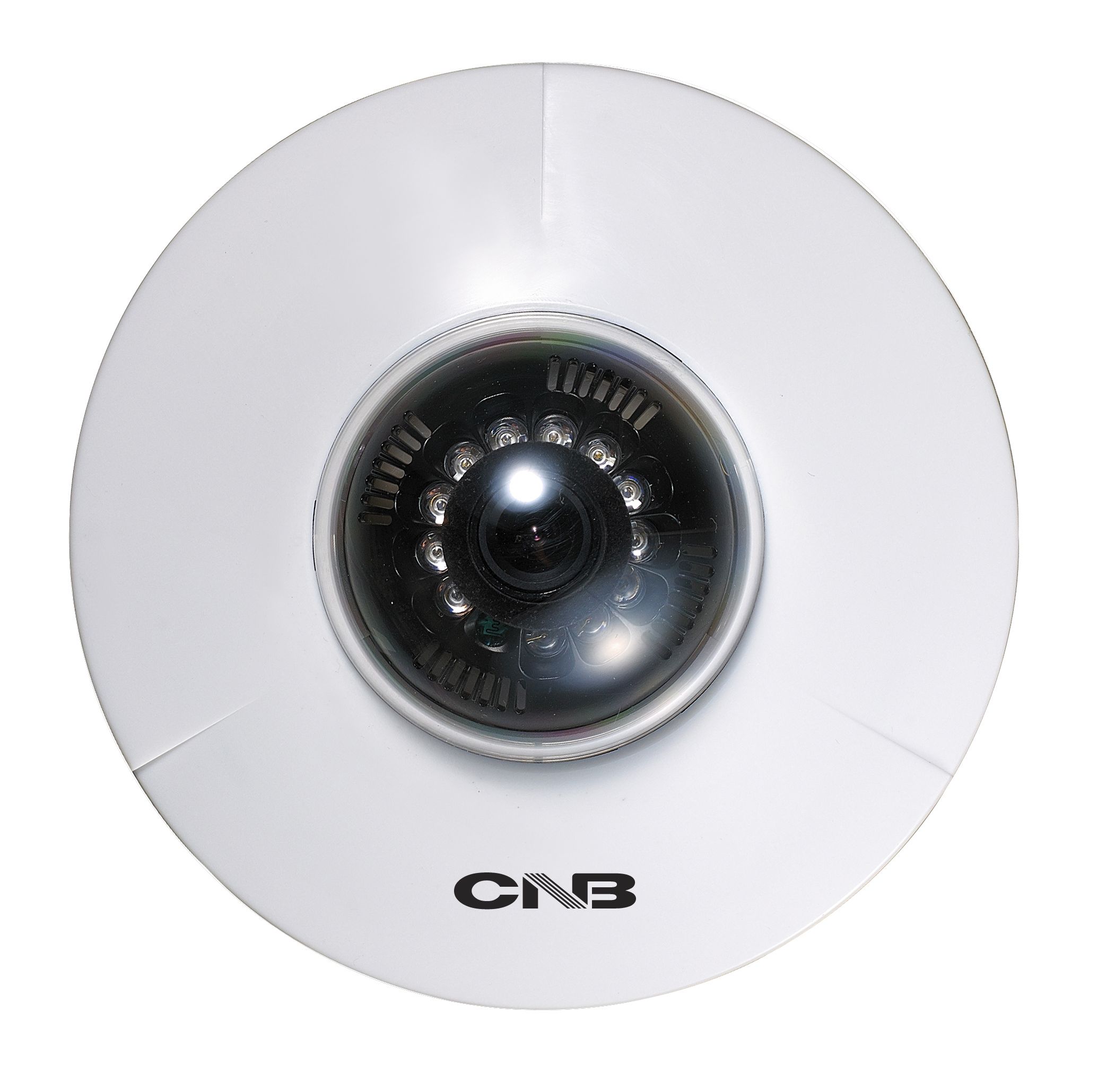

CNB AD21-0CHR Fusion IR HD-TVI 2MP Plastic PanCake Camera

SKU
AD21-0CHR
Model No
AD21-0CHR
$124.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Fusion IR HD ”-TVI 2M Plastic Pancake Camera
  • 1/3” Progressive scan CMOS Sensor
  • HD-TVI (2M 1920 × 1080P)
  • Super IR LED 2EA
  • DNR (Digital Noise Reduction)

The AD21-0CHR from CNB is a Fusion IR HD-TVI 2MP plastic pancake camera that delivers exceptional clarity and performance. With advanced features such as a progressive scan CMOS sensor and sophisticated digital noise reduction, this camera is perfect for a variety of surveillance applications, providing reliable and high-definition video quality even in low-light conditions.

CNB AD21-0CHR Camera Features

  • Fusion IR HD-TVI 2M Plastic Pancake Camera: Ensures high-definition video quality with a resolution of 1920x1080P.
  • 1/3” Progressive Scan CMOS Sensor: Captures clear and detailed images, even in challenging lighting conditions.
  • HD-TVI (2M 1920×1080P): Offers superior transmission performance over coaxial cable, maintaining video quality over long distances.
  • Super IR LED 2EA: Enhances night vision capabilities, allowing for surveillance in complete darkness.
  • DNR (Digital Noise Reduction): Minimizes distortion and noise, resulting in clearer images.
  • Dark Hunter (×32): Extends the camera's sensitivity in low-light scenarios for reliable surveillance.
  • Digital Zoom (×12): Enables close-up viewing of specific areas without losing image quality.
  • BLC (Backlight Compensation): Adjusts for bright backgrounds to ensure subject visibility.
  • MIRROR (Horizontal): Offers flexibility in camera installation with a mirrored image feature.
  • DEFOG: Corrects foggy images, ensuring clear visibility in various weather conditions.

Detailed Specifications for CNB AD21-0CHR

Camera TypeFusion IR HD-TVI 2MP Plastic Pancake
Sensor1/3” Progressive Scan CMOS
Resolution1920x1080P (HD-TVI)
IR LEDsSuper IR LED 2EA
Digital Noise ReductionYes (DNR)
Dark HunterYes (×32)
Digital ZoomYes (×12)
Backlight CompensationYes (BLC)
Mirror FunctionYes (Horizontal)
DefogYes
SKU  AD21-0CHR
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range
Manufacturer  CNB
Camera Signal     HD-TVI
Resolution    2 Megapixel
Sensor Option    1/3" CMOS
Lens Type    Fixed
Lens Size    3.6mm
Infrared Distance    0~60 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    1/30(25) ~ 1/30,000
Image Device    1/3 inch Progressive scan CMOS Sensor
Image Pixels-Effective1944 (H) x 1092(V)
Minimum Scene Illumination  Dark Hunter: 0.0005 Lux, IR LED ON : 0.0Lux
Operating Humidity    30% ~ 80% RH
Operating Temperature    -10℃ ~ 50℃
Power Consumption  370mA, 4.5W (Max)
Scanning System    Progressive Image Processing
Synchronization  Internal Sync
Automatic White Balance    ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
IR LEDs  2EA
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Digital ZoomYes
