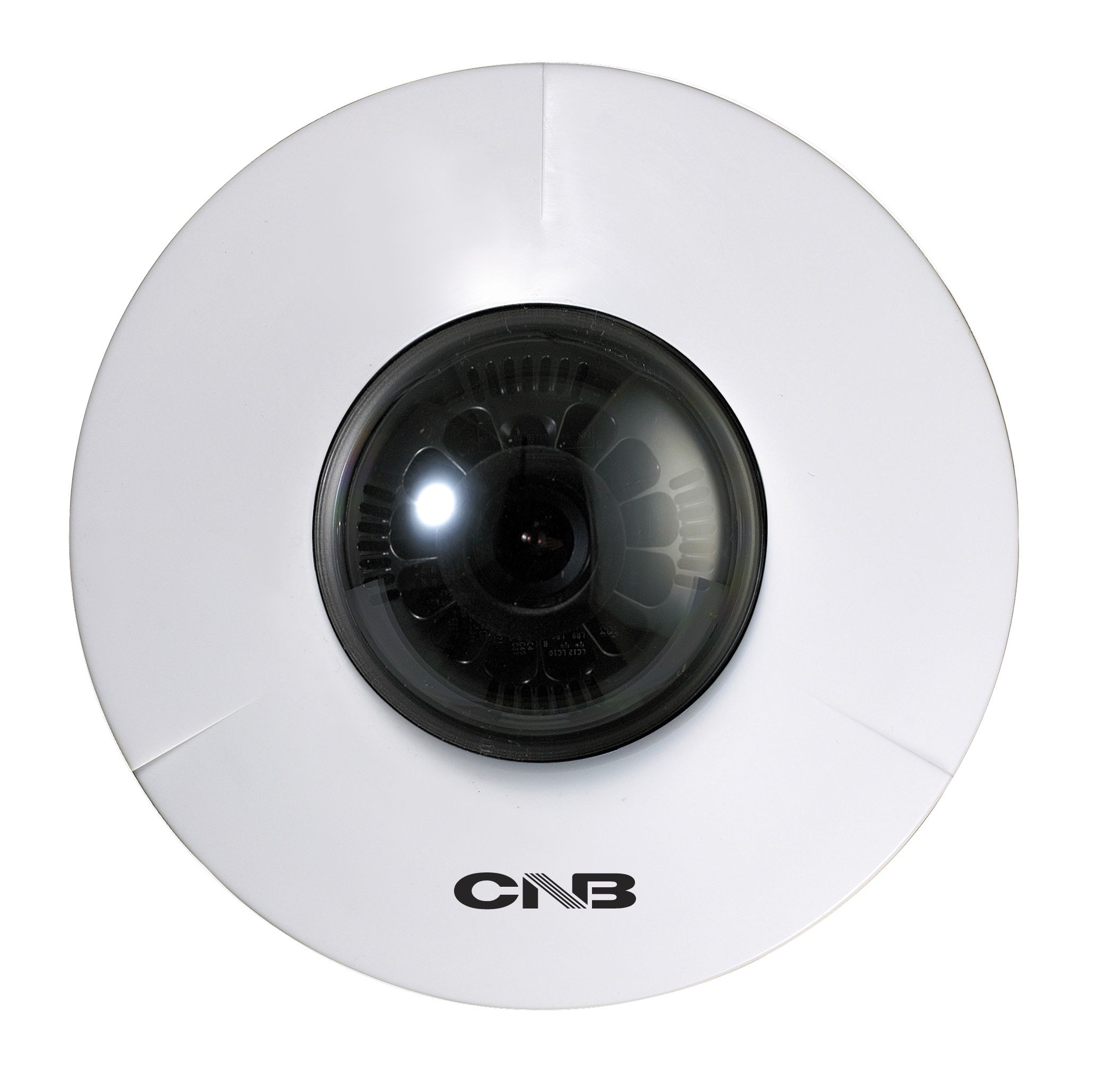

CNB AD21-0CH HD-TVI 2MP Plastic PanCake Camera

SKU
AD21-0CH
Model No
AD21-0CH
$109.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • HD ”-TVI 2M Plastic Pancake Camera
  • 1/3” Progressive scan CMOS Sensor
  • HD-TVI (2M 1920 × 1080P)
  • DNR (Digital Noise Reduction)
  • Dark Hunter ( × 32)

The CNB AD21-0CH HD-TVI 2MP Plastic Pancake Camera is designed for superior surveillance with its high-definition video quality and advanced features. Ideal for both indoor and outdoor settings, this camera ensures clear images with its cutting-edge technology, making it a reliable choice for any security system.

CNB AD21-0CH Camera Features

  • HD-TVI 2MP Plastic Pancake Camera: Provides high-definition video recording at 1080P resolution, ensuring crisp and clear images for effective monitoring.
  • 1/3” Progressive Scan CMOS Sensor: Enhances the camera's ability to capture detailed images with a wide dynamic range, ensuring quality performance in varying light conditions.
  • HD-TVI (2M 1920×1080P): Transmits high-definition video over coaxial cable, simplifying installation while maintaining the integrity of the video signal.
  • DNR (Digital Noise Reduction): Reduces noise in low-light conditions, providing clearer footage and improving the overall quality of recordings.
  • Dark Hunter (×32): Offers enhanced visibility during low-light conditions, allowing for effective monitoring even in darkness.
  • Digital Zoom (×12): Enables you to zoom in on specific areas without losing image quality, improving surveillance capabilities.
  • BLC (Backlight Compensation): Adjusts the exposure in scenes with varying light levels, ensuring subjects are not washed out by backlighting.
  • MIRROR (Horizontal): Offers a mirroring option, which is useful for specific installation scenarios where orientation is critical.

Detailed Camera Specifications for CNB AD21-0CH

Camera TypeHD-TVI 2MP Pancake Camera
Sensor Type1/3” Progressive Scan CMOS
Resolution1920×1080P (2M)
DNRSupported
Low-Light PerformanceDark Hunter ×32
Zoom CapabilityDigital Zoom ×12
Backlight CompensationSupported
Orientation OptionMirrored (Horizontal)
SKU  AD21-0CH
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range
Manufacturer  CNB
Camera Signal     HD-TVI
Resolution    2 Megapixel
Sensor Option    1/3" CMOS
Lens Type    Fixed
Lens Size    3.6mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    1/30(25) ~ 1/30,000
Image Device    1/3 inch Progressive scan CMOS Sensor
Image Pixels-Effective1944 (H) x 1092(V)
Minimum Scene Illumination  Dark Hunter: 0.0005 Lux
Operating Humidity    30% ~ 80% RH
Operating Temperature    -10℃ ~ 50℃
Power Consumption  210mA, 2.5W (Max)
Scanning System    Progressive Image Processing
Synchronization  Internal Sync
Automatic White Balance    ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Digital ZoomYes
