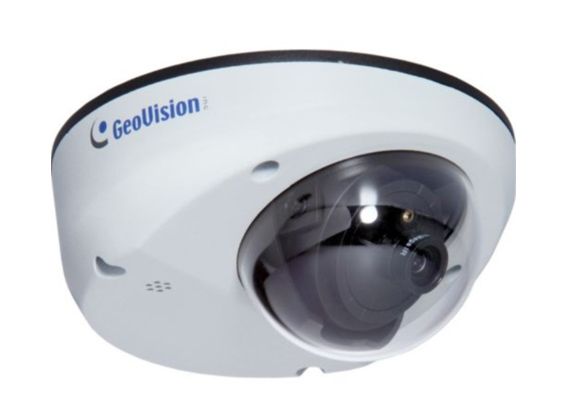

Geovision GV-MDR5300-1F 5MP 2.8mm Mini Fixed Rugged Dome Camera
SKU
84-MDR5300-1P10
Model No
GV-MDR5300-1F
was $638.63 Special Price $457.38
Product Highlights
- 1/2.5" progressive scan super low lux CMOS
- Dual streams from H.264 and MJPEG
- Up to 10 fps at 2560 x 1920
- Day and night function (electronic)
- Vandal resistance (IK10 for metal casing)
Speak to an expert
5MP 2.8mm Mini Fixed Rugged Dome Camera
- The Geovision GV-MDR5300-1P10 is a cutting-edge outdoor network camera designed for robust performance under varying lighting conditions. Offering a 5 Megapixel resolution with H.264 encoding, this mini fixed rugged dome camera features Wide Dynamic Range (WDR) technology for enhanced clarity in challenging light scenarios. Its durable IK10 and IP67 ratings ensure it withstands harsh environments, making it ideal for security applications needing reliable surveillance. With versatile installation options, easy connectivity through PoE, and comprehensive features such as motion detection and privacy masking, this camera delivers exceptional value for any security setup.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| 1/2.5" progressive scan super low lux CMOS | Recording assigned by GV-Edge Recording Manager (Windows, Mac version) |
| Dual streams from H.264 and MJPEG | PoE (IEEE 802.3af) |
| Up to 10 fps at 2560 x 1920 | Wide Dynamic Range (WDR) |
| Day and night function (electronic) | Defog |
| Vandal resistance (IK10 for metal casing) | Motion detection |
| Ingress protection (IP67) | Tampering alarm |
| EN50155 compliance for rolling stock applications | Privacy mask |
| Wide temperature tolerance (-30 °C ~ 50 °C / -22 °F ~ 122 °F) | Built-in microphone |
| 3-axis mechanism: | Built-in micro SD card slot (SD/SDHC) for local storage |
| pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°) |
Additional Geovision Products
SKU  | 84-MDR5300-1P10 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Geovision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Automatic |
| Electronic Shutter | Automatic, Manual (1/5 ~ 1/8000 sec.) |
| Image Device | 1/2.5" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.15 Lux , BW: 0.10 Lux |
| Operating Humidity | 10% to 90% (no condensation) |
| Operating Temperature | -30 °C ~ 50 °C (-22 °F ~ 122 °F) |
| Power Consumption | 3.81 W |
| Protocols | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
| S/N Ratio | 45 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D |
| Rotation Angle | 0° ~ 360° |
| Automatic White Balance | Automatic, Manual (2800K ~ 8500K) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
