Geovision GV-FD2510 2Mp 3x Indoor IR WDR Network Dome Camera
SKU
84-FD25100-002U
Model No
GV-FD2510
$297.66
Product Highlights
- 1/2.8" progressive scan Super Low Lux CMOS
- Min. illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- 3-axis mechanism (pan / tilt / roll)
Speak to an expert

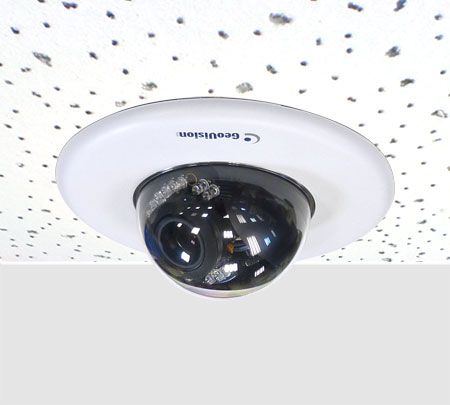

2Mp 3x Indoor IR WDR Network Dome Camera
- The Geovision 84-FD25100-002U is a state-of-the-art indoor IP dome camera featuring a 2 Megapixel H.264 imaging capability combined with advanced technology for superior low light performance. With its 3x motorized zoom lens, users can enjoy flexible installation and precise image capturing in varying light conditions. Enhanced by features such as P-iris and intelligent IR, this camera delivers exceptional image clarity, making it an ideal choice for creating a secure environment.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
WDR
Camera Features
| 1/2.8" progressive scan CMOS | Built-in Micro SD card slot (SDHC / SDXC) for local storage |
| Min. illumination at 0.02 lux | NAS recording |
| Dual streams from H.264 and MJPEG | 12VDC / 24VAC / PoE |
| Up to 30 fps at 1920 x 1080 | Wide Dynamic Range (WDR) |
| 3-axis mechanism (pan / tilt / roll) | 3D Noise Reduction |
| P-Iris for auto iris adjustment | Defog |
| Intelligent IR | Motion Detection / Tampering Alarm / Privacy Mask |
| IR distance up to 30m (98.4ft) | Removable IR-cut filter for Day/Night function |
| 2-way audio | IP address filtering |
| Motorized varifocal lens for remote focus/zoom adjustment | Supports iPhone, iPad, Android & 3GPP |
| One sensor input and alarm output | 31 languages on Web interface |
| TV-out support | ONVIF (Profile S) conformance |
Additional Geovision Products
SKU  | 84-FD25100-002U |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Geovision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 3X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Automatic |
| Dimensions (W x H) | ø 155 x 110 mm (6.1’’ x 4.33”) |
| Electronic Shutter | Automatic, Manual (1/5 ~ 1/8000 sec.) |
| Image Device | 1/2.8” progressive scan super low lux CMOS |
| IR LEDs | 10 IR LEDs |
| Minimum Scene Illumination | Color: 0.02 Lux, B/W: 0.02 Lux, IR ON: 0 Lux |
| Operating Humidity | 10% to 90% (no condensation) |
| Operating Temperature | 0 °C ~ 50 °C (32 °F ~ 122 °F) |
| Power Consumption | 12 W |
| Protocols | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 3D |
| Rotation Angle | 0° ~ 340° |
| Automatic White Balance | Automatic, Manual (2800K ~ 8500K) |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
