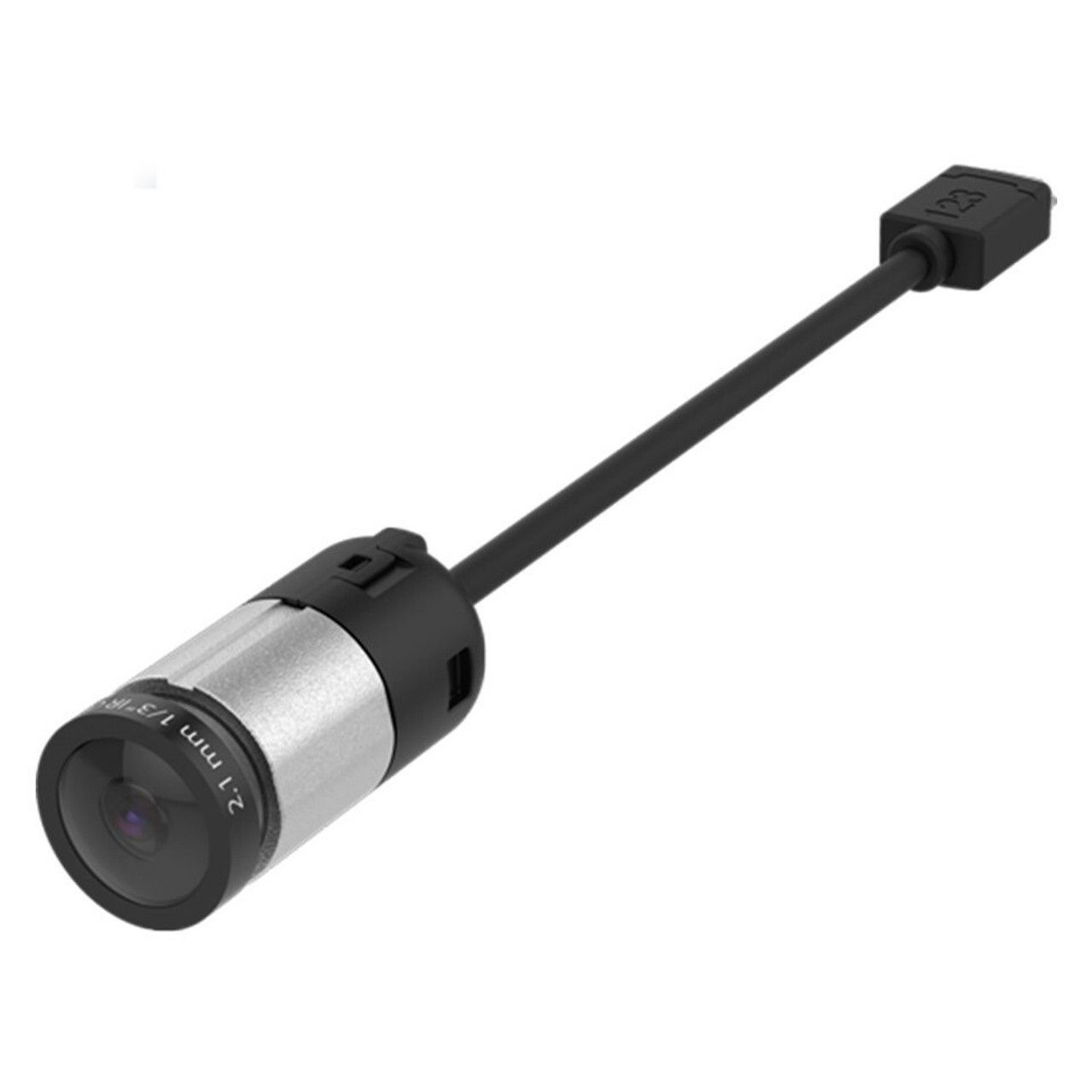

Axis 0765-001 F1004 Covert Camera w/ 2.1mm Lens
SKU
0765-001
Model No
F1004 SENSOR UNIT
$119.54
Product Highlights
- Small size and price
- 102º horizontal field of view
- HDTV 720p
- Detachable cable for easy and flexible installation
Speak to an expert
AXIS F1004 Sensor Unit is small in size and price. It enables an affordable, highly discreet solution for the surveillance of multiple, closely situated indoor areas when used with the four-channel AXIS F44 Main Unit. AXIS F1004, which comprises a fixed lens and image sensor, provides a 102º horizontal field of view and supports HDTV 720p video when used with an AXIS F Main Unit. AXIS F1004 has a detachable 8-m (26 ft.) cable for connecting to a main unit. A flush ceiling/wall mount kit is included. Optional accessories include surface and recessed mounts.
Features
- Small size and price: The compact design makes it ideal for discreet surveillance in tight spaces without compromising on performance.
- 102º horizontal field of view: Provides a wide viewing angle, ensuring comprehensive coverage of the monitored area.
- HDTV 720p: Supports high-definition video quality for clear and detailed imagery.
- Detachable cable: Ensures simple and flexible installation options, making setup easier and more versatile.
AXIS 0765-001 F1004 Covert Camera Features
Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | AXIS F1004 |
| Lens Type | 2.1mm Fixed Lens |
| Field of View | 102º Horizontal |
| Video Resolution | HDTV 720p |
| Cable Length | 8 m (26 ft.) |
| Mounting Options | Flush ceiling/wall mount kit included; surface and recessed mounts available |
SKU  | 0765-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, In-Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 8-28vDC, PoE |
| Dimensions (W x H) | 37.5 mm (1 1/2 in), ø 16 mm (5/8 in) |
| Electronic Shutter | 1/24500 s to 1/6 s |
| Image Device | 1/4” (effective) progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.4 lux |
| Operating Humidity | 10–85% RH (non-condensing) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Protocols | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Angle of View | 102° horizontal angle of view, 56° vertical angle of view |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
