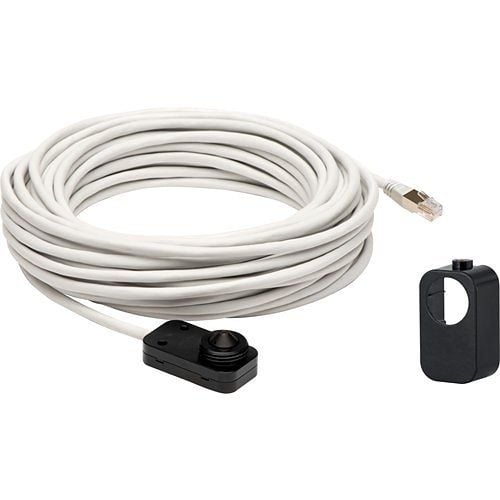

Axis 0735-001 F1025 Sensor Unit w/ 10' Cable
SKU
0735-001
Model No
F1025 SENSOR UNIT 3M
$277.82
Product Highlights
- Flexible, extremely discreet design for indoor use
- Pinhole lens with 1080p resolution
- Wide 92º horizontal field of view
- WDR - Forensic Capture (with AXIS F41/F44 Main Unit)
Speak to an expert
Axis 0735-001 F1025 Sensor Unit Features
The 0735-001 from Axis is an ideal for extremely discreet indoor surveillance applications, such as in ATMs, stores and elevators. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. For use with an AXIS F Main Unit, AXIS F1025 provides a 1080p resolution and a wide 92º horizontal field of view. AXIS F1025 also supports Wide Dynamic Range (WDR) – Forensic Capture, ideal for scenes with very bright and dark areas. The unit comes with a 3- or 12-m (10/39 ft.) pre-mounted cable for connection to a main unit. A straight mounting bracket is included.
Features
- Flexible, extremely discreet design: Perfect for indoor use in tight spaces without drawing attention.
- Pinhole lens with 1080p resolution: Delivers high-quality video while maintaining a low profile.
- Wide 92º horizontal field of view: Captures a broad area for comprehensive surveillance coverage.
- WDR – Forensic Capture: Enhances image quality in challenging lighting conditions when paired with AXIS F41/F44 Main Unit.
Axis 0735-001 F1025 Detailed Specifications
| Sensor Type | 1/2.9" Progressive scan RGB CMOS |
| Resolution | 1080p (1920 x 1080) |
| Field of View | 92° horizontal |
| Dynamic Range | Wide Dynamic Range (WDR) – Forensic Capture |
| Cable Length | 3 or 12 meters (10 or 39 feet) pre-mounted |
| Mounting Options | Flush-mounted in wall, ceiling or metal panel |
| Included Accessories | Straight mounting bracket |
SKU  | 0735-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 8-28vDC, PoE |
| Dimensions (W x H) | 51 x 121 x 121 mm (2 x 4.8 x 4.8 in) |
| Electronic Shutter | HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s; WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s |
| Image Device | 1/2.8” (effective) progressive scan RGB CMOS |
| Minimum Scene Illumination | Color: 0.3 lux |
| Operating Humidity | 10–85% RH (non-condensing) |
| Operating Temperature | -30 °C to 55 °C (-22 °F to 131 °F) |
| Protocols | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
