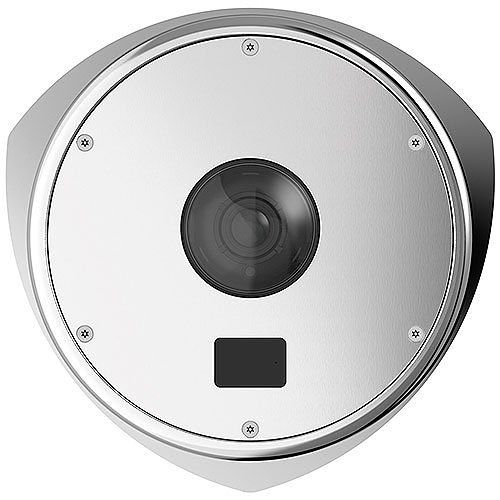

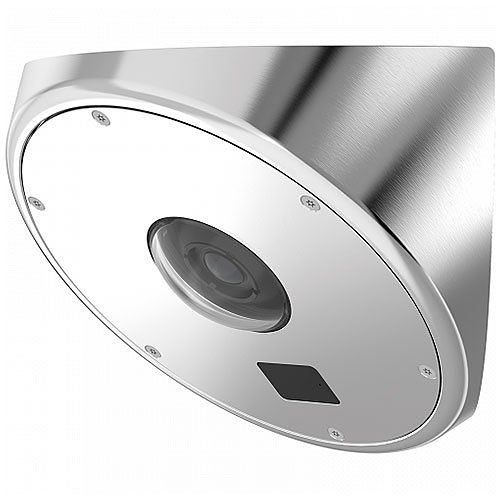

Axis 0709-001 Q8414-LVS 1.3 MP Outdoor Network Camera, Metal, 2.5-6mm Lens
SKU
0709-001
Model No
Q8414-LVS METAL
$1,135.98
Product Highlights
- Anti-ligature design
- Impact resistant IK10+ 50 joule rating
- Easy to clean, IP66-and NEMA 4X-rated
- Built-in invisible IR LED illumination (940 nm)
- Lightfinder technology
Speak to an expert
Axis Q8414-LVS Network Camera is the ultimate solution for high-quality video surveillance in vulnerable environments. Its vandal-resistant stainless steel casing and specialized features ensure reliable performance, even in complete darkness. This camera not only meets rigorous safety standards but also offers 24/7 monitoring capabilities with life-like color imaging and advanced audio analytics, making it a perfect fit for correctional facilities, psychiatric wards, and other sensitive areas.
Axis Q8414-LVS Camera Features
- Anti-ligature design: Ensures safety in sensitive environments, reducing the risk of self-harm.
- Impact resistant IK10+ 50 joule rating: Guarantees durability against vandalism and physical impacts.
- Easy to clean, IP66-and NEMA 4X-rated: Provides hassle-free maintenance and protection against harsh weather conditions.
- Built-in invisible IR LED illumination (940 nm): Enables effective surveillance in complete darkness without disturbing the environment.
- Lightfinder technology: Enhances low-light performance for vibrant color images during nighttime.
Detailed Specifications for Axis Q8414-LVS
| Camera Type | Outdoor Network Camera |
| Resolution | 1.3 MP |
| Lens | 2.5-6mm |
| Casing Material | Stainless Steel |
| Impact Rating | IK10+ (50 joules) |
| Water Resistance Rating | IP66/NEMA 4X |
| Illumination | Built-in invisible IR LED (940 nm) |
| Audio Capability | Built-in microphone with audio analytics |
| Application | Correctional facilities, psychiatric wards, medical observation |
| Cleaning Method | Hose, soapy water, and multi-purpose cleaning agents |
SKU  | 0709-001 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | 0~60 Feet |
| Resolution | 1.3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.5-6mm |
| Mount Type | Corner |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 165 x 255 x 215 mm (6.5 x 10 x 8.5 in) |
| Electronic Shutter | 1/24500 s to 2 s |
| Image Device | Progressive Scan RGB CMOS 1/3" |
| IR Wavelength | 940 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.2 , B/W: 0.02 lux at F1.2 , 0 lux with IR illumination on |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Protocols | IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Weatherproof | IP66 |
| Angle of View | Horizontal angle of view: 105° - 49°, F1.2 |
| IR Distance | 10 meters/33ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
