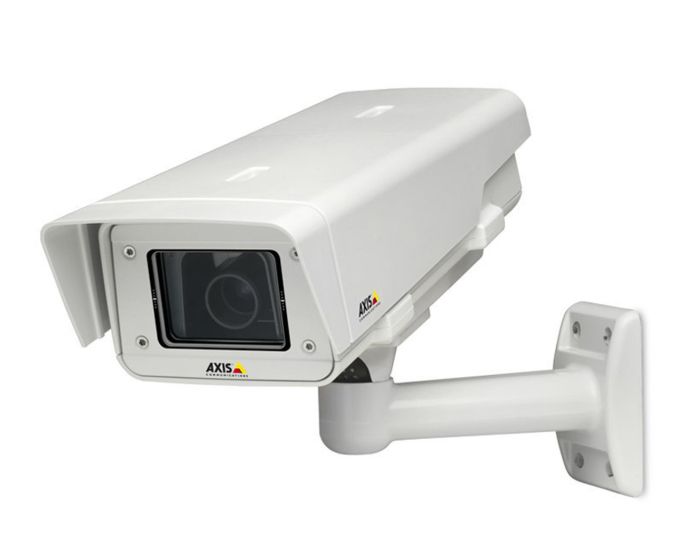

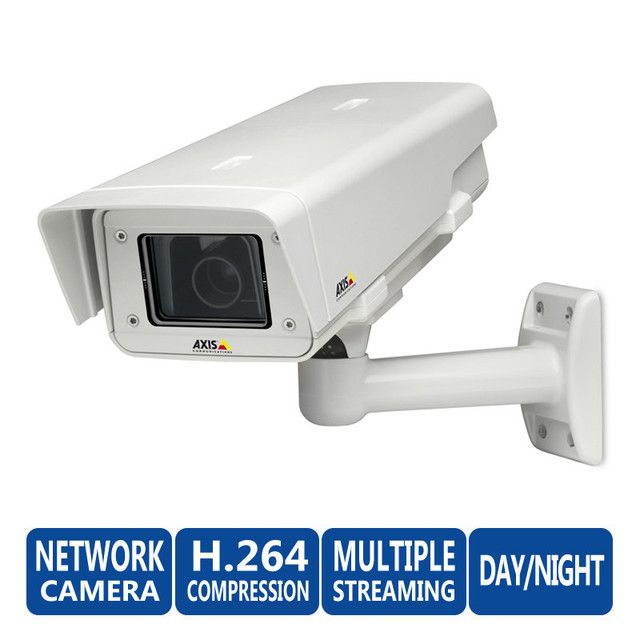

Axis 0530-001 P1357-E 5MP Outdoor Network Camera
- Superb video quality in HDTV and 5 megapixel
- P-Iris control
- Multiple H.264 video streams
- Digital PTZ and multi-view streaming
- Outdoor-ready
AXIS P1357-E Network Camera presents a top-of-the-line, 5-megapixel outdoor-ready network camera with HDTV 1080p performance, precise iris control for optimal image clarity and H.264 compression. It is suitable for outdoor use at airports, banks, shops, for city surveillance and any application that requires coverage of a large area or extremely high image detail. The camera’s revolutionary P-Iris enables automatic and precise control of the iris position to optimize depth of field and lens resolution for optimal image sharpness. DC-iris lenses are also supported for backward compatibility. The day/night functionality allows high image quality to be maintained even in low light conditions. The IP66-rated AXIS P1357-E, which comes with a wall mount bracket, sunshield and Ethernet cable, is protected from dust, rain, snow and sun, and can operate in temperatures from -40 °C to 50°C (-40 °F to 122 °F).
CCTV Resolution Comparison
Features
- Superb video quality: Enjoy stunning video clarity with HDTV and 5-megapixel resolution for detailed surveillance.
- P-Iris control: Benefit from automatic and precise iris control, optimizing depth of field and lens resolution for sharper images.
- Multiple H.264 video streams: Stream multiple video feeds simultaneously, providing flexibility without compromising quality.
- Digital PTZ and multi-view streaming: Enhance monitoring capabilities with digital pan, tilt, and zoom functionality, offering comprehensive coverage.
- Outdoor-ready: Designed for resilience, this camera can endure harsh outdoor conditions, making it ideal for various environments.
AXIS P1357-E Detailed Camera Specifications
| Resolution | 5 MP / HDTV 1080p |
| Iris Control | P-Iris / DC-iris lenses |
| Temperature Range | -40 °C to 50°C (-40 °F to 122 °F) |
| Protection Rating | IP66 (dust, rain, snow, sun) |
| Included Accessories | Wall mount bracket, sunshield, Ethernet cable |
| Video Compression | H.264 |
| Digital PTZ | Yes |
SKU  | 0530-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Bracket Required, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Without Sunshield: 6.1 x 5.0 x 13.5" (154.9 x 127.0 x 342.9 mm), With Sunshield: 6.4 x 5.6 x 15.9" (162.6 x 142.2 x 403.9 mm) |
| Electronic Shutter | 1/24000 s to 2 s |
| Image Device | Progressive scan RGB CMOS 1/3.2” |
| Minimum Scene Illumination | Color: 0.2 lux, F1.2, B/W: 0.04 lux, F1.2 |
| Operating Humidity | 10–100% RH (condensing) |
| Operating Temperature | -30 °C to 50 °C (-22 °F to 122 °F) with PoE, down to, -40 °C (-40 °F) with High PoE |
| Protocols | IPv4/v6, HTTP, HTTPSc, SSL/TLSc, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Angle of View | 80 to 32° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
