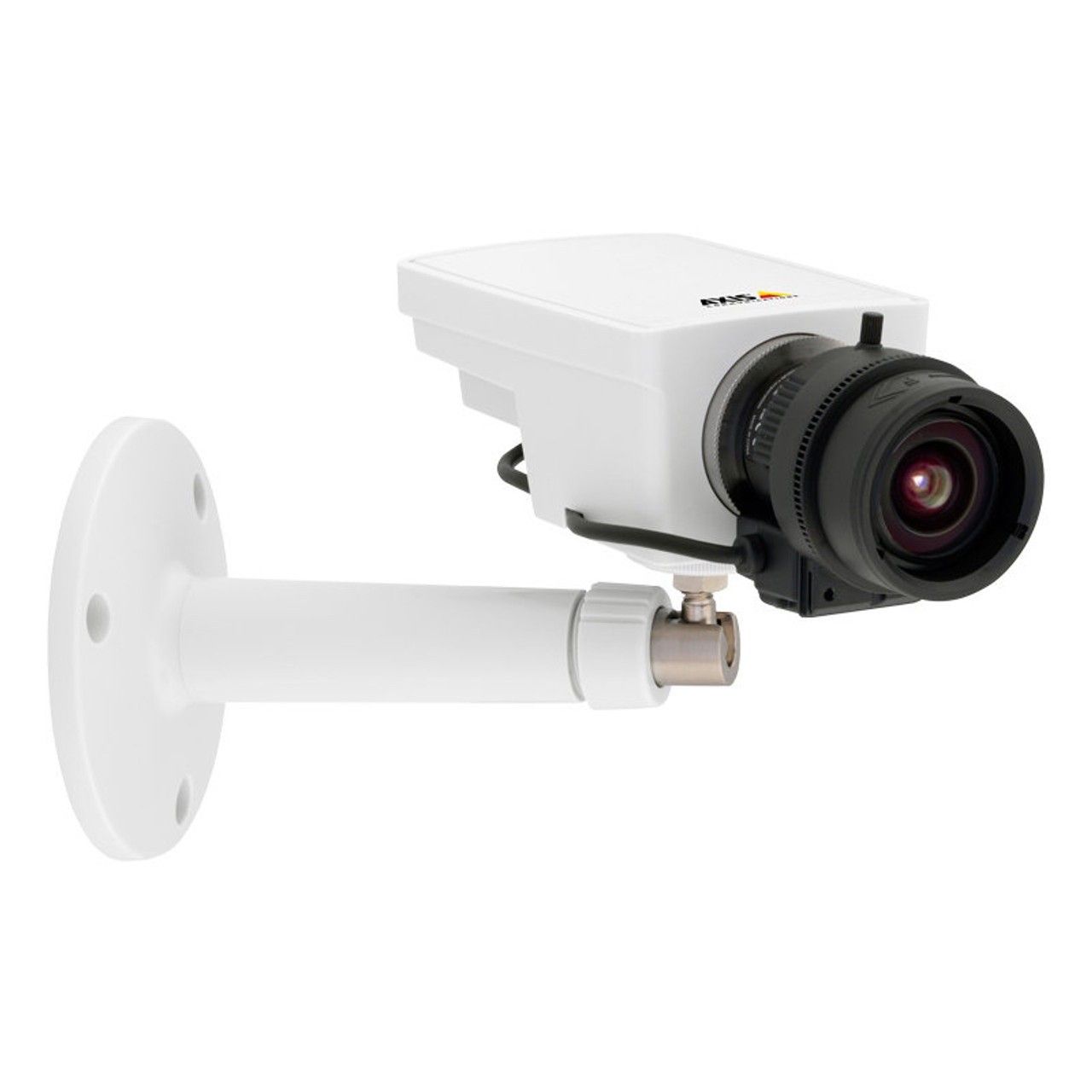

Axis 0341-001 M1114 HDTV Network IP Box Camera 2.8-8 mm Lens
SKU
0341-001
Model No
M1114
$483.89
Product Highlights
- HDTV 720p/1 megapixel resolution at full frame rate
- Varifocal DC-iris lens
- Multiple H.264 streams
- Power over Ethernet
Speak to an expert
The Axis 0341-001 M1114 HDTV Network IP Box Camera combines advanced surveillance technology with user-friendly features to deliver high-quality video recording. With its exceptional 720p resolution and durable design, this camera ensures reliable performance in various environments. Ideal for security applications, it offers video motion detection, an active tampering alarm, and is equipped with a versatile 2.8-8mm lens for flexible installation.
Axis 0341-001 M1114 Camera Features
- HDTV 720p/1 megapixel resolution at full frame rate: Experience crystal clear video quality for enhanced surveillance and monitoring.
- Varifocal DC-iris lens: Adjust the lens focal length easily to achieve the desired field of view and focus on specific areas.
- Multiple H.264 streams: Stream video in different resolutions simultaneously, allowing for efficient bandwidth usage and flexibility.
- Power over Ethernet: Simplify installation with a single cable providing both power and data, reducing the need for additional wiring.
Detailed Specifications for Axis 0341-001 M1114
| Resolution | 1280x800 to 160x90 |
| Lens Type | 2.8-8mm Varifocal DC-iris |
| Sensor Type | ¼” progressive scan RGB CMOS |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Compression Formats | H.264/Motion JPEG |
| Motion Detection | Yes |
| Active Tampering Alarm | Yes |
| Material | Aluminum/Plastic casing |
SKU  | 0341-001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Motion Detection Tracking |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Lens Type | Varifocal |
| Mount Type | Bracket Required |
| Compression Method | H.264 |
| Durability | Indoor |
| Electronic Shutter | 1/24 500 s to 1/6 s |
| Image Device | 1/4” progressive scan RGB CMOS |
| Minimum Scene Illumination | 0.6 lux |
| Operating Humidity | 20 - 80% RH |
| Operating Temperature | -20 °C to 50 °C(-4 °F to 122 °F) |
| Protocols | IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMB, SMTP,Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP,RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Video Output | RJ-45 10BASE-T/100BASE-TX PoE |
| Processor | 128 MB RAM, 128 MB Flash |
| Angle of View | 77° - 29° view |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
