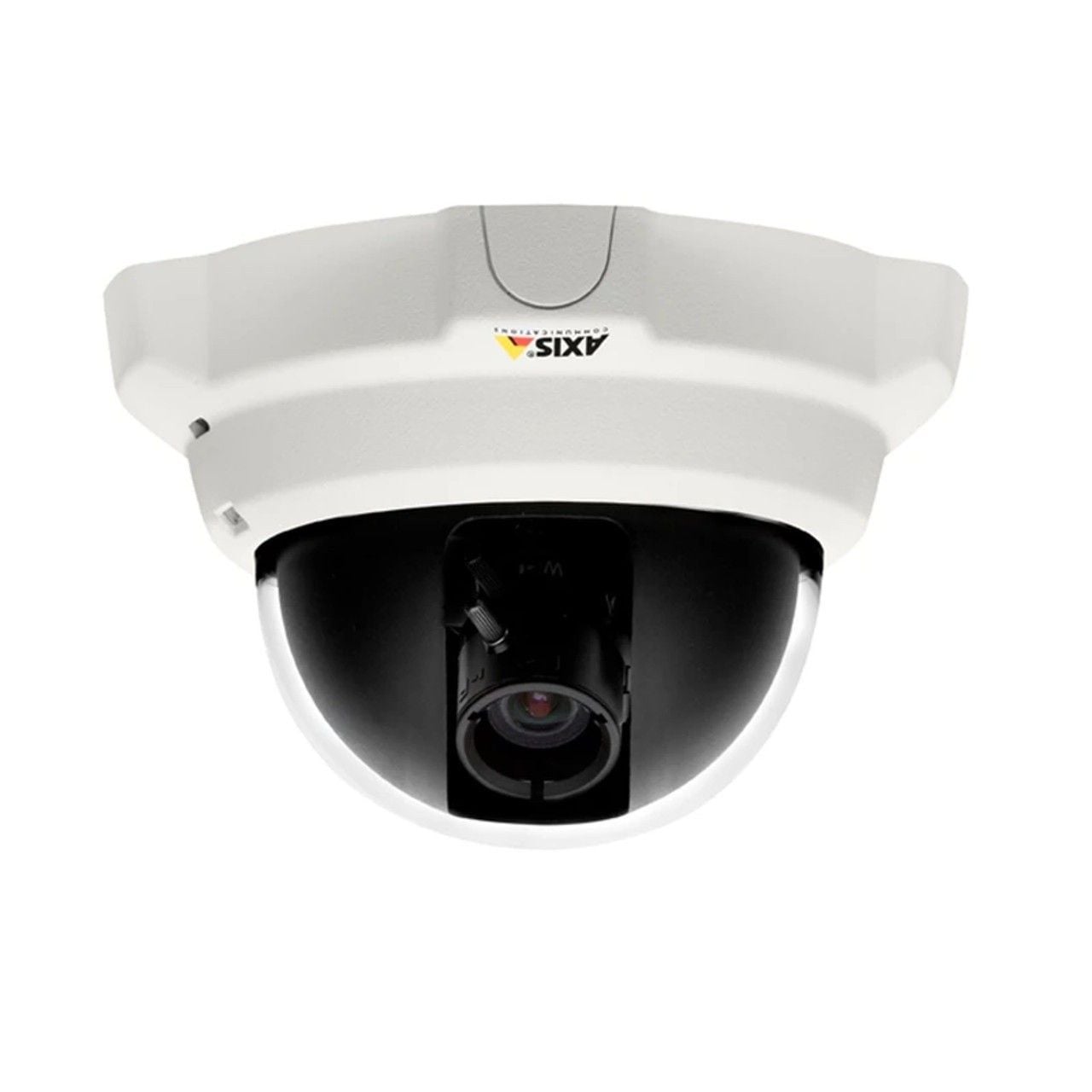

Axis 0336-001 M3203 Indoor Dome Network Camera 2.8-10mm Lens
SKU
0336-001
Model No
M3203
$340.41
Product Highlights
- Excellent image quality
- Multiple H.264 streams
- Power over Ethernet
- Intelligent video capabilities
- Pixel counter
Speak to an expert
The Axis 0336-001 M3203 Indoor Dome Network Camera is designed for robust indoor surveillance with versatility and premium image quality. Featuring a 2.8-10mm lens and progressive scan RGB CMOS sensor, this camera ensures clear video as well as enhanced functionalities including PoE support, intelligent analytics, and motion detection, making it ideal for security applications in various settings.
Axis 0336-001 M3203 Camera Features
- Excellent image quality: Captures 1.3 megapixels with a high-resolution output for clear and detailed images.
- Multiple H.264 streams: Offers simultaneous streaming capabilities to support various video formats and resolutions.
- Power over Ethernet: Simplifies installation by allowing power and data to be transmitted over a single cable.
- Intelligent video capabilities: Includes video motion detection and tampering alarms for enhanced security monitoring.
- Pixel counter: Enables precise planning of surveillance coverage to ensure no blind spots.
Detailed Specifications for Axis 0336-001 M3203
| Camera Type | Indoor Dome Network Camera |
| Model Number | 0336-001 |
| Sensor | 1/3” Progressive Scan RGB CMOS |
| Resolution | 1.3 Megapixels (160x90 - 1280x1024) |
| Lens | 2.8-10mm |
| Illumination | 3 – 10000lux |
| Video Compression | MPEG4/JPEG |
| Connectivity | M12 Network Connector |
| Weather Resistance | Humidity, Vibration, and Dust Resistant |
| Installation Type | Easy setup for quick deployment |
SKU  | 0336-001 |
|---|---|
| Features | Auto Gain Control, Motion Detection Tracking, Privacy Masking |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4 |
| Durability | Indoor |
| Dimensions (W x H) | 5.7 x 3.7" (144 x 94mm) |
| Electronic Shutter | 1/24500 s to 1/6 s |
| Image Device | 1/4” progressive scan RGB CMOS |
| Minimum Scene Illumination | 0.9 - 100000 lux |
| Operating Humidity | 15 - 85% RH |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Power Consumption | 4.2 W |
| Protocols | IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, CIFS/SMB,SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS,NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Video Output | RJ-45 10BASE-T/100BASE-TX PoE |
| Processor | 128 MB RAM, 128 MB Flash |
| Angle of View | Horizontal: 66° - 18° view |
| Rotation Angle | Pan 360°, tilt 170°, rotation 340° |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
