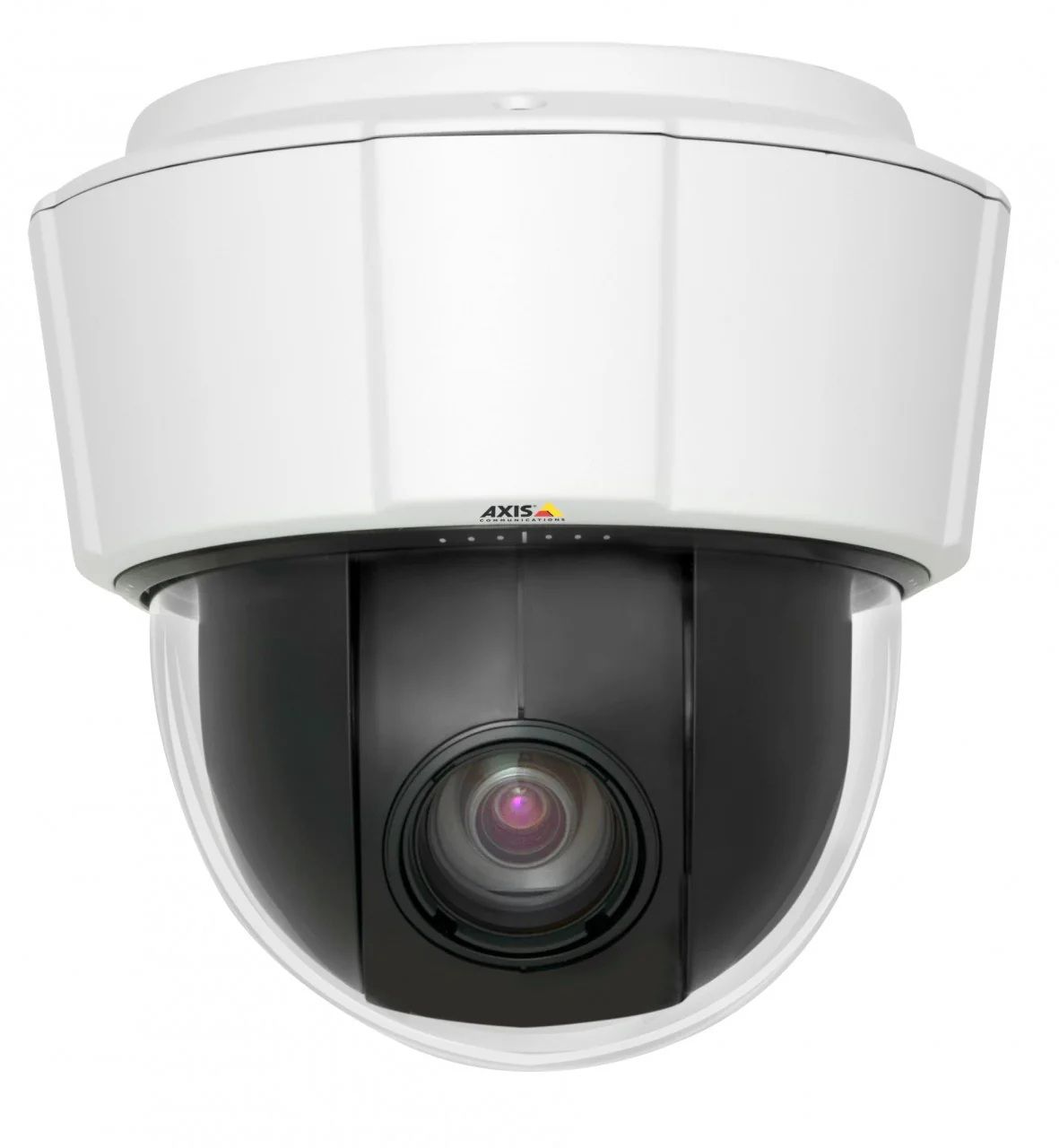

Axis 0314-004 Indoor PTZ Dome Network Camera 18x Lens
SKU
0314-004
Model No
0314-004
$1,699.54
Product Highlights
- HDTV 720p and H.264
- IP51-rated protection against dust and dripping water
- High Power over Ethernet, compliance with IEEE 802.3at
- 18x optical zoom, Advanced Gatekeeper functionality
Speak to an expert
The 0314-004 is an HDTV compliant PTZ surveillance camera from Axis designed to deliver high-quality images for various security applications. It features an 18x optical zoom and PoE support, ensuring flexibility in installation. Built with advanced gatekeeper functionality, a 3.6-104.4mm auto focus lens, and robust durability for varied environments, this camera is an ideal choice for anyone looking to enhance surveillance capabilities. Additionally, its wide operating temperature range and various compression formats make it suitable for any installation while providing reliable security performance.
Axis 0314-004 Camera Features
- HDTV 720p and H.264: Offers high-definition video clarity and efficient data compression for optimal storage and streaming.
- IP51-rated protection against dust and dripping water: Ensures durability in challenging environments, enhancing reliability and reducing maintenance.
- High Power over Ethernet, compliance with IEEE 802.3at: Facilitates easy installation and reduced cabling with power and video data transmitted over one cable.
- 18x optical zoom, Advanced Gatekeeper functionality: Allows for detailed surveillance over long distances, ensuring comprehensive area coverage and the ability to track moving targets.
Axis 0314-004 Detailed Specifications
| Optical Zoom | 18x |
| Lens Focal Length | 3.6-104.4mm |
| Sensor Type | ¼” Exview HAD progressive scan CCD |
| Shutter Speed | 1/30000s to 1s |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Video Compression Formats | Motion JPEG/H.264 |
| Audio Support | 2-way audio |
| Protection Rating | IP51 |
SKU  | 0314-004 |
|---|---|
| Features | Auto Gain Control, Day/Night, Motion Detection Tracking |
| Manufacturer | Axis |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 18X |
| Mount Type | In-Ceiling |
| Compression Method | H.264 |
| Durability | Indoor |
| Electronic Shutter | 1/10 000 s to 1/4 s |
| Image Device | 1/3" progressive scan CCD 1.3 megapixel |
| Minimum Scene Illumination | Color: 0.74 lux, B/W: 0.04 lux |
| Operating Humidity | 15 - 85% RH |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Power Consumption | 30 W |
| Protocols | IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP,SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS,NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Video Output | RJ-45 for 10BASE-T/100BASE-TX PoE |
| Weatherproof | IP51 |
| Zoom Ratio | 18x |
| Angle of View | Horizontal: 55.2° - 3.2° |
| Rotation Angle | Pan: 360° (with Auto-flip), Tilt: 180° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
