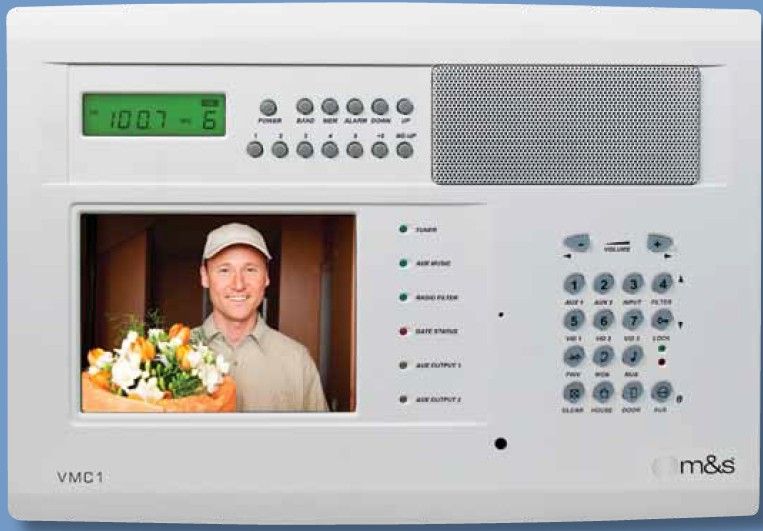

The Model VMC1-BZ Video Security Intercom Master (Bronze) is a full-function video intercom system designed with security in mind. Supporting up to 20 stations, including 3 maximum video door stations it is ideal for medium to large residences and small commercial applications. The VMC1-BZ integrates point-to-point intercom functions with live feed video and home automation controls that provide exceptional communication and entry way security. With a large 5.6" TFT LCD screen, the Master easily displays the video from any of the door station cameras. Additionally, the Video Out port can be connected to the home TV coax cable system allowing the viewing of the door camera image on any TV in the house. Two integrated 12V Control Output circuits are fully programmable and may be activated from any room station for a selectable amount of time or toggle on/off. They can also be set to trigger when the door chime is activated. These CO circuits can be used to turn on lights, trigger alarm panel alerts and any number of home security activities. Point-to-Point or Whole House intercom function provides easy and efficient communications, all with hands free response. Additionally, multiple room stations may be programmed with the same identification number, creating a room group for easy Point-to-Group communication. A built-in AM/FM radio tuner with ten AM station presets and ten FM station presets and an integrated 3.5mm audio input jack provides easy access to a variety of audio choices providing whole house background music. Room stations have pushbuttons that control the system operation. Room and patio stations connect to the master unit using standard CAT-5 cable. The VMC1 and its accessories can also be used to retrofit existing 6-wire intercom system installations. All room station models can select talk or listen to other room stations, door speakers and the master unit. Each has an intercom volume control. Pressing the privacy button on a room station prevents that room from being monitored. For access control, the optional Model DRW Door Release Mechanism can be installed and activated from the master unit or room stations. For master unit rough in and finish-out components, order the Model VMC1H to mount the VMC1 master.
Linear VMC1-BZ Key Features
Bronze faceplate color: A stylish design option that complements home decor, also available in White and Black for added choice.
Supports up to 20 stations: Perfect for larger homes or small businesses, allowing multiple communication points.
Supports up to 3 video door stations: Enhanced security with visual monitoring from multiple entry points.
Two 12V Control Output circuits: Programmable outputs for operating lights and alarms, enhancing home automation capabilities.
Analog Video Out: Connect to a TV system to view door camera feeds on any television in the house.
Backlit keypad: Usable in low-light conditions, the adjustable brightness ensures visibility.
Three Door Release activators: Conveniently control access from anywhere in the home or business.
3.5mm music source input jack: Connect external audio sources for music playback, enhancing your environment.
Point-to-Point and Whole House intercom functions: Flexible communication options for every room, optimizing user experience.
Hands free response: Frees you from manual operation, promoting convenience while using the intercom.
Privacy, intercom only, and door release features: Ensures security and control over which areas are monitored.
Programmable monitor override: Customizable settings for user-specific needs and preferences.
Ten AM and eight FM radio station tuner presets: Variety of audio options available at your fingertips.
Automatic on/off feature: Energy efficient and user-friendly operation enhances convenience.
CAT-5 wiring to all stations: Ensures reliable connectivity and simplified installation.
Compact dimensions: 12.6" W x 9.1" H x 2.4" D, designed for easy installation without compromising space.
VMC1-BZ-Specsheet
