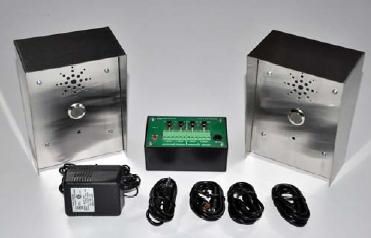

ETS STWI5-SE2 2 STW1-SE Microphone Speaker STWI-2 DVR Interface Box
SKU
STWI5-SE2
Model No
STWI5-SE2
$403.38
Product Highlights
- STW1-SE Microphone Speaker
- Omni-directional element w/25' range
- Low noise MOSFET pre-amplifier
- Line level, unbalanced output
- Adjustable gain
Speak to an expert
The STWI5-SE2 from ETS is a comprehensive audio surveillance solution consisting of a dual STW1-SE microphone and speaker configuration, along with the STWI-2 DVR interface box. Designed for seamless integration with DVRs and remote monitoring equipment, this system excels in outdoor environments, delivering exceptional audio performance and advanced monitoring capabilities.
ETS STWI5-SE2 Audio Surveillance Features
- Microphone Speaker: The STW1-SE microphone speaker provides clear audio capture, ideal for surveillance purposes.
- Omni-Directional Element: With a 25' range, it ensures comprehensive audio coverage from all directions, enhancing monitoring capabilities.
- Low Noise MOSFET Pre-Amplifier: Guarantees minimal background noise, ensuring clear sound quality for effective surveillance.
- Line Level, Unbalanced Output: Simplifies connectivity to various audio systems, enhancing versatility.
- Adjustable Gain: Allows users to easily control audio levels for optimal performance in different environments.
- Treble Boost Circuit: Offers selectable on/off functionality to enhance high-frequency sounds when needed.
- Selectable 70V Line Speaker Input: Provides flexibility in sound system design, accommodating various setup preferences.
- Limiter Circuit: Ensures audio levels stay within safe limits to prevent distortion, selectable on/off for user control.
- Euro-Style Connectors: Facilitates quick and clean cable terminations, saving installation time.
- Flush Mount Stainless Steel Plate: Ensures a professional installation appearance, suitable for various environments.
- Power Specifications: Operates on 12 VDC @ 250mA, ensuring efficient power usage.
- Built-In 2 Watt Power Amplifier: The 2.25-inch speaker delivers substantial sound output with adjustable volume control for personalized settings.
- STWI5-1 Interface Box: Simplifies connection to other devices, enhancing the system’s overall functionality.
- Fused and Polarity Protected Input: Provides increased safety and reliability during operation.
- Output Connectors: The 3.5mm mini plug and RCA connectors offer flexible output options for various equipment.
- Power Requirements: The interface box runs on 12 VDC @ 500mA with an LED indicator for operational status.
ETS STWI5-SE2 Detailed Specifications
| Microphone Speaker | STW1-SE for clear audio capture |
| Range | 25' omni-directional audio coverage |
| Pre-Amplifier | Low noise MOSFET for high sound quality |
| Output Type | Line level, unbalanced for versatile connections |
| Gain Control | Adjustable for optimized audio levels |
| Treble Boost | Selectable on/off circuit for enhanced high frequencies |
| Speaker Input | Selectable 70V line or line-level input |
| Limiter Circuit | Protects against audio distortion, selectable |
| Connectors | Euro-style for fast and clean terminations |
| Mounting Plate | Flush mount with 2 gangs stainless steel design |
| Power Consumption | 12 VDC @ 250mA for efficiency |
| Speaker Size | 2.25-inch .5 watt speaker |
| Amplifier Power | Built-in 2 watt with adjustable volume control |
| Interface Box | STWI5-1 for easy connection |
| Input Protection | Fused and polarity protected 12Vdc |
| Output Types | 3.5mm mini plug or RCA for compatibility |
| Power Input | 12 VDC @ 500mA, with LED indicator |
SKU  | STWI5-SE2 |
|---|---|
| Manufacturer | ETS |
| # of Areas | 2 |
