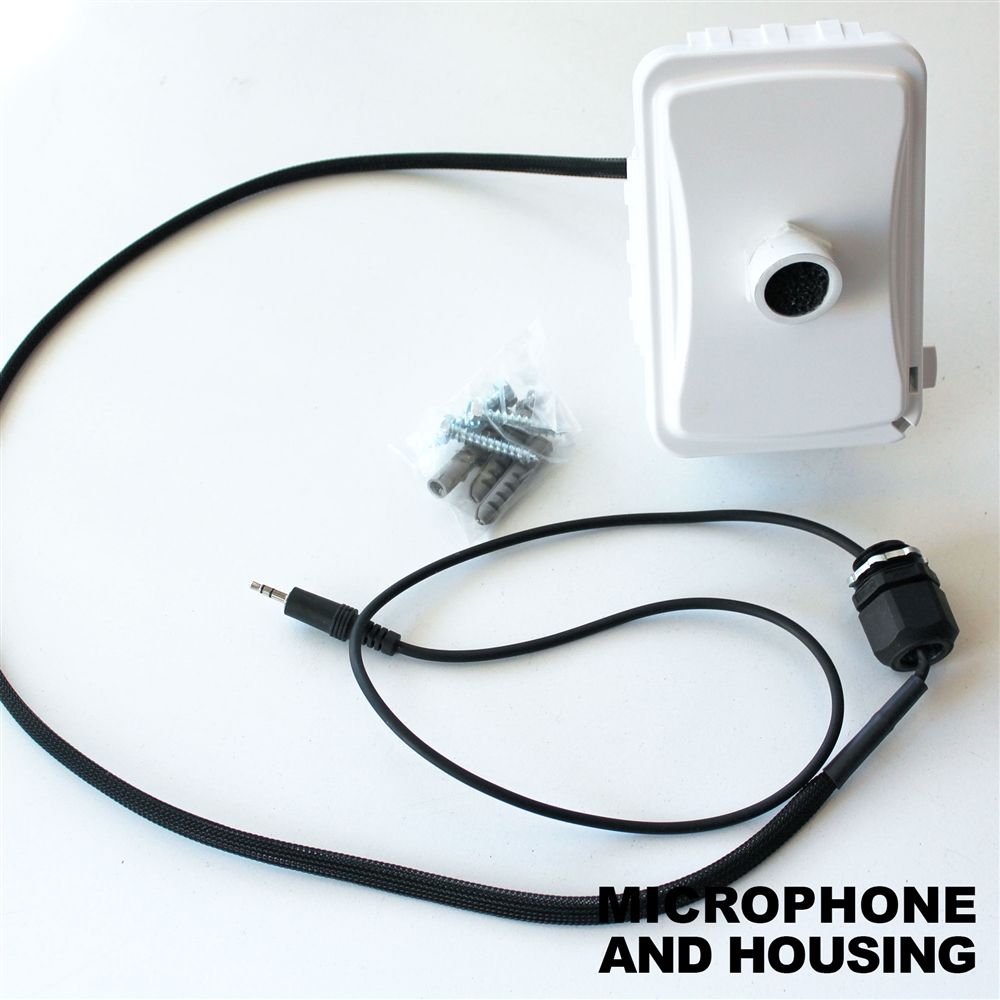

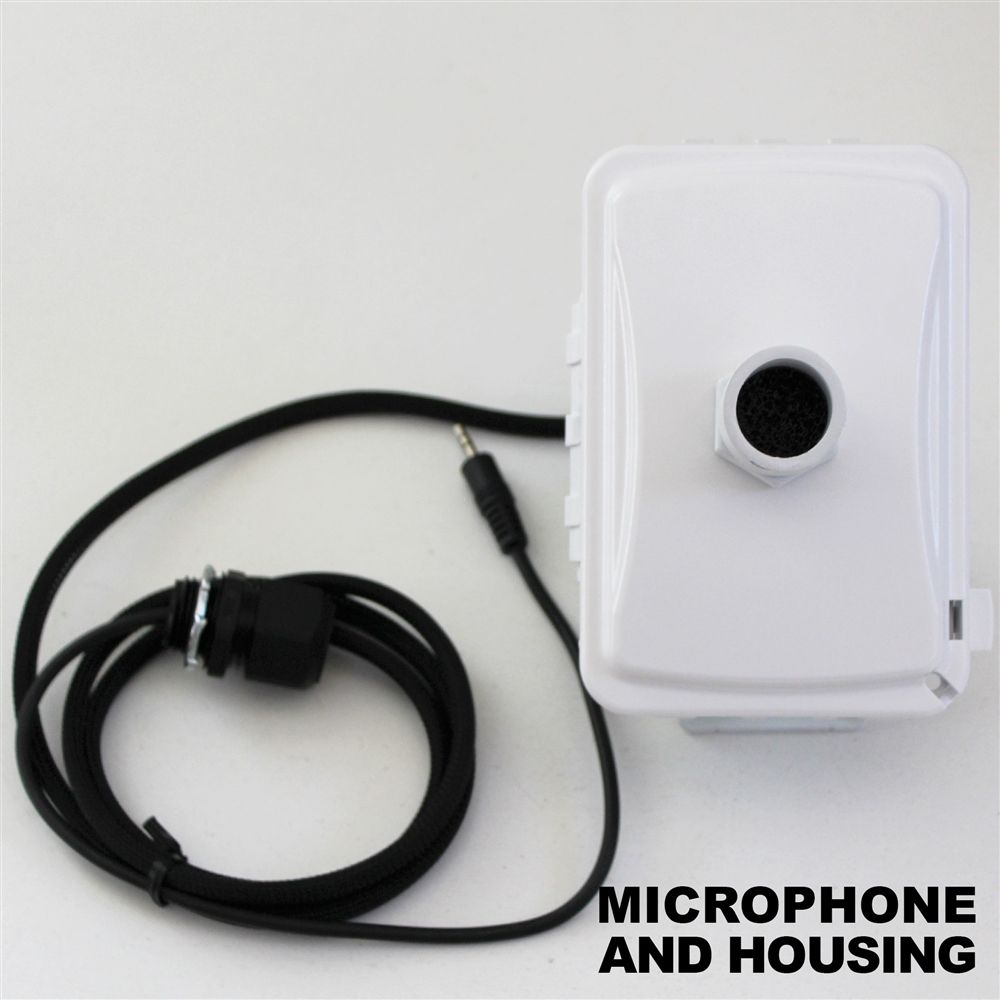

Dotworkz KT-MIC Outdoor Microphone Kit

Engineered for crystal clear outdoor live audio monitoring and recording, the Dotworkz KT-MIC is easy to install and is a great addition to any outdoor audio capture. The KT-MIC works with all IP and Analog security cameras (3.5mm) inputs, including Axis, Sony, Panasonic, Pelco, Toshiba, Samsung, and many more. The complete passive microphone audio system is watertight and built to withstand extreme conditions year after year. Simply attach to the camera and place on or near the camera housing.

Dotworkz KT-MIC Key Features

• Universal Compatibility: Works with all Dotworkz D Series and S Type Enclosures, ensuring a versatile setup for a variety of camera models.

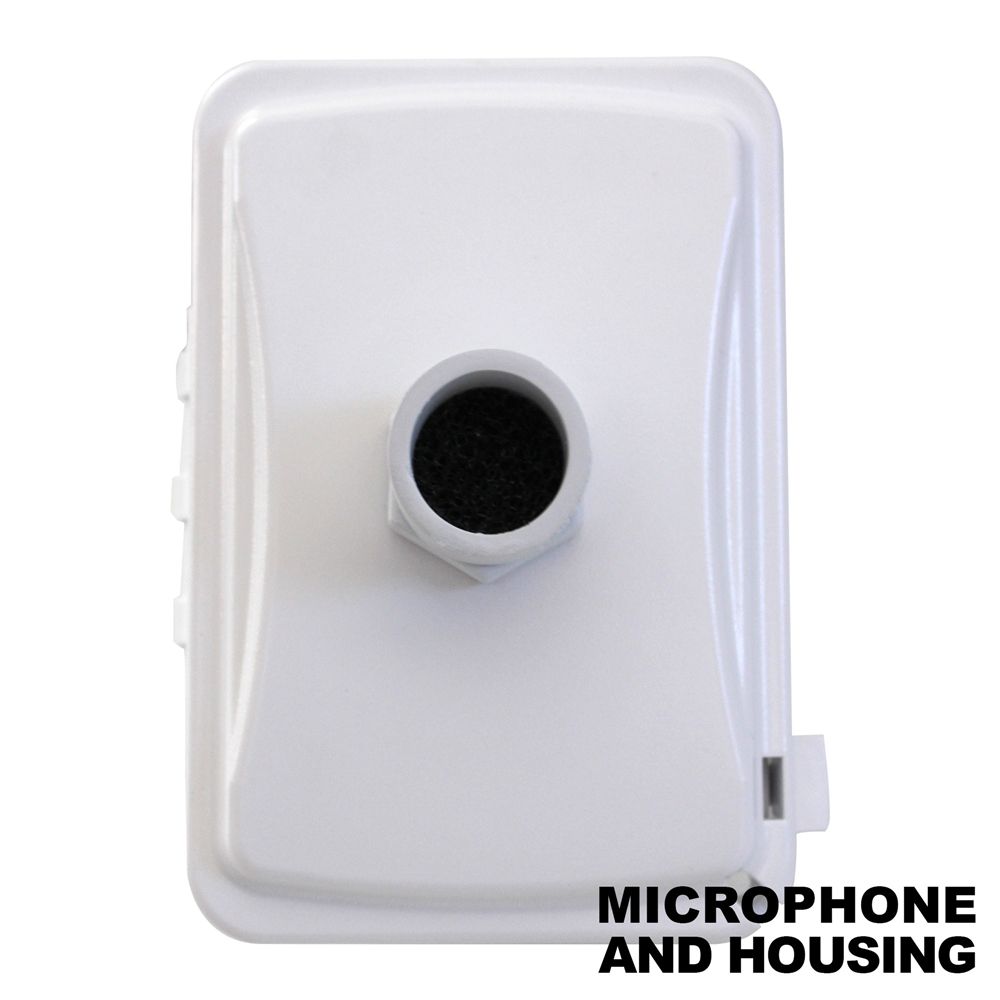

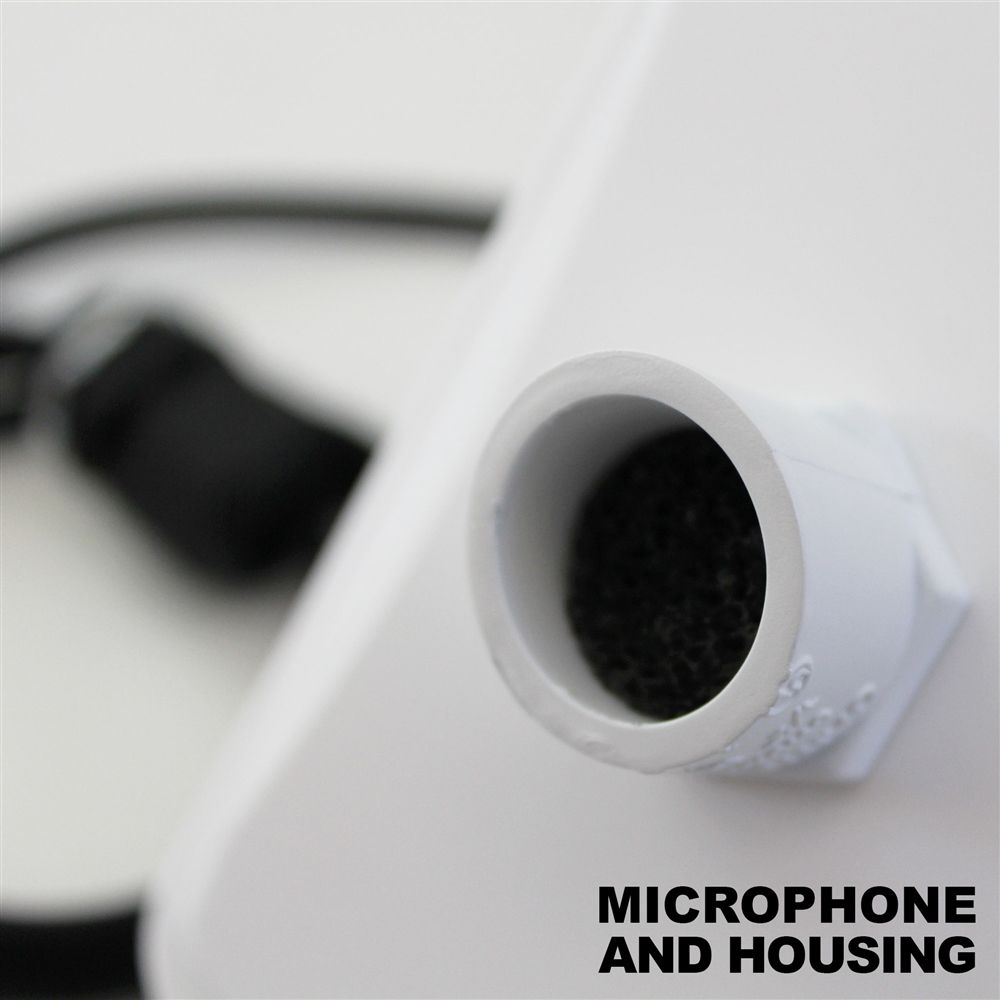

• Durable Housing: Constructed with non-corrosive ABS Mic Housing, suitable for both indoor and outdoor use, enhancing longevity and reliability.
• Easy Connectivity: Integrated 3.5mm stereo plug allows for simple and hassle-free connection to security cameras.
• Weatherproof Design: M20 IP68 sealed multi-port cable gland provides a secure fit, prepared for harsh outdoor conditions.
• All-Weather Cable: 6’ outdoor cable features UV shielded protection to withstand the elements and resist degradation.
• Flexible Mounting Options: Adjustable wall bracket with mounting hardware allows for easy installation in varied locations.
• Compliant Material: Rugged back housing is NEC & NEMA 3R compliant, ensuring safety standards are met for outdoor equipment.
• Secure Fastening: Ready for ¼” bolt or screw fastener (2x) for reliable surface mounting.
• Omni-Directional Audio: Captures sound from all directions up to 25’, providing comprehensive audio coverage.
• High Frequency Response: Frequency response range from 20-18 kHz delivers clear and detailed audio quality.
• Optimal Sensitivity: Offers -50dB sensitivity for clear pickup of quiet sounds.
• Solid Performance: Features a 40dB S/N Ratio and 300-5K Ohm load resistance for consistent sound quality.

Dotworkz KT-MIC Detailed Specifications
