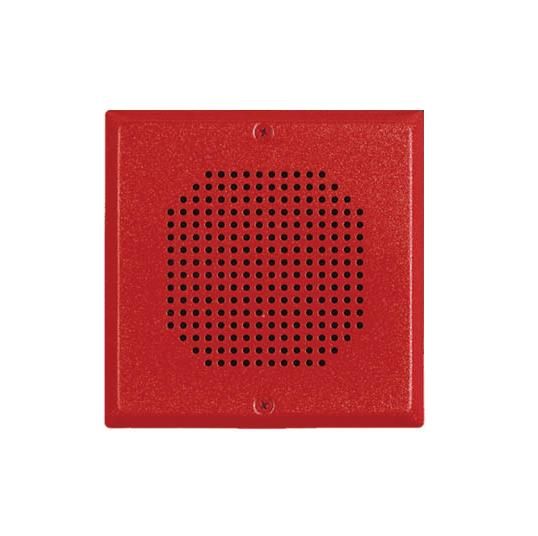

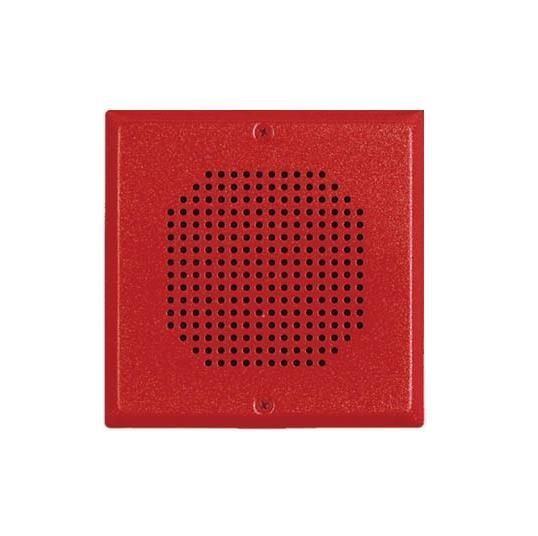

Bosch E70-R 24VDC Low-Profile Speaker, Red
SKU
E70-R
Model No
E70-R
$29.11
Product Highlights
- 24 VDC, filtered or unfiltered
- 25 VRMS or 70 VRMS operation at a choice of five taps from 0.125 W to 2 W
- Cost-effective two-wire design
- Easy wiring with screw terminals
- Supervised inputs
Speak to an expert
The Bosch E70-R 24VDC Low-Profile Speaker, Red, delivers exceptional audio performance essential for emergency communication. With its efficient design, this speaker ensures high output at minimal power consumption, making it perfect for life safety applications. Built for easy installation and reliable operation, this speaker stands out with its sleek aesthetic and practical features.
Bosch E70-R Speaker Features
- 24 VDC: Compatible with filtered or unfiltered power for flexible installation options.
- Versatile Operation: Offers 25 VRMS or 70 VRMS operation across five taps from 0.125 W to 2 W, providing tailored sound output.
- Cost-effective Design: The two-wire configuration simplifies installation and reduces overall wiring costs.
- Easy Wiring: Equipped with screw terminals for straightforward wiring, enhancing ease of installation.
- Supervised Inputs: Ensures system reliability by monitoring speaker performance.
Bosch E70-R Speaker Specifications
| Power Supply | 24 VDC |
| Frequency Range | 400 Hz to 4 kHz |
| Power Ratings | 0.125 W to 2 W |
| Impedance | 25 VRMS or 70 VRMS |
| Mounting Method | Built-in level adjustment for easy installation |
| Color | Red |
| Dimensions | Low-Profile design for discreet installation |
SKU  | E70-R |
|---|---|
| Manufacturer | Bosch |
| Weatherproof | No |
| Connection Type | 2 Conductor Speaker Wire |
