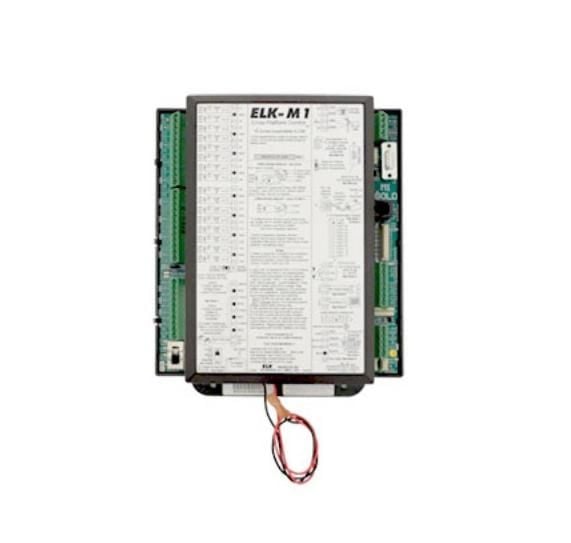

ELK M1GCB M1 Gold Cross Platform Control Board (No Terminal Blocks)

The ELK M1GCB M1 Gold Cross Platform Control Board is an advanced security and automation solution designed to integrate seamlessly with a variety of industry-standard systems. With its extensive vocabulary for user-friendly system status announcements, built-in voice dialer, and remote control functionality via any phone, the M1 Gold enhances home and business security while simplifying user interactions. Its expandable capabilities and programmable features offer extensive versatility for both integrators and end-users.

ELK M1GCB M1 Gold Control Board Features

• Large zone capacity: 16 on-board zones expandable to 208 for extensive coverage throughout your property.
• Wireless capability: Support for up to 144 wireless zones ensures flexibility in placement and installation.
• Two-way Listen-in interface: Allows for real-time monitoring and communication for added peace of mind.
• RS-232 Serial Port: Facilitates easy interface connections with computers and peripheral devices for advanced control.
• Time/Date stamped 512 event history log: Keeps thorough records of system activity for enhanced security and accountability.
• Menu driven, full text keypad programming: Simplifies configuration with intuitive interface, eliminating the need for extensive manuals.
• Voice Announcement: - Communicates alarms, zone descriptions, and system status in a 500+ word/phrase vocabulary
  - Links up to 6 words/phrases per announcement for clarity
  - Offers 10 custom recordable word/phrases for personalized alerts.
• 13 On-board Outputs: Includes 1 voice/siren output, 1 siren driver, 1 form "C" relay, and 10 low current (50mA) outputs for versatile integration with other systems.
• Partitioned functionality: Can be broken down into 8 separate areas and account numbers to customize security management.
• User Codes: Supports up to 199 unique codes (4 or 6 digits) with assignable authority levels for secure access.
• Arm levels: Multiple arming options including Away, Stay, Stay Instant, Nite, Nite Instant, and Vacation to suit different security needs.

Detailed Specifications for ELK M1GCB M1 Gold Control Board
