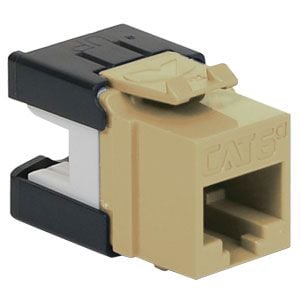

ICC IC1078GAIV Module, CAT6A, HD, Ivory

The IC1078GAIV from ICC is a CAT 6A 10Gig UTP modular jacks provide transmission performance beyond 500MHz and Alien Crosstalk requirements exceeding the industry standards set by ANSI/TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with a shielded termination cap which minimizes additional AXT from neighboring connectors. It also features twisted pair separation posts which minimizes untwisting of pairs to allow for efficient installation and long-term peak performance. The modular jacks are also backwards compatible supporting current CAT 6, CAT 5e, and voice network applications.

Features

• CAT 6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• PCB technology provides maximum performance and superior signal quality
• Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
• Designed with rear 110 IDC reducing termination time
• Used with ICC 110 single-blade punch down tool (ICACSPDT00) and ICC JackEasy tool (ICACSPDTEH)
• Includes an integrated TIA-568A/B color wiring diagram
• Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
• Compatible with ICC CAT 6A blank patch panels IC107PPU6A
• Exceeds ANSI/TIA-568-C requirements for permanent, channel link and component performances
• UL 1863 compliant
