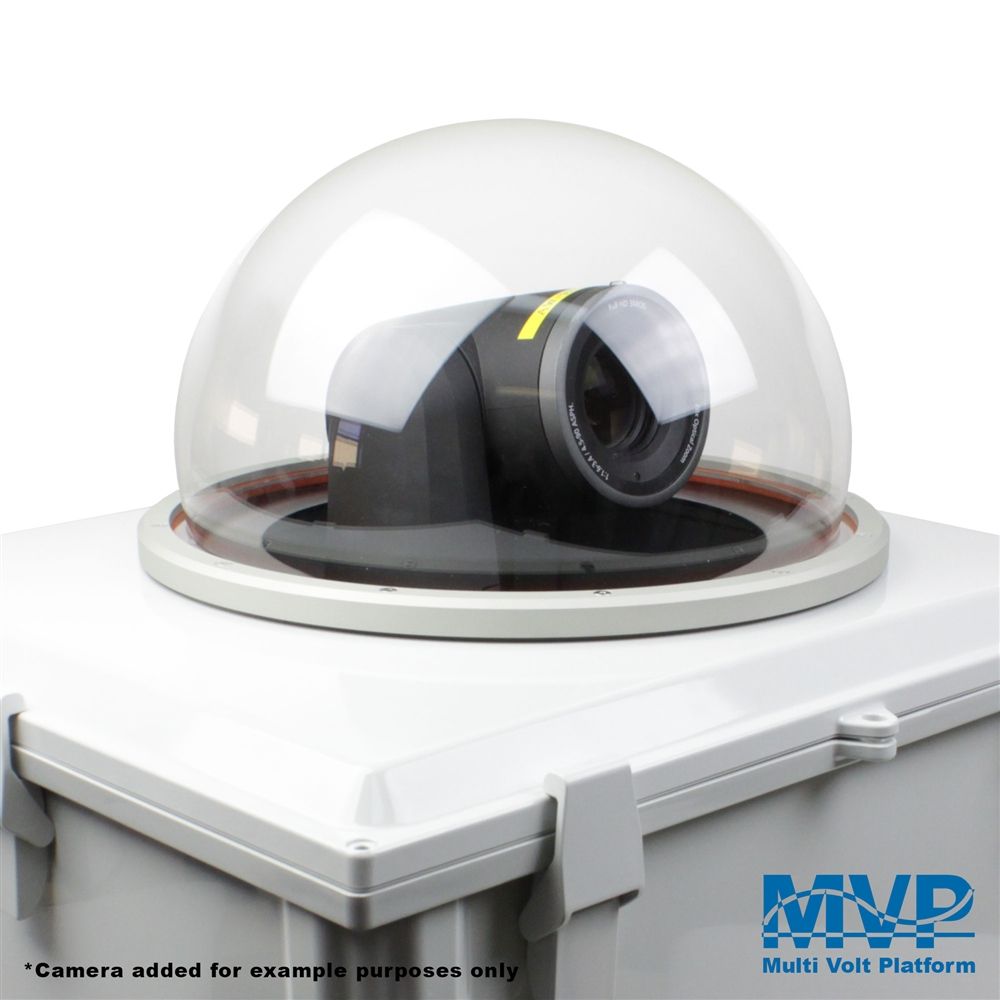

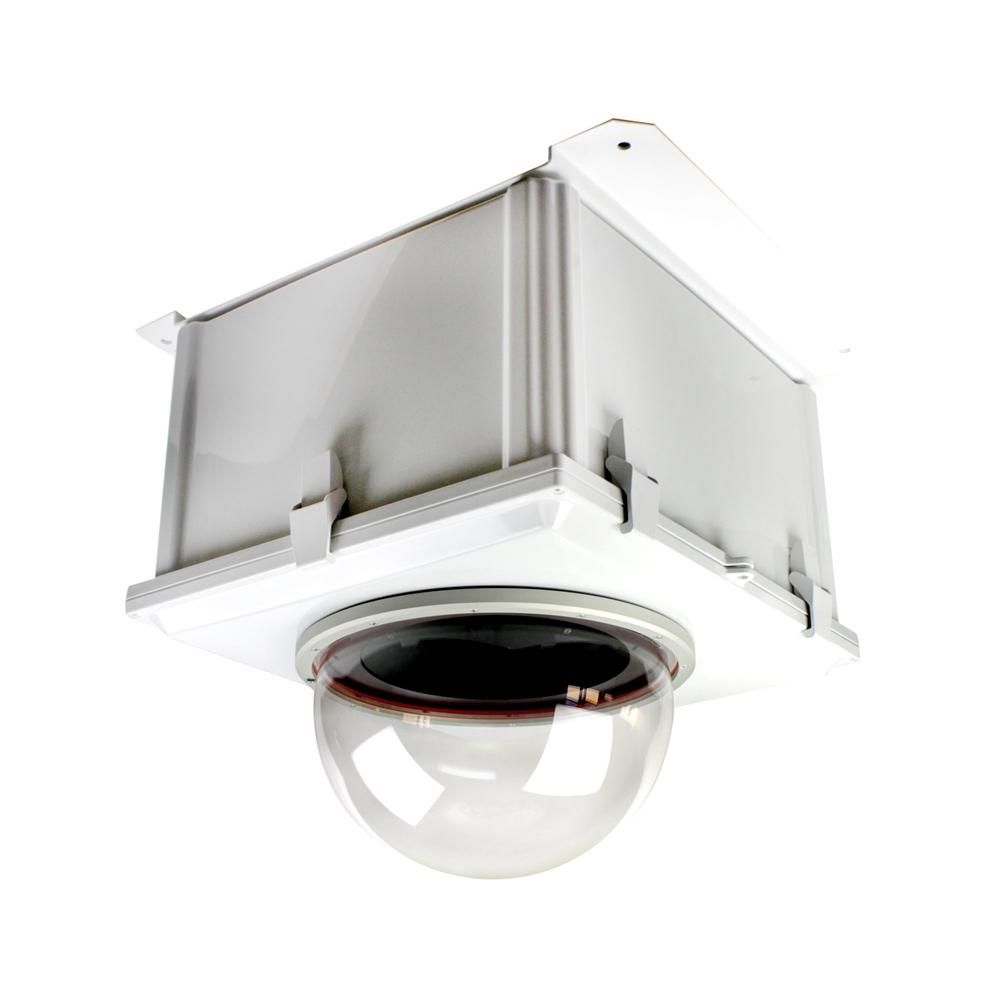

Dotworkz HD12-HB-MVP Broadcasting Camera Enclosure
SKU
HD12-HB-MVP
Model No
HD12-HB-MVP
$3,599.00
Product Highlights
- Power conversion from 120 VAC standards to 12 VDC input for HD cameras and temperature control electronics
- 4 cable egress locations with various gland options for multiple reliably sealed connections

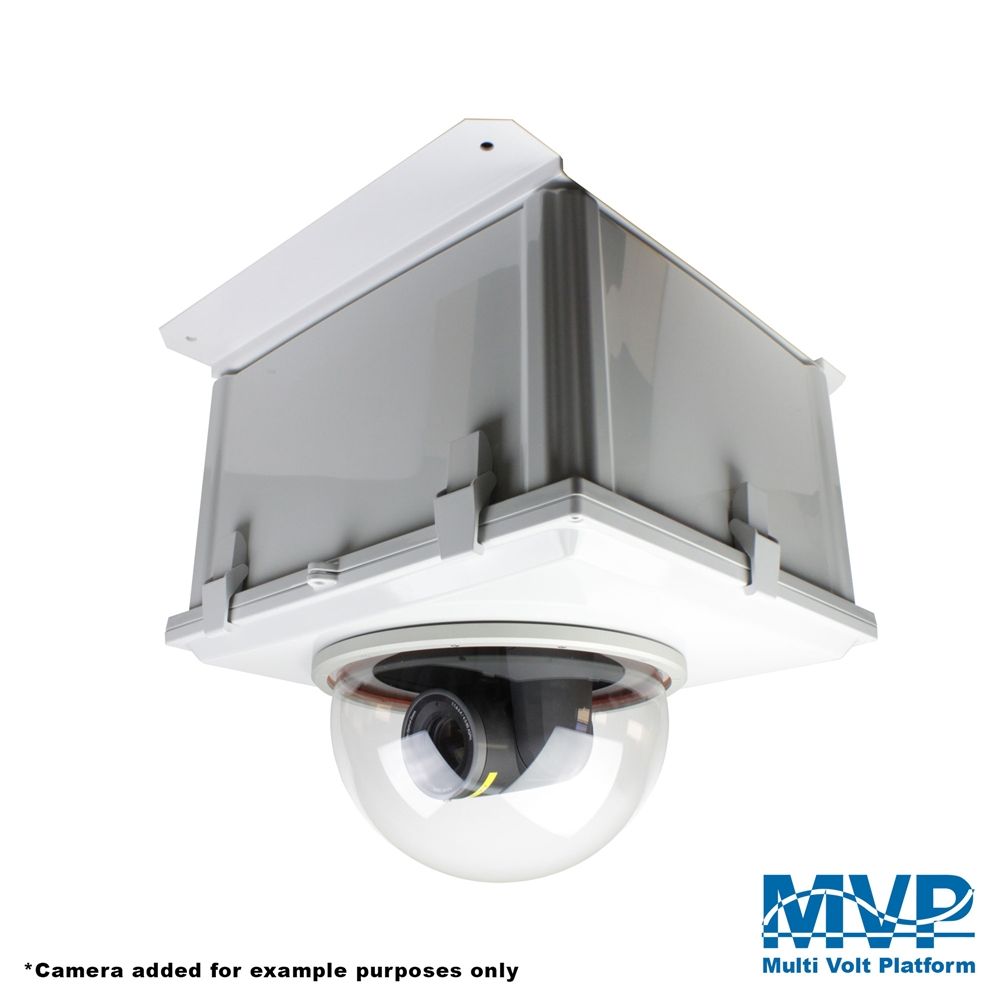

- Several mounting options from pendant mounted to wall mounted to pole mounted (shown on left)
- Extended temperature range with both active heating and active cooling technology in one complete system
- Large dome lens maximizes viewing angles in all directions
Speak to an expert
The HD12-HB-MVP from Dotworkz is a product line that consists of large scale, outdoor housings designed to protect broadcast quality PTZ cameras from the harshest environmental conditions. With combined heater/blower technology, the HD12-HB-MVP is designed to exceed IP66/NEMA 4X standards for ingress protection, providing excellent protection from water, dust, corrosion, and insects.
Dotworkz HD12-HB-MVP Key Features
- Power Conversion: Converts from 120 VAC to 12 VDC for optimal camera and electronic performance.
- Cable Egress: Equipped with 4 cable egress locations offering various gland options for reliably sealed connections.
- Mounting Versatility: Supports multiple installation options including pendant, wall, and pole mounting for flexible deployment.
- Active Temperature Control: Features both heating and cooling systems, ensuring optimal performance across a wide temperature range.
- Large Dome Lens: Maximizes viewing angles for comprehensive surveillance coverage in all directions.
Dotworkz HD12-HB-MVP Detailed Specifications
| Ingress Protection | IP66/NEMA 4X |
| Input Voltage | 120 VAC to 12 VDC |
| Temperature Range | Extended range with active heating and cooling |
| Cable Egress Locations | Four with various gland options |
| Mounting Options | Pendant, wall, and pole mounted |
| Lens Type | Large dome for wide viewing angles |
SKU  | HD12-HB-MVP |
|---|---|
| Manufacturer | Dotworkz |
| Form | PTZ |
| Mount Type | Pole, Wall |
Outdoor Use  | Yes |
| Outdoor Type | Heater & Blower |
| Glass Color | Clear |
| Power Output | 12vDC, 120 VAC |
| Dimensions | 20” x 22” x 30” |
| Environment | Outdoor |
| Pendant Mount Bracket | Yes |
| Color | White |
