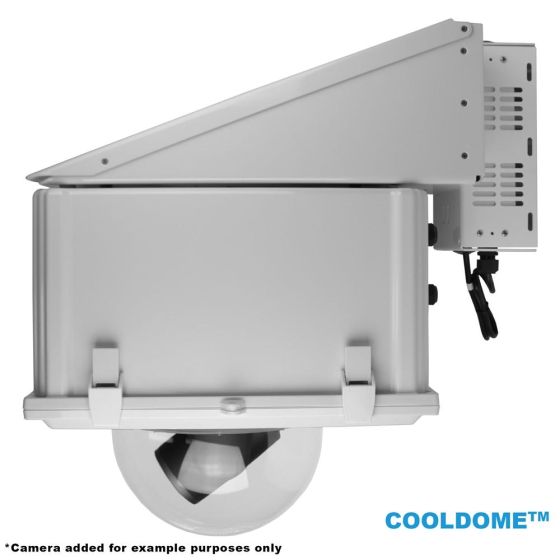

Dotworkz HD12-CD Active Cooling Broadcasting Camera Enclosure
SKU
HD12-CD
Model No
HD12-CD
$3,598.95
Product Highlights
- Power conversion from 120 VAC standards to 12 VDC input for HD cameras and temperature control electronics
- 4 cable egress locations with various gland options for multiple reliably sealed connections
- Several mounting options from pendant mounted to wall mounted to pole mounted (shown on right)
- Extended temperature range with both active heating and active cooling technology in one complete system
- Large dome lens maximizes viewing angles in all directions
Speak to an expert
The HD12-CD from Dotworkz is a product line consists of large scale, outdoor housings that are designed to protect broadcast quality PTZ cameras from the harshest environmental conditions. With combined CoolDome technology, the HD12-CD is designed to exceed IP66/NEMA 4X standards for ingress protection, providing excellent protection from water, dust, corrosion, and insects.
Dotworkz HD12-CD Features
- Power Conversion: Converts 120 VAC standards to 12 VDC input to support HD cameras and temperature control electronics, ensuring safe and efficient operation.
- Cable Egress: Offers 4 cable egress locations with various gland options for multiple reliably sealed connections, facilitating versatile installation setups.
- Mounting Options: Compatible with several installation methods from pendant mounted to wall mounted to pole mounted, providing flexibility based on user preferences.
- Temperature Control: Features active heating and active cooling technology in one complete system for an extended temperature range, helping to maintain optimal camera performance in varying climates.
- Large Dome Lens: Designed with a large dome lens that maximizes viewing angles in all directions, ensuring comprehensive surveillance coverage.
Dotworkz HD12-CD Detailed Specifications
| Ingress Protection Standard | IP66/NEMA 4X |
| Power Input | 120 VAC to 12 VDC |
| Temperature Range | -40°F to 140°F |
| Cable Egress Options | 4 locations with gland options |
| Mounting Types | Pendant, Wall, Pole |
| Lens Type | Large dome lens |
SKU  | HD12-CD |
|---|---|
| Manufacturer | Dotworkz |
| Form | PTZ |
| Mount Type | Pole, Wall |
Outdoor Use  | Yes |
| Outdoor Type | Cooling System |
| Glass Color | Clear |
| Power Output | 12vDC, 120 VAC |
| Dimensions | 18.7” x 19.7” x 27.4” |
| Environment | Outdoor |
| Pendant Mount Bracket | Yes |
| Color | White |
