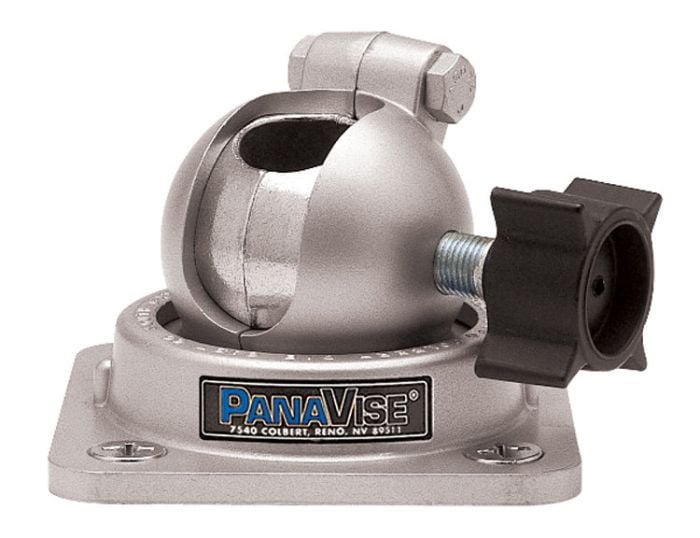

Panavise 400 Heavy Duty Base
SKU
400

Panavise Model 400

Panavise 400 Heavy Duty Base

Free shipping over $450
Model No
400
$40.49
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Allows the 400 Base to support weights up to 75 lbs. (34.0kg) at 45"
  • Recommended for use with the 437 Heavy Duty Fixturing Head
  • Accepts any 1" (25.4mm) diameter shaft to a depth of 1.7" (43.2mm)
  • Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
  • Height: 3.25" (82.5mm), Weight: 1.5 lbs. (0.7kg)

Overview

The Panavise 400 Heavy Duty Base is engineered for reliability and versatility, designed to work seamlessly with the 437 Heavy Duty Fixturing Head. This robust base can support substantial weights and offers enhanced movement control, making it ideal for various applications in both professional and hobbyist settings.

Panavise 400 Heavy Duty Base Features

  • Weight Capacity: Supports weights up to 75 lbs. (34.0kg) at a height of 45", ensuring stable performance even under heavy loads.
  • Recommended Fit: Optimally designed to be used with the 437 Heavy Duty Fixturing Head for enhanced compatibility and functionality.
  • Shaft Acceptance: Accommodates any 1" (25.4mm) diameter shaft to a depth of 1.7" (43.2mm), providing flexibility for various applications.
  • Movement Control: Features a single knob that controls head movement through 3 planes: 90° Tilt, 360° Turn & 360° Rotation, allowing precise positioning.
  • Base Dimensions: Square base measuring 4.125"x 4.125" (104.8mm x 104.8mm) with four 0.3125" (7.9mm) mounting holes for secure installation (mounting screws not included).
  • Permanently Attachable: Includes a hole in the bottom for a 1/4-20 flat head screw, enabling permanent attachment of any shaft.
  • Compact Size: Height of 3.25" (82.5mm) and light weight of 1.5 lbs. (0.7kg), making it portable and easy to use.

Panavise 400 Heavy Duty Base Specifications

FeatureDescription
Weight Capacity75 lbs. (34.0kg)
Recommended Head437 Heavy Duty Fixturing Head
Shaft Diameter & Depth1" (25.4mm) diameter, 1.7" (43.2mm) depth
Movement Control90° Tilt, 360° Turn & 360° Rotation
Base Size4.125"x 4.125" (104.8mm x 104.8mm)
Mounting HolesFour 0.3125" (7.9mm) holes
Permanently Attachable1/4-20 flat head screw hole
Height3.25" (82.5mm)
Weight1.5 lbs. (0.7kg)

Specifications

SKU  400
Manufacturer  Panavise
