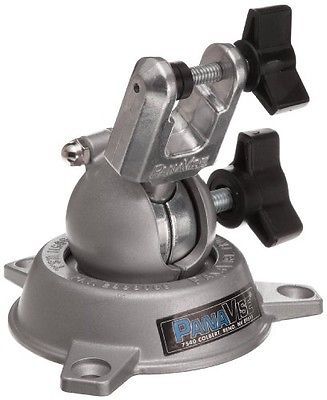

Panavise 391 Micrometer Stand Combination
Model No
391
$60.49
Product Highlights
- Gently, yet firmly, holds micrometers of all sizes. Can also hold small PC boards and other objects
- Delrin™pads open 0.5" (12.7mm) and close to 0" for holding thin items
- Throat depth: 0.95" (24.1mm)
- Single control knob and exclusive "split-ball" lock Head firmly in place
- Base accepts all 300 series vise Heads
Speak to an expert
The 391 from Panavise is a micrometer stand combination that gently and yet firmly, holds micrometers of all sizes. It can also hold small PC boards and other objects. In 391 the single control knob and exclusive “split-ball” lock Head firmly in place and the base accepts all 300 series vise Heads.
Features
- Gently Holds: Gently, yet firmly, holds micrometers of all sizes while also accommodating small PC boards and other objects for versatile use.
- Delrin™ Pads: The Delrin™ pads open to 0.5" (12.7mm) and close to 0" for secure holding of even the thinnest items.
- Throat Depth: Offers a throat depth of 0.95" (24.1mm) to provide ample support for various applications.
- Single Control Knob: The single control knob and exclusive "split-ball" lock head ensures a firm and stable grip.
- Base Compatibility: The base accepts all 300 series vise heads, maximizing compatibility and functionality.
- Screw Hole Specifications: Features a base with a 4.3125" (109.5mm) bolt circle that is countersunk for three 1/4" (6.3mm) flat-head screws (not included) for secure mounting.
Panavise 391 Micrometer Stand Combination Specifications
| Feature | Details |
|---|---|
| Model | Panavise 391 |
| Holding Capacity | Micrometers of all sizes, small PC boards |
| Pad Opening | 0.5" (12.7mm) maximum, closes to 0" |
| Throat Depth | 0.95" (24.1mm) |
| Control Mechanism | Single control knob with "split-ball" lock head |
| Base Features | Accepts all 300 series vise heads, 4.3125" bolt circle |
| Screw Mounting | Countersunk for three 1/4" flat-head screws (not included) |
SKU  | 391 |
|---|---|
| Manufacturer | Panavise |
