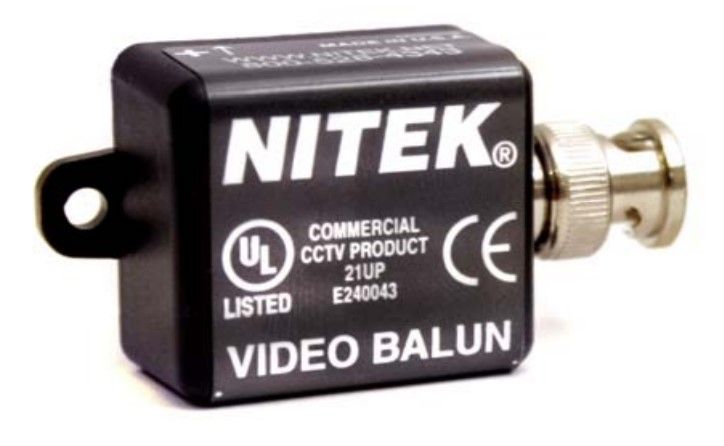

Nitek VB39M Video Twisted Pair Passive Balun Male BNV Connector with Surge Protector

The HD VB39M video balun transceiver has been designed to meet the needs of the HD TVI/CVI/AHD cameras. The HD VB39M is a video transmission device that provides a low cost means of sending live video over unshielded twisted pair, point-to-point wiring for distances up to 225 meters or 750 feet. The HD VB39M is compatible with all of the “up-thecoax” control systems. A basic system uses (2) HD VB39 units, one at each end of a twisted pair of wires. These units are intended for use over existing in-house telephone wiring, Category wiring or other twisted pair cable runs to provide a convenient, costeffective alternative to coax. The HD VB39M is designed to provide superior immunity from noise and interference even when running next to line power!

Features

• Works with any HD TVI/CVI/AHD or NTSC and PAL
• Quality video over ordinary twisted pair cable
• Immunity to noise and interference
• Built-in surge suppression
• Passive devices-do not require power
• Video and P/T/Z over a single pair (with “up-the- coax” systems)
• Mounts directly to camera or video source
• Weather resistant design
