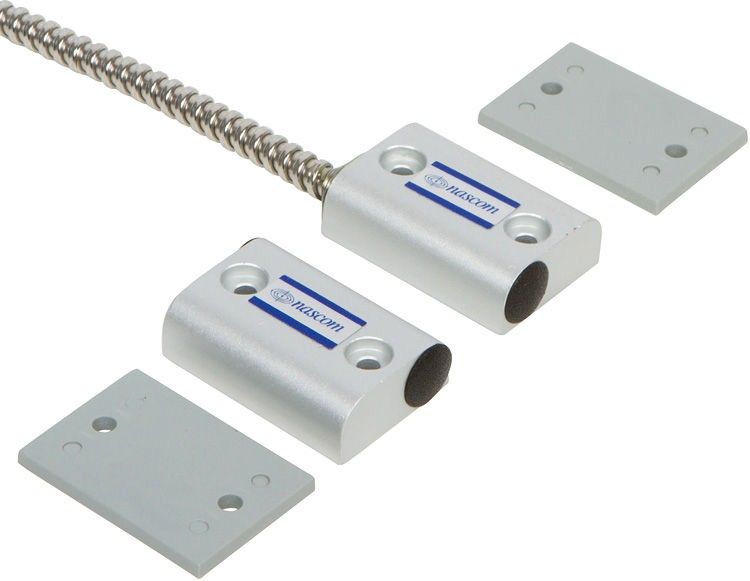

Nascom N505AS-STDD N505AS Short Double Pole Double Throw Set

The N505AS-STDD from Nascom is a N505AS short double pole double throw set. Nascom’s N505AS is a short, 2" block switch, designed for man doors. It combines the installers’ choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. The closed loop version of the N505AS prevents false alarms caused by warping or shifting of doors and features our unique NO DEAD SPOT technology.

Nascom N505AS-STDD Features

• No Dead Spot Technology: Eliminates false alarms, ensuring reliability in various door conditions.
• 24" Armored Cable Lead Protection: Provides durability and security for the cable connections, minimizing damage risks.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Enhances gap performance, allowing for flexibility in installation.
• 36" 22AWG Wire Leads: Ensures ample length for versatile installation options.
• Listed To UL634 Standard: Complies with safety regulations, guaranteeing quality and performance.
• Extruded Anodized (Type II) Aluminum: Offers superior corrosion resistance and durability for long-lasting use.

Nascom N505AS-STDD Detailed Specifications
