Bosch B5512-C Kit Includes B5512, B10, CX4010
- Supports up to 48 points using a combination of hardwired or wireless points for installation flexibility and up to 4 areas with perimeter and interior control
- On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP, and Universal Plug and Play
- Notifications with email and text messaging, and the Remote Security Control app for Android and iOS mobile devices
- Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy

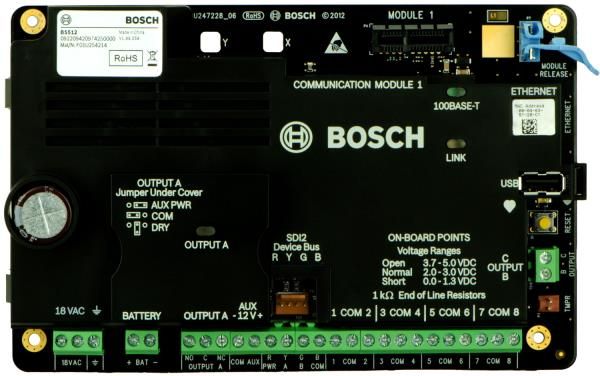

The B5512 Control Panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B5512 provides up to 48
individually identified points that can be split into 4 areas. The control panel includes a built-in Ethernet port for IP network communications, and is compatible
with modules that send events to selected public switched telephone network (PSTN), IP network, or cellular network destinations through four programmable
route groups. With the B5512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a
personalized passcode, a wireless keyfob, and a credential to control the system.
The B10 is a white enclosure made of cold-rolled steel that is 1.0 mm (20 gauge) thick. It is compatible with D101, D110, ICP-EZTS.

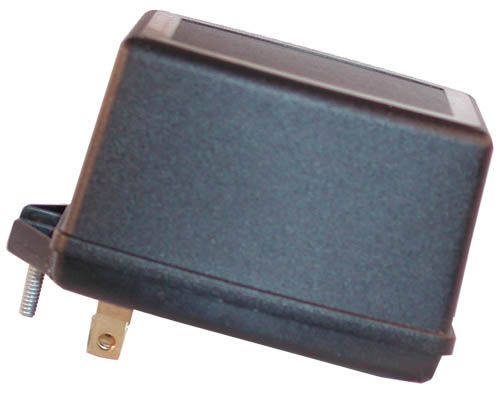

The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.
B5512 Features
- Supports up to 48 points using a combination of hardwired or wireless points for installation flexibility and up to 4 areas with perimeter and interior control
- On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP, and Universal Plug and Play
- Installer-friendly features including on-board USB for easy on-site RPS programming, plus plug-in PSTN and Cellular communication modules for simple installation and future proof upgrades
- Notifications with email and text messaging, and the Remote Security Control app for Android and iOS mobile devices
- Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy
B10 Features
- B10 Medium Control Panel Enclosure
CX4010 Features
- CX4010 Plug-in Transformer
