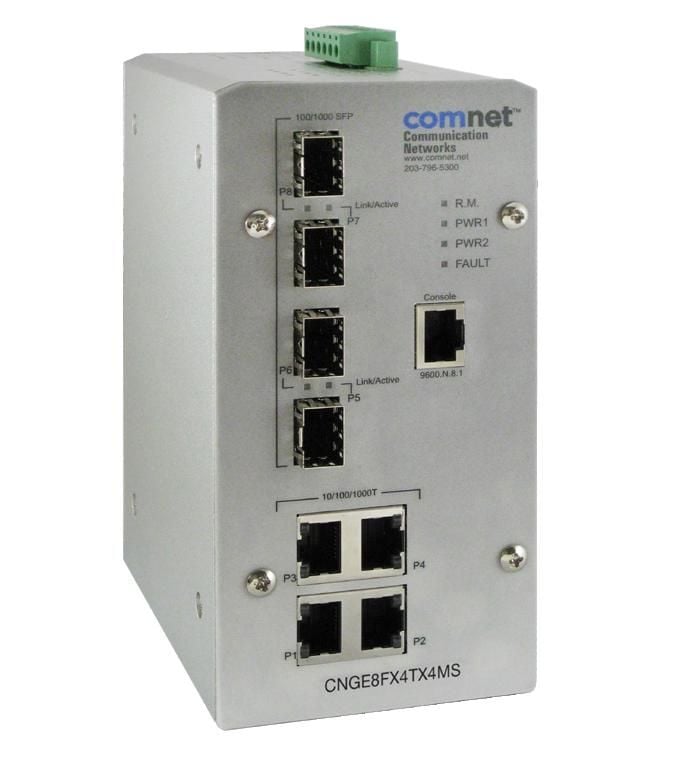

Comnet CNGE8FX4TX4MS Hardened 8 Port 1000Mbps Managed Switch

The ComNet™ CNGE8FX4TX4MS Managed Ethernet Switch provides transmission of (4) 100/1000 BASE-TX and (4) 10/100/1000FX combo ports. Unlike most Ethernet switches, these environmentally hardened units are designed for deployment in difficult operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Ports 1 – 4 support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Ports 5 – 8 are 10/100/1000 configurable for copper or 100/1000 fiber media for use with multimode or single mode optical fiber without need for configuration, selected by optional SFP modules. These network managed layer 2 switches are optically and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required.

Features

• Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Extended ambient operating temperature range: -40˚ C to +75˚ C (Functional to 85ºC)
• 10/100/1000 BASE-TX and 100/1000 BASE-FX compatible
• Flexible optics configuration via SFP plug-in modules
• Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
• Fully configurable through web-based or SNMP network management
• IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
• Port based VLAN (IEEE 802.1Q)
• Rapid Spanning Tree protocol (IEEE 802.1W)
• Port Based Security
• Power Supply Included
