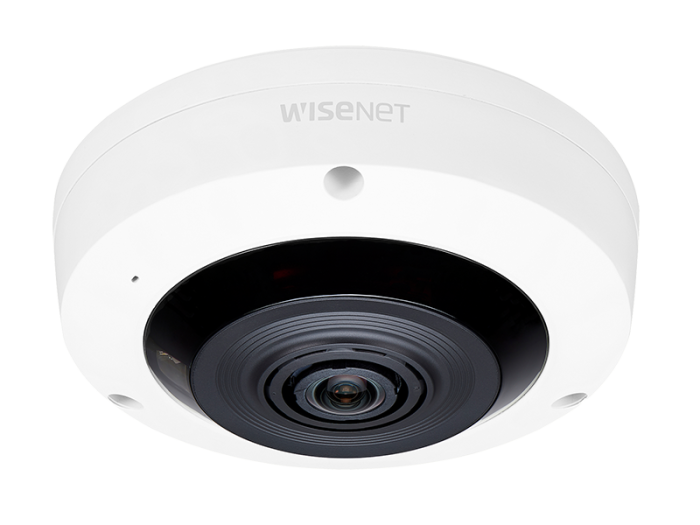

Samsung XNF-8010RW X Series 6 Megapixel Indoor IR Fisheye Camera, 1.6mm Lens, White
SKU
XNF-8010RW
Model No
XNF-8010RW
$615.09
Product Highlights
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
- On board dewarping, Digital PTZ (8x), Bi-directional audio
- True WDR (120dB), WiseStream II support
Speak to an expert
X Series 6 Megapixel Indoor IR Fisheye Camera, 1.6mm Lens, White
- The Hanwha Vision XNF-8010RW X Series is a cutting-edge indoor IR fisheye camera designed for comprehensive surveillance with its 6 megapixel resolution and advanced features. With a 1.6mm lens providing a 192° field of view, you can monitor large areas seamlessly. Its powerful IR capabilities, coupled with intelligent video analytics, make it an ideal choice for effective security without missing any details.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
WDR
Camera Features
| Max. 2048 x 2048 resolution | Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management |
| H.265, H.264, MJPEG codec supported | Motion detection, Handover |
| Variable view mode (Fisheye, Single panorama, Double panorama, Quad view) | SD / SDHC / SDXC memory slot (Max. 512GB), 12V DC / PoE |
| On board dewarping, Digital PTZ (8x), Bi-directional audio | IR viewable length 15m (49.21ft) |
| True WDR (120dB), WiseStream II support |
Additional Hanwha Vision Products
SKU  | XNF-8010RW |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Ceiling |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø146 x 54.8mm (Ø5.75" x 2.16") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/1.8" 6M CMOS |
| Image Pixels Total | 3,096 (H) x 2,094 (V) |
| Minimum Scene Illumination | Color: 0.1 Lux (F1.6), B/W: 0 Lux (IR LED On) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| OSD Menu | Off / On (32ea, polygonal) |
| Power Consumption | Max. 11W (12V DC), Max. 12W (PoE) |
| Protocols | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| S/N Ratio | 50dB |
| Scanning System | Progressive |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 192˚ / V: 192˚ / D: 192˚ |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones), Handover |
| Back Light Compensation | Off / BLC / HLC / WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| IR Distance | 15m/49.21ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
