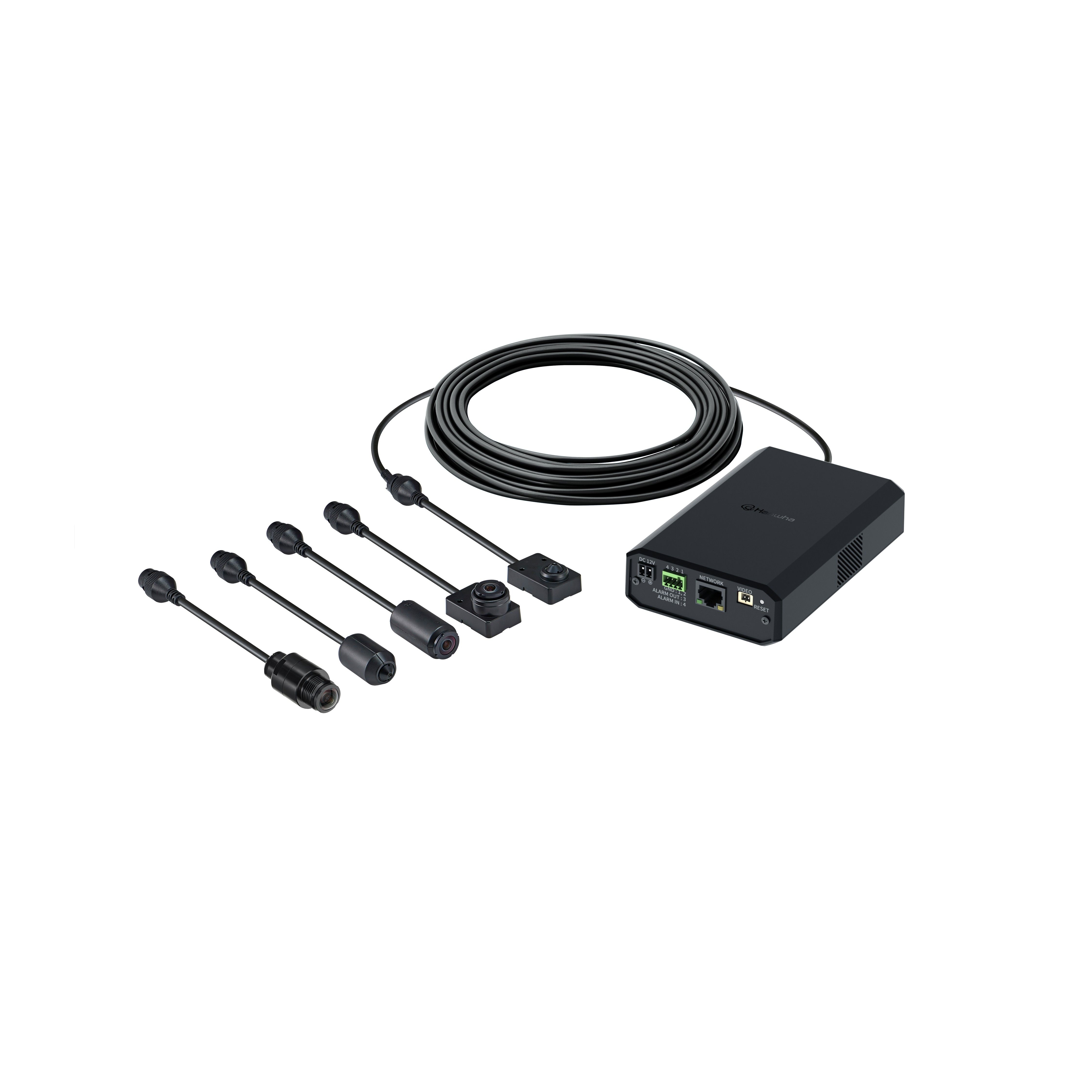

Hanwha Vision XNB-6002-KEX 2 Megapixel Network IP Remote Head Camera
SKU
XNB-6002-KEX
Model No
XNB-6002-KEX
$469.00
Product Highlights
- OnCloud compatible
- 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- 60fps@2MP (H.265 / H.264)
- extremeWDR (120dB), Defog, DIS
Speak to an expert
2 Megapixel Network IP Remote Head Camera
- The Hanwha Vision XNB-6002-KEX is a discreet remote head camera body powered by Wisenet 7, engineered for environments where unobtrusive surveillance is essential. Delivering 2MP Full HD (1080p) at 60fps with 120dB WDR, it ensures crisp, clear video even in challenging lighting conditions.
With advanced video analytics, sound classification, and business intelligence tools, the XNB-6002-KEX transforms monitoring into actionable insights. Built for flexibility, it supports WiseStream II compression, micro SD storage, and versatile power options (12VDC/PoE). Installation is effortless with a USB port, while features like hallway view, HLC, defog detection, and DIS stabilization enhance adaptability.
Security is reinforced with TPM 2.0 (FIPS 140-2 level 2), ensuring trusted data protection. Compatible with multiple lens modules (SLA-T2480A, SLA-T2480AV, SLA-T4680A, SLA-T4680AV, SLA-T1080FA), it offers tailored solutions for diverse applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Facial Recognition
Camera Features
| OnCloud compatible | Advanced video analytics and sound classification and business analytics |
| 2 Megapixel (1920 x 1080) resolution | microSDXC Memory slot (Maximum 1 x 1TB) , Hallway View, WiseStream II |
| H.265, H.264, MJPEG codec support, Multiple streaming | LDC, PoE / 12V DC, Bi-directional audio support |
| 60fps@2MP (H.265 / H.264) | TPM 2.0 (FIPS 140-2) |
| extremeWDR (120dB) , Defog, DIS | Optional lenses required, compatible lens modules (SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2880BA, SLA-H-4680VA, SLA-T4680DA, SLA-T4680DSA) |
Additional Hanwha Vision Products
SKU  | XNB-6002-KEX |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | 131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39") |
| Electronic Shutter | 2~1/12,000sec |
| Operating Humidity | 0~90% RH(non-condensing) |
| Operating Temperature | -10°C~+55°C(+14°F~+131°F) |
| Power Consumption | PoE: Max 10.5W, typical 6.9W 12VDC: Max 8.6W, typical 5.5W Power redundancy failover |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Digital Noise Reduction | WiseNR, SSNRⅤ |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XNB-6002-KEX-Specsheet XNB-6002-KEX-Quick-Start-Guide XNB-6002-KEX-User-Manual
