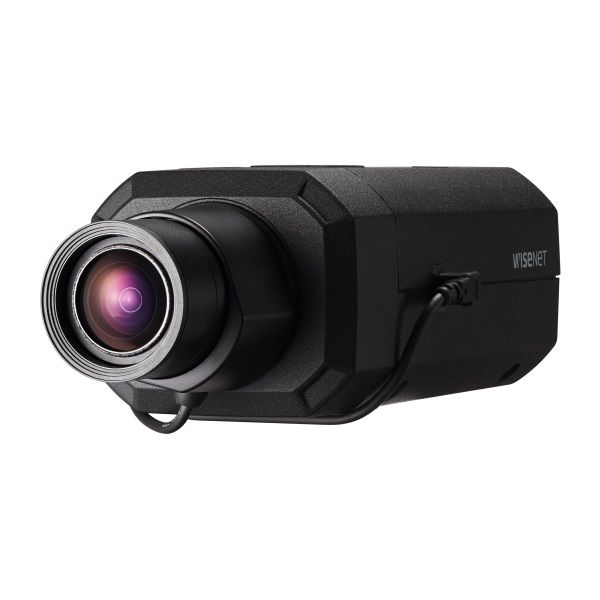

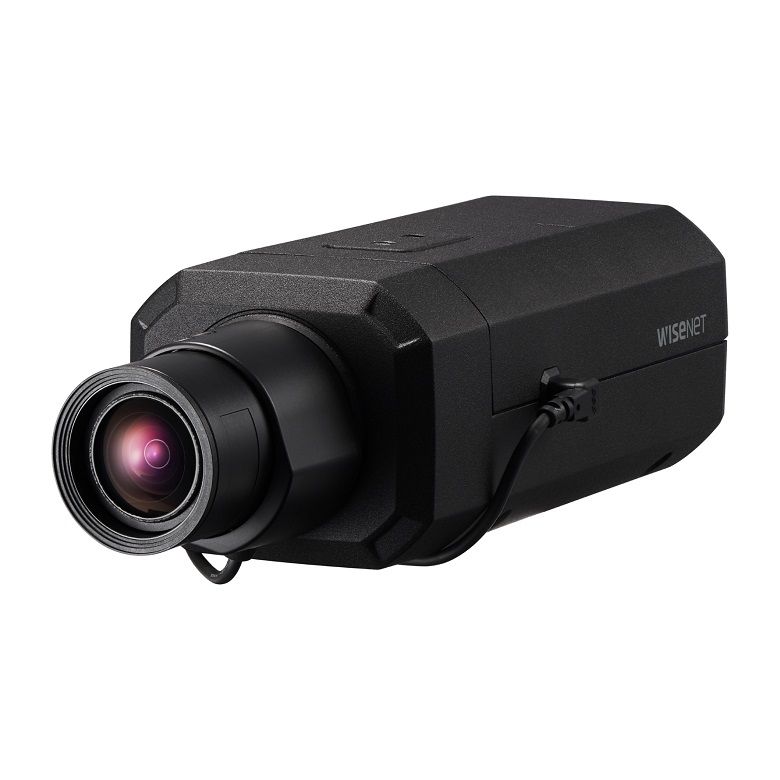

Samsung PNB-A9001 4K Indoor Network Box Camera
SKU
PNB-A9001
Model No
PNB-A9001
$878.70
Product Highlights
- Up to 3840x2160 4K resolution
- [email protected](Color)
- Day & Night(ICR), WDR(120dB)
- H.265, H.264, MJPEG codec, WiseStream ?
- Video Analytics based on AI
Speak to an expert
4K Indoor Network Box Camera
- The Hanwha Vision PNB-A9001 4K Indoor Network Box Camera is a high-performance surveillance solution that delivers exceptional image quality with 4K resolution at 30fps. It is equipped with advanced features such as AI-based video analytics, true day/night capabilities, and dual SD card support, making it ideal for both security and business intelligence applications. Its user-friendly installation and powerful analytics features ensure that you can monitor your premises effectively and efficiently.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
4K Resolution
Camera Features
| Up to 3840x2160 4K resolution | Attribute, BestShot |
| [email protected] (Color) | Compatible with Wisenet Retail Insight v2.0 for Business Intelligence |
| Day & Night (ICR), WDR (120dB) | Age/gender based People counting |
| H.265, H.264, MJPEG codec, WiseStream ? | Heatmap |
| Video Analytics based on AI | Queue management |
| Object detection and classification (Person, Face, Vehicle, License Plate) |
Additional Hanwha Vision Products
SKU  | PNB-A9001 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | 81x67x165mm(3.19x2.64x6.48") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/1.8" 8MP CMOS |
| Image Pixels-Effective | 3864(H)x2180(V) |
| Minimum Scene Illumination | Color: 0.03Lux(F1.2, 1/30sec) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C(+14°F ~ +131°F) |
| Power Consumption | PoE+: Maximum 16.50W, typical 12.50W; 12VDC: Maximum 13.50W, typical 10.80W |
| Privacy Zone | 6ea, rectangle zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Video Output | RJ-45 |
| Motion Detection Tracking | 8ea, polygonal zones |
| Automatic White Balance | Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
