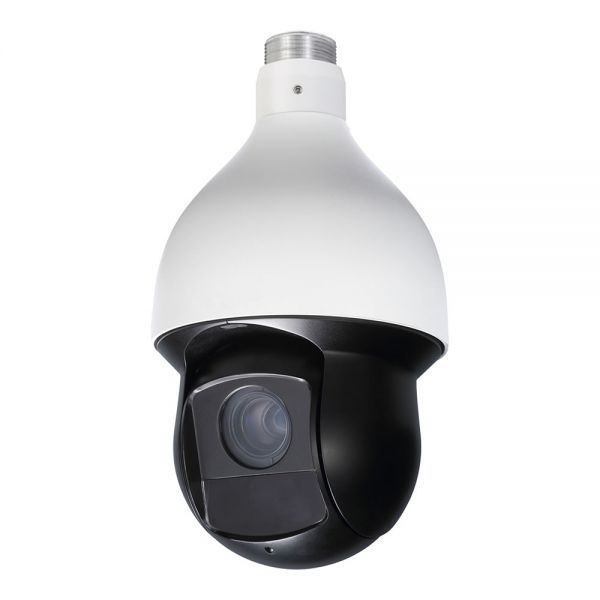

ENS PDC59I430H 4 Megapixel HDCVI Outdoor IR PTZ Camera, 30X Lens
SKU
PDC59I430H
Model No
PDC59I430H
$989.95
Product Highlights
- 1/3" 4 Megapixel CMOS
- Powerful 30x optical zoom
- 120dB true WDR, 3D DNR
- Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
- IR distance up to 100m

Speak to an expert
The PDC59I430H from ENS is a 4 MP Outdoor IR PTZ HDCVI Camera, 30X Lens. Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the SD59 series PTZ camera provides a large monitoring range and great detail. With its 4MP resolution at 25/30 fps and exceptional low light performance due to advanced starlight technology, this camera is equipped for smooth control, high-quality image output, and robust protection, making it ideal for various video surveillance applications.
ENS PDC59I430H Camera Features
- 1/3" 4 Megapixel CMOS: Provides high-resolution images for detailed monitoring.
- Powerful 30x optical zoom: Enables extensive zoom capabilities to capture distant objects clearly.
- 120dB true WDR, 3D DNR: Enhances image clarity in varied lighting conditions, ensuring clear video quality.
- Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P: Offers flexibility in frame rates for smooth video playback.
- IR distance up to 100m: Enables night vision capabilities for reliable surveillance in low light environments.
- IP66: Ensures protection against dust and heavy rain, suitable for outdoor use.
Detailed Specifications for ENS PDC59I430H
| Feature | Details |
|---|---|
| Resolution | 4 Megapixel |
| Sensor Type | 1/3" CMOS |
| Optical Zoom | 30x |
| WDR | 120dB True WDR |
| Frame Rate | 25/30fps@4M/1080P, 25/30/50/60fps@720P |
| IR Distance | Up to 100m |
| Ingress Protection | IP66 |
| SKU | PDC59I430H |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ENS |
| Camera Signal | Analog, HD-CVI |
| Resolution | 2592 X 1520 |
| Sensor Option | 1/3" CMOS |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Pendant |
| Voltage | 24vAC |
| Electronic Shutter | PAL: 1/3s~1/30,000s; NTSC: 1/4s~1/30,000s |
| Image Device | 1/3" CMOS |
| IR Distance | 100m/328ft |
| Minimum Scene Illumination | Color: [email protected], [email protected] (IR on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -40°C ~ +70°C (-40°F ~ +158°F) |
| Dimensions (W x H) | ⌀186mm x309mm |
| Power Consumption | 13W, 23W (IR on) |
| Privacy Zone | Up to 24 areas |
| S/N Ratio | More than 55dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Ultra DNR (2D/3D) |
| Angle of View | H: 60° ~ 2.2° |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Auto Gain Control | Auto / Manual |
| IR LEDs | 4 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
