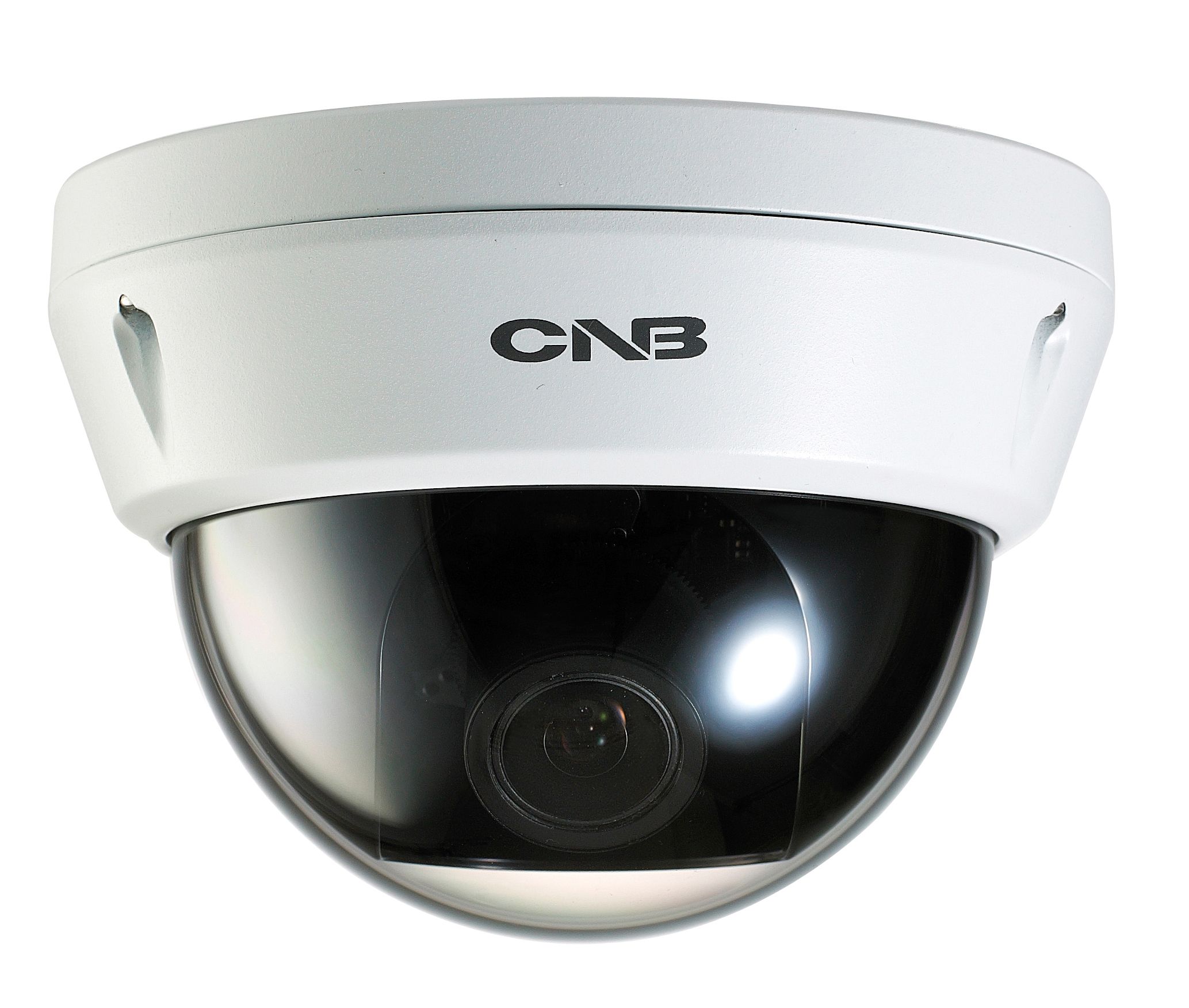

CNB NV25-1MH Full HD Vandal Dome MFZ Network IP Camera

SKU
NV25-1MH
Model No
NV25-1MH
$314.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Full HD Vandal Dome MFZ IP Camera
  • 1/3″ Progressive scan CMOS Sensor
  • Dual-Codec (H.264/MJPEG)
  • Progressive scan megapixel (2M CMOS)
  • Multi profile streaming (5 different streams per Resolution, Frame, Rate, Codec)

CNB NV25-1MH is a Dual-Codec (H.264/MJPEG) 2 megapixel IP camera with vandal proof housing for indoor and outdoor applications. Multiple simultaneous video streams of differentiated resolutions and frame rates will ensure highest quality service while enabling simultaneous connections through lower speed networks. Dark Hunter technology is the most optimized solution for indoor and outdoor surveillance in low-light sensitivity ISP sensor. Dark Hunter is especially beneficial in poor lighting environments, efficiently reducing noise and ghosting while maintaining a color image without the use of IR LEDs.

CNB NV25-1MH Camera Features

  • Full HD Vandal Dome MFZ IP Camera: High-definition video quality ensures clear monitoring and recording.
  • 1/3” Progressive scan CMOS Sensor: Superior image quality during both day and night conditions for reliable surveillance.
  • Dual-Codec (H.264/MJPEG): Flexible video compression formats allow optimal bandwidth usage and storage efficiency.
  • Progressive scan megapixel (2M CMOS): Enhanced image clarity with higher megapixel resolution for detailed surveillance footage.
  • Multi profile streaming: Offers 5 different streams per resolution, frame rate, and codec for customizable recording preferences.
  • Digital PTZ, video crop: Allows users to digitally pan, tilt, and zoom within the video stream for focused monitoring.
  • Analog video output (CVBS): Compatibility with traditional surveillance systems for versatile installation options.
  • Built-in standard PoE: Simplifies installation with Power over Ethernet technology, eliminating the need for separate power sources.
  • Two-way audio communication: Enables real-time communication, enhancing security measures.
  • Compact design & Easy installation: Space-saving design and straightforward setup process for quick deployment.
  • Vandal proof, Weather proof (IP66): Durable casing designed to withstand tough environments, ensuring long-lasting performance.
  • 3-Axis Lens mount: Precision positioning and adjustment for optimal camera angle settings.

CNB NV25-1MH Detailed Camera Specifications

FeatureDetails
Camera TypeFull HD Vandal Dome
Video Resolution2 Megapixels
Sensor Type1/3” Progressive Scan CMOS
Codec SupportH.264, MJPEG
Video Streams5 different streams per resolution, frame rate, codec
Audio SupportTwo-way communication
Protection RatingIP66 (Vandal and Weather Proof)
Installation TypeCompact and easy installation
Power SupplyBuilt-in standard PoE
Mounting3-Axis Lens mount
SKU  NV25-1MH
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  CNB
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC
Dimensions (W x H)  Ø100mm x 92mm
Image Device    1/3” Progressive scan CMOS Sensor
Minimum Scene Illumination  Dark Hunter Max - 0.0005 Lux
Operating Humidity    8 ~ 80% RH
Operating Temperature    -10℃ ~ 50℃
OSD Menu    English
Privacy Zone    ON / OFF (1 Programmable Zone)
Protocols  IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Weatherproof    IP66
Zoom Ratio    X1 ~ X12
Synchronization  Internal
Digital Noise Reduction    3D, 0~20
Mirror    H/ V/ Rotate
Wide Dynamic Range    ON / OFF
Motion Detection Tracking    ON / OFF (3 Programmable Zone)
Back Light Compensation  ON / OFF
Automatic White Balance    ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
