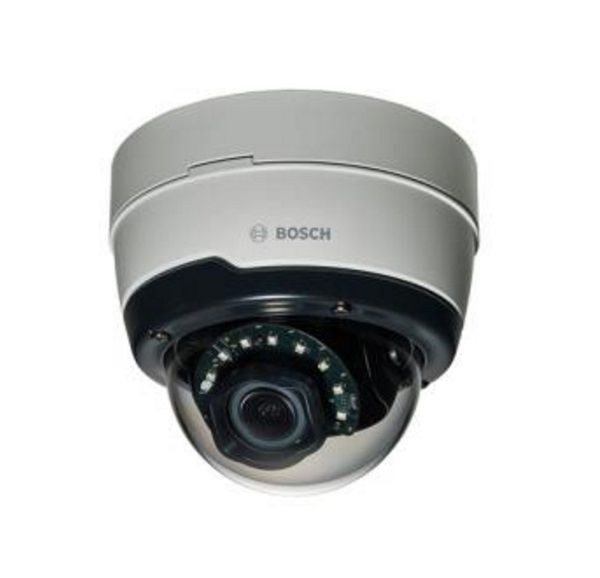

Bosch NDE-5503-AL 5 Megapixel HDR Outdoor Dome Camera, 3-10mm Lens
SKU
NDE-5503-AL
Model No
NDE-5503-AL
$847.17
Product Highlights
- Easy to install with auto zoom/focus lens, wizard and pre-configured modes
- Fully configurable H.265 multi-streaming
- 5MP resolution with image quality up to 30 fps for highly detailed images
- Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
- Extended Dynamic Range mode to see details in bright and dark areas simultaneously
Speak to an expert
Bosch NDE-5503-AL Outdoor Dome Camera Features
The NDE-5503-AL from Bosch is a vandal-resistant IP dome camera for outdoor MP surveillance with H.265, Essential Video Analytics and integrated infrared. It is fixed dome 5 megapixel HDR 3-10mm auto IP66. The 5MP outdoor dome cameras from Bosch are professional surveillance cameras that provide high quality images for demanding security and surveillance network requirements. These robust domes are true day/night cameras offering excellent performance day or night. There is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments.
Features
- Easy Installation: Easy to install with auto zoom/focus lens, wizard and pre-configured modes for rapid deployment.
- Multi-Streaming Capability: Fully configurable H.265 multi-streaming for efficient bandwidth management and video storage.
- High Resolution: 5MP resolution with image quality up to 30 fps for highly detailed images ensuring the clarity of surveillance footage.
- Advanced Video Analytics: Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data, enhancing security response times.
- Extended Dynamic Range: Extended Dynamic Range mode allows you to see details in both bright and dark areas simultaneously, improving visibility in diverse lighting conditions.
Bosch NDE-5503-AL Detailed Specifications
| Image Sensor | 5 Megapixel HDR |
| Lens | 3-10mm auto zoom/focus |
| Video Compression | H.265 |
| Video Analytics | Essential Video Analytics |
| Operating Environment | Outdoor IP66 rated |
| Performance | Up to 30 fps |
| Features | Integrated infrared, vandal-resistant design |
SKU  | NDE-5503-AL |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 145 x 131 mm (5.71x 5.14 in) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed (1/25[30] to 1/15000) selectable; Default shutter |
| Image Device | 1/2.9-inch CMOS |
| Image Pixels-Effective | 3072 (H) x 1944 (V) |
| IR LEDs | 10 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% to 93% RH non condensing, 5% to 100% RH condensing |
| Operating Temperature | -40 °C to +50 °C (-40 °F to +122 °F) |
| Power Consumption | DC: 7.15 W max., AC: 6.15 W max., PoE: 7 W max. |
| Privacy Zone | Eight independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | Audio: >50 dB, Video: >55 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Angle of View | Horizontal: 29° - 92°, Vertical: 18° - 50° |
| Back Light Compensation | On/off |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| IR Distance | 30m/98 ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
