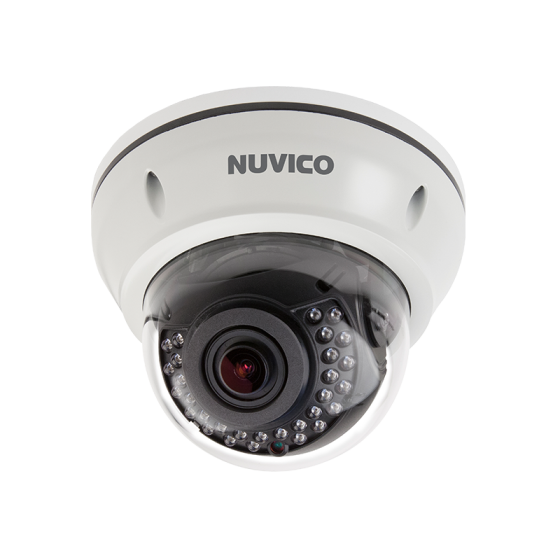

Nuvico NC-5M-OV3 5MP Flexible IP Vandalproof Dome

SKU
NC-5M-OV3
Model No
NC-5M-OV3
$252.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 3.6 mm, fixed lens
  • 30 IR LEDs (Up to 100ft.)
  • Digita l WDR
  • Built-in PoE / 12VDC
  • ONVIF verson 2.2

Nuvico NC-5M-OV3 5MP Flexible IP Vandalproof Dome offers superior surveillance solutions with its high-resolution video quality and durable design, making it ideal for both indoor and outdoor security needs.

Nuvico NC-5M-OV3 Camera Features

  • High Resolution: 10pp s @ 5MP, 15pps @ 3MP, 30pps @ 2MP or 1.3MP ensures clear and detailed image quality for reliable monitoring.
  • Fixed Lens: 3.6 mm lens provides a wide field of view, allowing effective coverage of large areas.
  • Day/Night Functionality: Equipped with ICR for optimal performance in varying lighting conditions, ensuring clarity at all times.
  • IR LEDs: 30 IR LEDs with a range of up to 100ft enhance night vision capabilities for complete 24/7 surveillance.
  • Back Light Compensation: BLC feature allows for better visibility in high-contrast lighting situations by adjusting the exposure.
  • Digital WDR: Digital Wide Dynamic Range technology improves image quality in environments with both bright and dark areas, providing balanced visuals.
  • Built-in PoE / 12VDC: Offers flexible power options to simplify installation while ensuring reliable operation.
  • ONVIF Compliance: Version 2.2 compliance ensures compatibility with various surveillance systems for seamless integration.
  • Built-in Web Server: Allows for easy resolution and bit-rate adjustments, giving users control over their surveillance settings.

Nuvico NC-5M-OV3 Detailed Specifications

Resolution5MP
Frame Rate10pp s @ 5MP, 15pps @ 3MP, 30pps @ 2MP or 1.3MP
Lens3.6 mm, fixed
IR RangeUp to 100ft
Day/Night FunctionalityICR
WDR TechnologyDigital WDR
Power SupplyBuilt-in PoE / 12VDC
Protocol ComplianceONVIF v2.2
Web ServerBuilt-in for resolution and bit-rate adjustment
SKU  NC-5M-OV3
Features  Auto Gain Control, Back Light Compensation, Digital Noise Reduction, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Nuvico
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Electronic Shutter    1/30 ~ 1/20,000 sec.
Image Device    1/3” CMOS
IR LEDs  30
Minimum Scene Illumination  0.8 Lux ( Color), 0.0 L ux (B/W)
Operating Humidity    Within 90% RH
Operating Temperature    -20ºF ~ 122ºF
Power Consumption  Up to 14W / 1A
Weatherproof    IP66
Angle of View    100°(W ) ~ 31.7º(T)
IR Distance  Up to 100ft.
Auto Gain Control    Yes
Day/Night    Yes
Back Light Compensation    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
