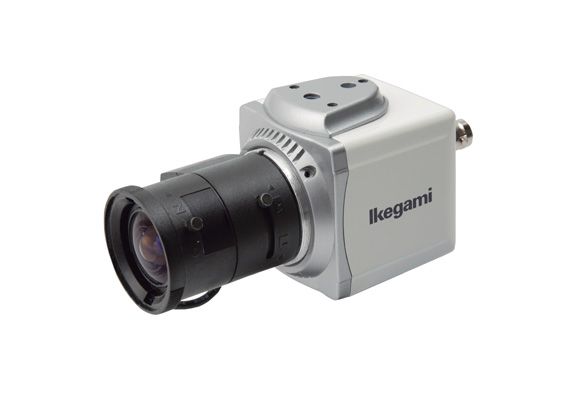

Ikegami ISD-A15S-TDN 700 TVL Hyper-Dynamic, High Resolution Compact Cube Camera, No Lens

SKU
ISD-A15S-TDN
Model No
ISD-A15S-TDN
$254.95
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control
  • Scene File Function (4 positions)

The Ikegami ISD-A15S-TDN is a cutting-edge compact cube camera that combines high resolution and superior image quality with a hyper dynamic light range for unparalleled clarity in challenging lighting conditions. Featuring advanced technology such as a 1/3-inch CMOS sensor, automatic white balance, and automatic sensitivity control, this camera ensures excellent performance whether indoors or outdoors. Its sleek and compact design makes it versatile for various installation scenarios, including ATMs and outdoor applications.

Ikegami ISD-A15S-TDN Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Effectively compensates for high light and dark areas, allowing for clear, natural images even in fluctuating lighting conditions.
  • Automatic White Balance: Self-adjusts to variable color temperatures for consistent color accuracy, ensuring that all images appear realistic.
  • Automatic Sensitivity Control: Optimizes brightness levels automatically, providing clear images even with fixed iris lenses.
  • Focus EZ Function: Ensures precise focusing with a Level Indicator and keeps the aperture open in daylight for the best depth of field.
  • Compact Body of Super Cube: Space-efficient design suitable for tight locations like ATM machines, allowing for flexible installation options.
  • High-quality Picture and High Resolution: Achieves images with minimal noise and high detail, with horizontal resolution of 480 TVL for sharp visuals.
  • Scene File Function (4 positions): Offers preset settings for various scenes, making it easy to adapt without requiring special adjustments.
  • Defog Function: Cleares foggy visuals for enhanced clarity in adverse weather conditions.

Detailed Camera Specifications for Ikegami ISD-A15S-TDN

TypeCompact Cube Camera
Sensor Type1/3-inch CMOS
Resolution480 TVL (690 HTVL-Effective)
DimensionsW2.05 x H2.05 x D2.16 inches
WeightLightweight design for easy handling
Dynamic RangeHyper WDR for superior contrast
Automatic FeaturesWhite Balance, Sensitivity Control
Focus CapabilityFocus EZ with Level Indicator
Special FeaturesScene File Function, Defog Function
SKU  ISD-A15S-TDN
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    520 TVL
Sensor Option    1/3" CMOS
Lens Type    Not Included
Infrared Distance    Non Infrared
Durability    Indoor, Weather Resistant
Mount Type  Bracket Required
Voltage  12vDC, 24vAC
Image Device    1/3 inch DPS CMOS sensor
Minimum Scene Illumination  0.3 lx/F1.4 (Electronic Sens. Up OFF, VBS Output 50%)
Operating Humidity    30 to 90%
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  52 x 52 x 55 mm (2.05 x 2.05 x 2.16
Power Consumption  2.2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB
Scanning System    NTSC: 525 TVL lines/59.94 Hz, 2:1 Interlaced, PAL: 652 TVL lines /50hz, 2:1 interlaced
Signal System    NTSC/PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Digital Noise Reduction    Built-in, On / OFF selectable (DNR Function)
Automatic White Balance    ATW/ATWex/AWC/MANU, selectable
Auto Gain Control    ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
