Appro CV-7667KW 1/3” SONY IMX138 1.3MP CMOS, 1000 TVL (720p) IR Vandal Dome, 2.8~12mm
SKU
CV-7667KW
Model No
CV-7667KW
$131.23
Product Highlights
- 1/3" SONY IMX138 1.3MP CMOS
- 1000 TVL (720p) High Resolution
- 2.8~12mm Varifocal Lens
- 36 IR LEDs and 100ft IR Range
- IR-Cut Filter
Speak to an expert

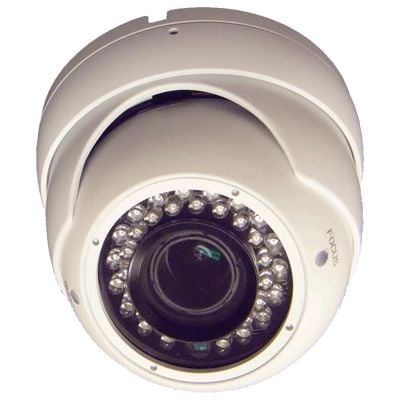

Introducing the Appro CV-7667KW IR Mini Vandal Proof Dome Camera, equipped with a 1/3” SONY IMX138 1.3MP CMOS sensor, delivering high-quality 1000 TVL (720p) resolution. Its versatile 2.8~12mm varifocal lens allows for customizable viewing angles, while 36 IR LEDs provide up to 100ft of night vision. The camera is designed for both wall and ceiling mounting, ensuring flexibility in installation and robustness with an IP66 weatherproof rating.
Appro CV-7667KW Camera Features
- 1/3" SONY IMX138 1.3MP CMOS: High-quality sensor for clear, vibrant imagery.
- 1000 TVL (720p) High Resolution: Superior image clarity for reliable monitoring.
- 2.8~12mm Varifocal Lens: Adjustable focal length for detailed and wide-angle views.
- 36 IR LEDs and 100ft IR Range: Enhanced night vision capabilities for low-light conditions.
- IR-Cut Filter: Provides accurate color reproduction day and night.
- Multi-Axis for Wall or Ceiling Mounting: Flexible installation options to suit various environments.
- Weatherproof: IP66: Durable construction ensures reliable performance in outdoor settings.
- DC 12V: Standard power supply for easy integration into existing systems.
Detailed Camera Specifications for Appro CV-7667KW
| Sensor | 1/3” SONY IMX138 1.3MP CMOS |
| Resolution | 1000 TVL (720p) |
| Lens Type | 2.8~12mm Varifocal Lens |
| IR LEDs | 36 IR LEDs |
| Infrared Range | Up to 100ft |
| IR-Cut Filter | Yes |
| Mounting Options | Multi-Axis (Wall or Ceiling) |
| Weather Rating | IP66 (Weatherproof) |
| Power Supply | DC 12V |
| Color | White |
SKU  | CV-7667KW |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Appro |
Camera Signal  | Analog |
| Resolution | 1000 TVL |
| Sensor Option | 1/3" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto |
| Image Device | 1/3" SONY IMX138 1.3MP CMOS |
| Image Pixels-Effective | NTSC: 960 (H) X 480 (V) |
| IR Distance | 100ft (30m) |
| Minimum Scene Illumination | 0 Lux / F1.2 (with IR on) |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) |
| Dimensions (W x H) | 4.65" (W) X 3.35" (H), (118mm (W) X 85mm (H)) |
| OSD Menu | Built-in |
| Power Consumption | 500mA |
| Privacy Zone | OFF / ON (8 Areas) |
| S/N Ratio | More than 50dB (AGC OFF) |
| Scanning System | 2:1 Interlaced |
| Signal System | NTSC |
| Video Output | 1.0V p-p Composite output, 75Ω |
| Weatherproof | IP66 |
| Synchronization | Internal Sync. |
| Digital Noise Reduction | 3D Noise Reduction |
| Mirror | ON / OFF |
| Backlight Compensation | ON / OFF / AUTO |
| Automatic White Balance | AWB-PRO / AWB-TEMPORA / AWB-AI / AWB-GW / AWB-CCT |
| IR LEDs | 36 IR LEDs |
| Motion Detection | OFF / ON (4 Areas) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
