Tips on Optimizing Surveillance Camera Placement For Maximum Coverage
Are you looking to get the most out of your surveillance cameras? You’re in the right place! This guide will show you how to optimize camera placement for maximum coverage, safety, and efficiency. From choosing the right spot to understanding angles, we’ve got all the tips and tricks to ensure your cameras give you the best view. Let’s dive right in!

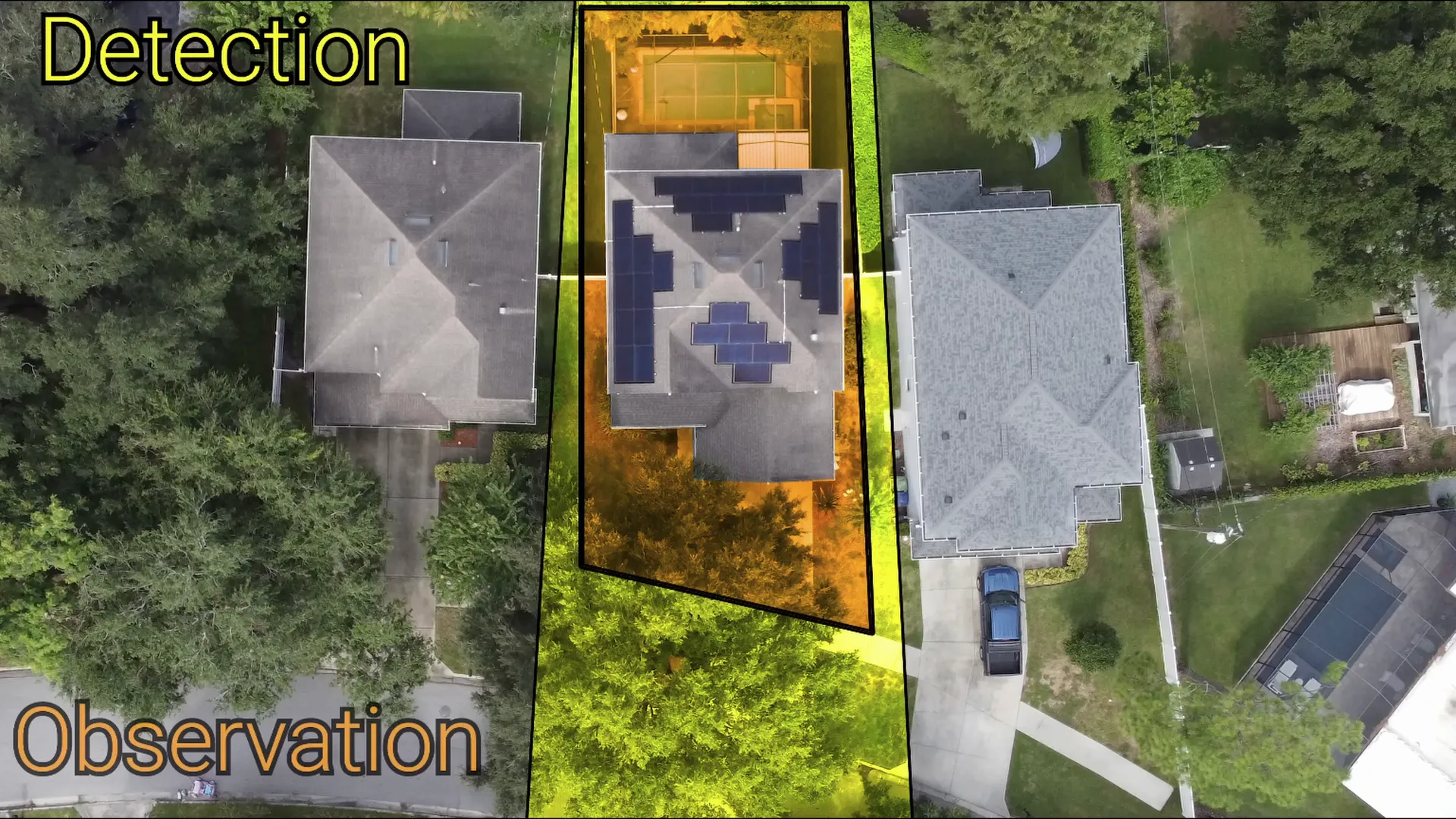

Understanding Coverage Zones
There are three main areas of coverage that we need to define:
- Detection
- Observation
- Recognition
Let’s break these down:
The largest zone is the detection zone. Within this zone, your camera system should reliably see the presence of a person. However, detailed information about what they are wearing or doing is not needed in this broad area.
The next area is the observation zone. Here, your camera system should be able to detect the color of clothing someone is wearing and understand what the person is doing, giving you a general idea of why they are on the property.
Finally, we have the recognition zone. In this area, you should be able to recognize your friends and family with your camera system. It should also allow you to identify anyone beyond a reasonable doubt.
Camera Mounting Height

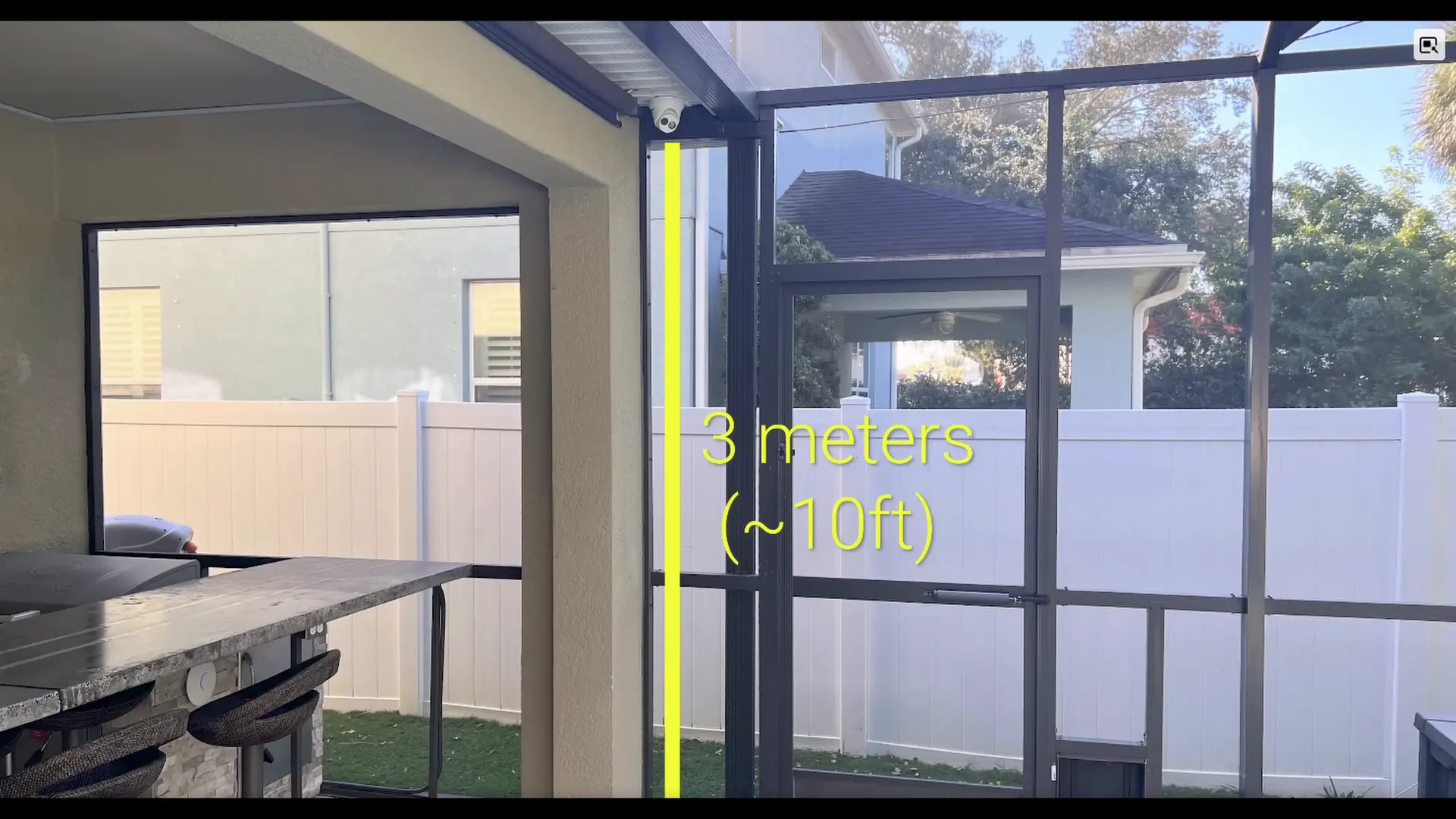

Now that we understand the coverage zones, let’s talk about mounting height. Cameras should not be mounted too low where they can be tampered with, nor too high where you only capture the tops of people’s heads. So, what’s the best height to use? The ideal mounting height is about 8 to 10 feet.
Camera Placement for Detection Zone
For the detection zone, it is best to use a 2.8 mm lens camera. This option provides a much larger field of view but has a very low recognition area. To cover the recording area effectively, use lower field of view cameras, such as 4 mm or 6 mm cameras.

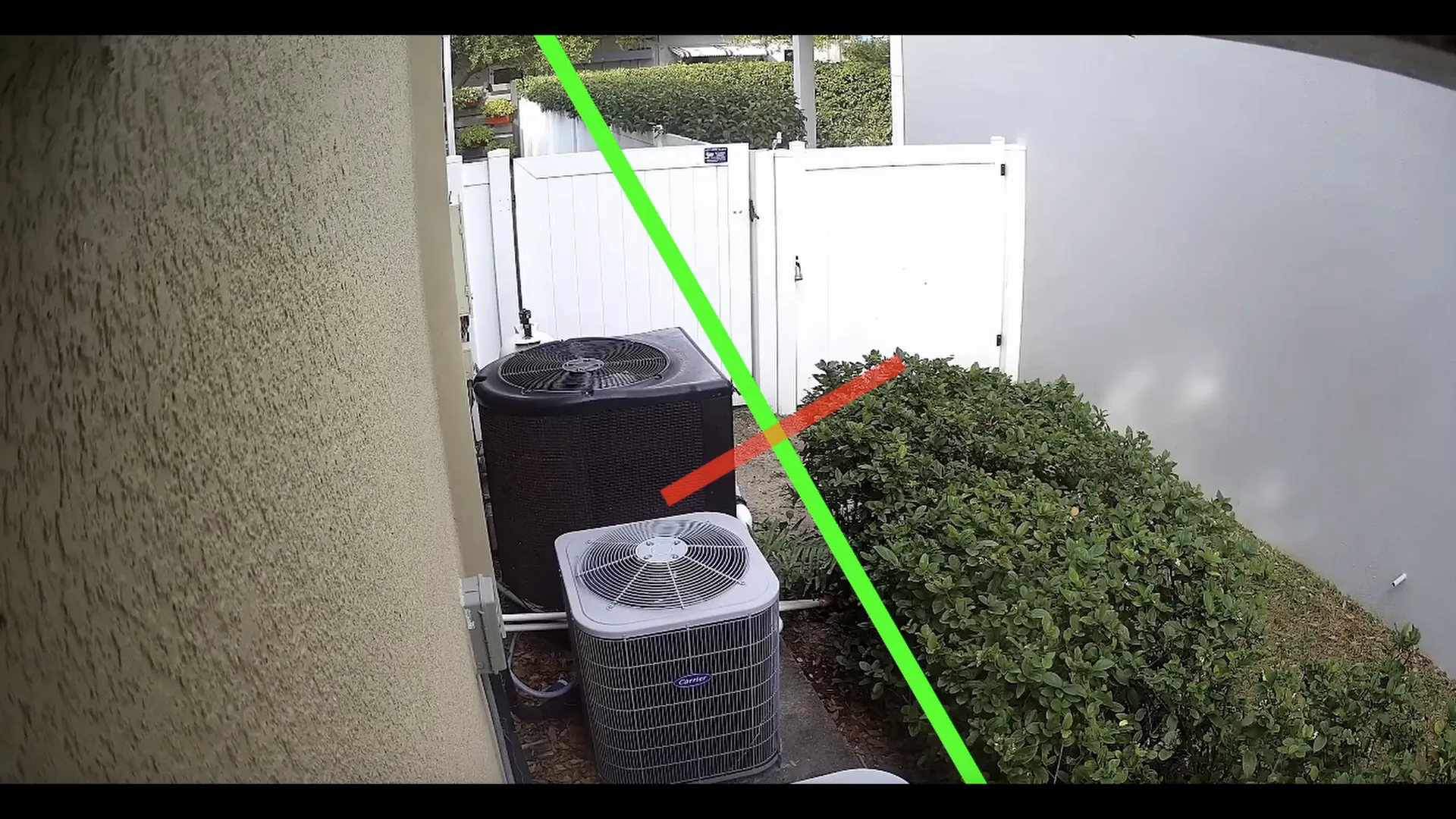

Another helpful tip: too wide of a field of view on the sides of the property can cause you to record walls, creating reflections at night. To cover these areas effectively, consider using a motorized lens.

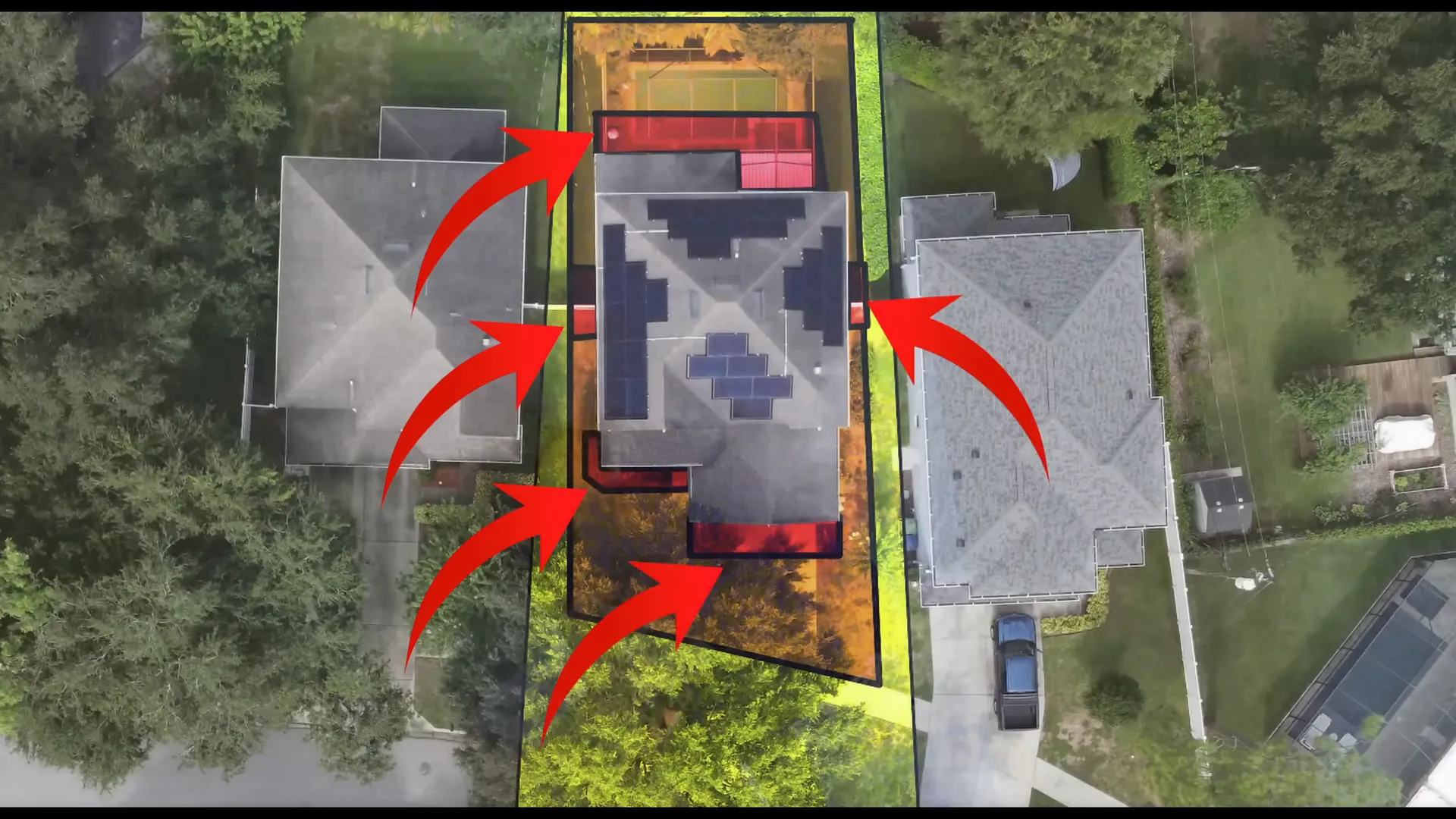

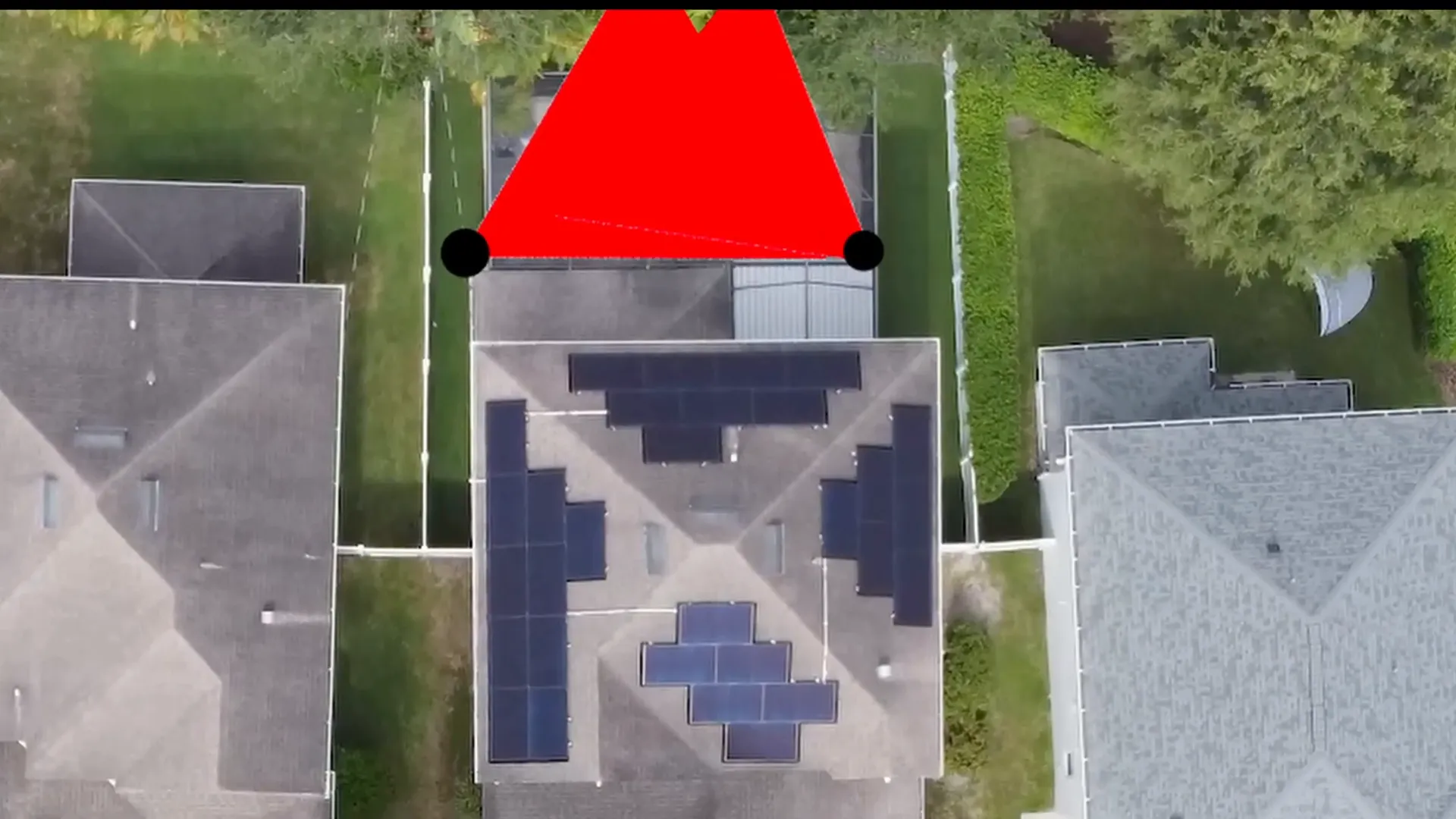

As a final note, make sure to cover the backs of your cameras as well. Installing cameras across from each other can help detect intruders who might try to tamper with them.
Point of View Shots

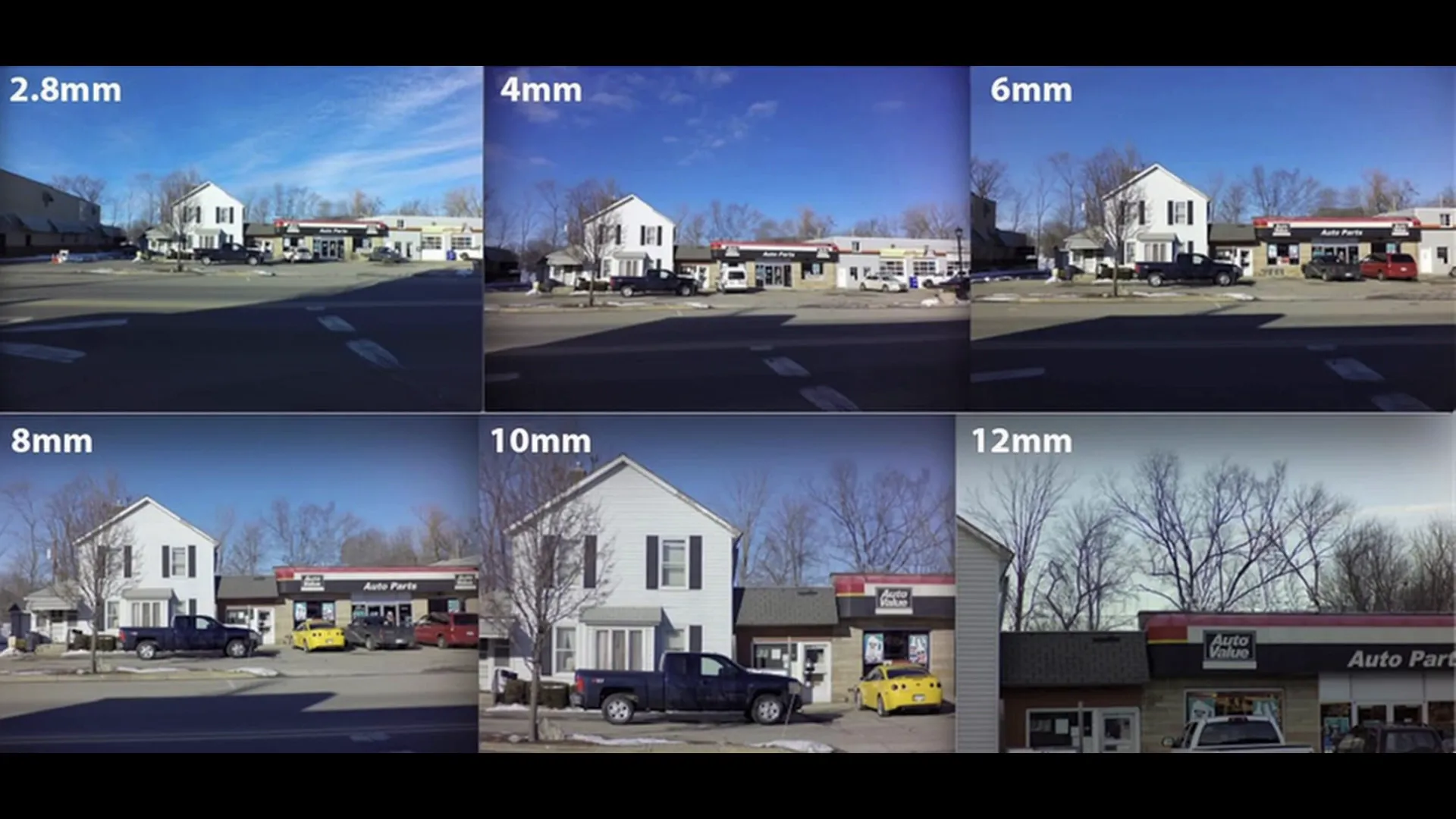

Here are some point of view shots demonstrating how much each lens size will cover. Pause here and check which camera lens would work best for you.
That’s it! Now you’re ready to take on this project. If you need further assistance, don’t hesitate to speak with one of our sales representatives for professional advice. Your surveillance setup is crucial for ensuring safety and security.
Whether you’re setting up cameras for home security, business surveillance, or outdoor monitoring, these tips will help you achieve the best results. Remember, optimizing the placement and configuration of your surveillance cameras can significantly enhance your security coverage.
