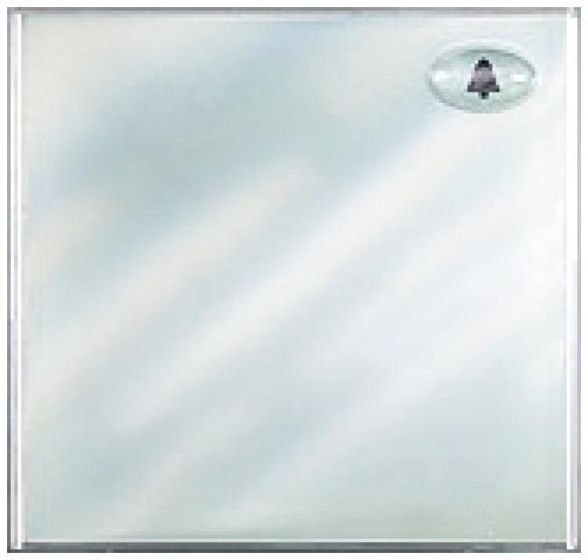

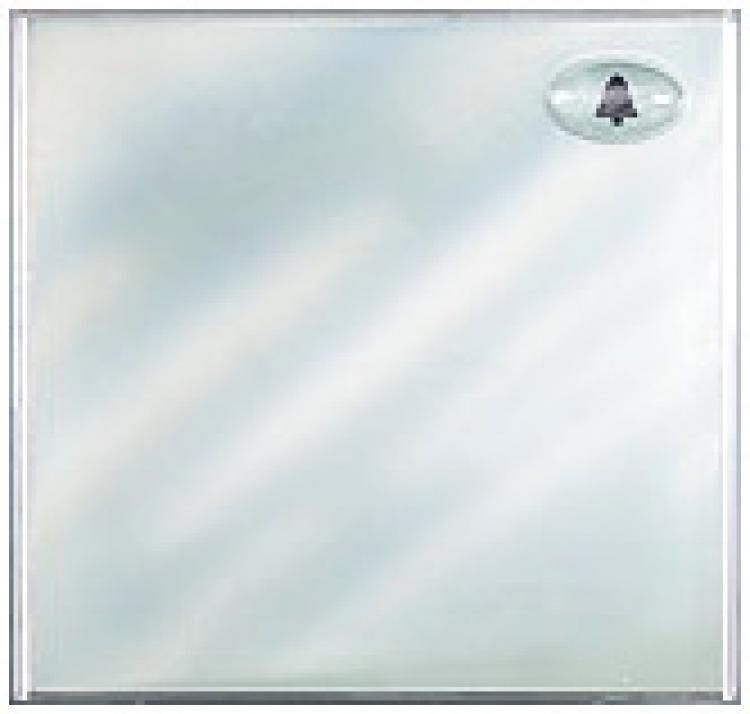

Alpha RTM1BB 1 Pushbutton 2-Wire Bus Module with Built-In L.E.D, Prism Illumination. L.E.D, Operates On 8-12v / 40 MA, Brown

Alpha RTM1BB Pushbutton Module Features

The RTM1BB from Alpha is a push button module designed to be used with the modular series door entry stations. There are four (4) configurations available from one (1) to four (4) push buttons per module. It features LED illumination and a plug-in connector for easy wiring and maintenance. It is 3.94"w x 3.94"h (100mm x 100mm) and is made to snap into the MT series modular panel trim frame(s). To service this module, once installed, use the model 13510 key / tool unit.

• Configurations: Available in one to four push buttons to suit your specific door entry needs.
• LED Illumination: Provides clear visibility in low light conditions, enhancing usability.
• Plug-In Connector: Ensures easy wiring and maintenance, making installation hassle-free.
• Compact Size: With dimensions of 3.94"w x 3.94"h (100mm x 100mm), it fits perfectly in various panel setups.
• Modular Compatibility: Designed to snap into the MT series modular panel trim frame(s) for a sleek finish.
• Service Tool Required: To service this module, use the model 13510 key / tool unit for effective maintenance.

Alpha RTM1BB Detailed Specifications
