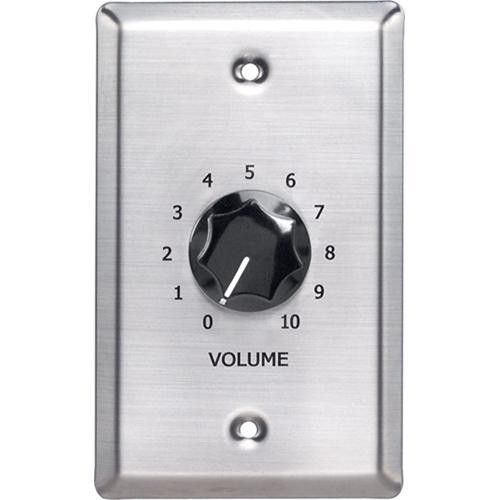

Bogen ATP10 10W Attenuator

Bogen ATP10 10W Attenuator Features

The ATP10 from Bogen is an attenuator regulates audio level over an entire 70V or 25V speaker array, and is capable of handling up to 10W loads (max). The attenuator installs into a Single -gang electrical box, features 10 attenuation levels, and is capable of bypassing attenuation altogether.

Features

• Audio Control: Adjusts loudspeaker output levels on 25V and 70V systems, ensuring optimal sound delivery in various environments.
• Bypass Function: Bypass function allows important and emergency announcements to be heard at the highest level even if local attenuator volume is set low or off, enhancing safety and communication reliability.
• Power Handling: Control up to 10-watt speaker system effectively, making it suitable for both small and mid-sized installations.
• Multiple Settings: 10 attenuation steps and an off setting provide great flexibility in sound management.
• Incremental Control: Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments, allowing precise audio adjustments.
• Easy Installation: Mounts in standard electrical box, single, simplifying setup in existing systems.
• Convenient Wiring: Convenient pluggable screw terminal connections make wiring quick and straightforward.

Bogen ATP10 10W Attenuator Detailed Specifications
