Panavise 203 PV JR. Head
Model No
203
$18.73
Product Highlights
- Fine/coarse adjusting knob controls jaw pressure
- Neoprene Jaw Pads (page 22) are available for holding delicate items
- Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide and open to 2.875" (73mm)
- Height: 3.75" (95.2mm), Weight: 0.4 lbs. (0.2kg)
Speak to an expert

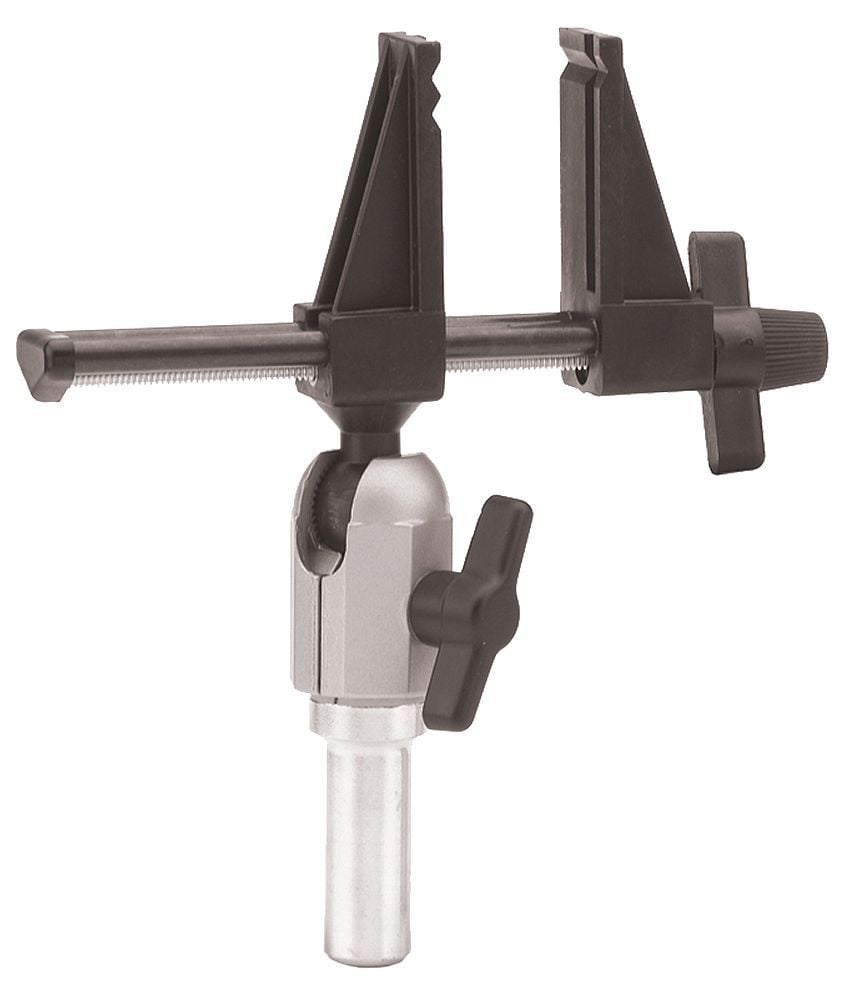

The 203 from PANAVISE is a PV JR. head designed for precision holding of delicate items. With neoprene jaw pads and a fine/coarse adjusting knob to control jaw pressure, this tool is ideal for intricate work. The jaws, made from reinforced thermal composite plastic, feature horizontal grooves that securely grip small tubes, rods, or circuit boards.
PANAVISE 203 PV JR. Head Features
- Fine/Coarse Adjusting Knob: Allows precise control over jaw pressure, making it suitable for delicate tasks.
- Reinforced Thermal Composite Plastic Jaws: Durable and capable of withstanding continuous heat up to 350°F (177°C) and intermittent heat up to 450°F (204°C), providing versatility in various applications.
- Neoprene Jaw Pads: These pads ensure a firm grip on delicate items without causing damage.
- Jaws Dimensions: Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide, and can open to 2.875" (73mm) to accommodate different sizes.
- Compact Design: With a height of 3.75" (95.2mm) and weight of only 0.4 lbs. (0.2kg), it is lightweight and easy to handle.
PANAVISE 203 PV JR. Head Detailed Specifications
| Feature | Details |
|---|---|
| Jaw Material | Reinforced thermal composite plastic |
| Jaw Height | 2" (50.8mm) |
| Jaw Width | 1" (25.4mm) |
| Jaw Opening | 2.875" (73mm) |
| Continuous Heat Tolerance | 350°F (177°C) |
| Intermittent Heat Tolerance | 450°F (204°C) |
| Overall Height | 3.75" (95.2mm) |
| Weight | 0.4 lbs. (0.2kg) |
SKU  | 203 |
|---|---|
| Manufacturer | Panavise |
